SNMP Configuration

SNMP Overview

The Simple Network Management Protocol (SNMP)

is an application layer protocol that facilitates the exchange of

management information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP)
suite. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for
network growth.

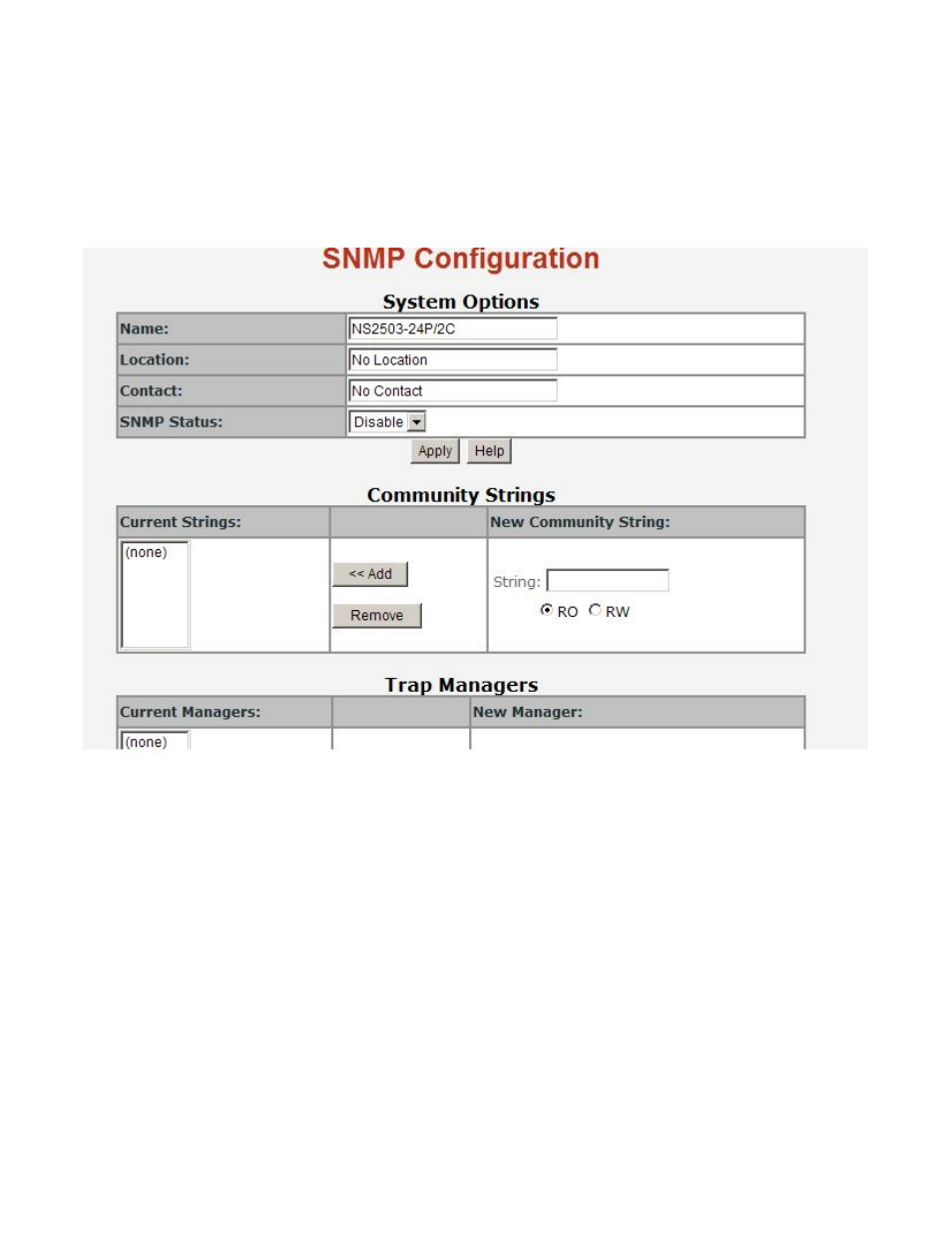

Figure 4-2-5:

SNMP Configuration Interface Screenshot





An SNMP-managed network consists of three key components: Network management stations (NMSs), SNMP agents,
Management information base (MIB) and network-management protocol:

Network management stations (NMSs) : Sometimes called consoles, these devices execute management

applications that monitor and control network elements. Physically, NMSs are usually engineering workstation-caliber
computers with fast CPUs, megapixel color displays, substantial memory, and abundant disk space. At least one NMS
must be present in each managed environment.

Agents:Agents are software modules that reside in network elements. They collect and store management

information such as the number of error packets received by a network element.

Management information base (MIB):A MIB is a collection of managed objects residing in a virtual information store.

Collections of related managed objects are defined in specific MIB modules.

network-management protocol:A management protocol is used to convey management information between

agents and NMSs. SNMP is the Internet community's de facto standard management protocol.

SNMP Operations
SNMP itself is a simple request/response protocol. NMSs can send multiple requests without receiving a response.

Get -- Allows the NMS to retrieve an object instance from the agent.

Set -- Allows the NMS to set values for object instances within an agent.

Trap -- Used by the agent to asynchronously inform the NMS of some event. The SNMPv2 trap message is designed

to replace the SNMPv1 trap message.
