By adding ports to the VLAN you have created one port-based VLAN group completely.

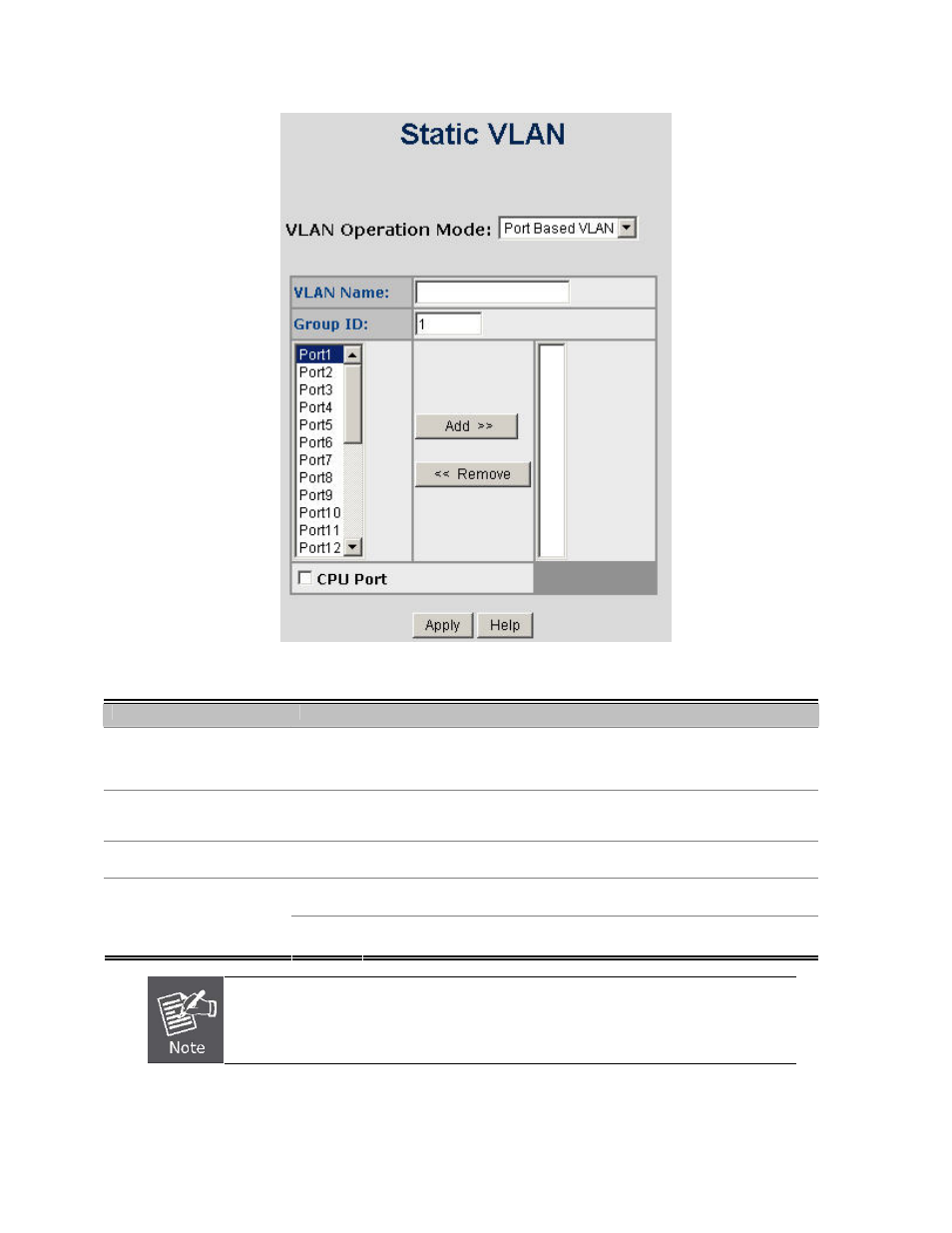

Figure 4-4-3:
Static VLAN Interface Screenshot
The page includes the following fields:
Object
Description
VLAN Name
Use this optional field to specify a name for the VLAN. It can be up to 16
alphanumeric characters long, including blanks.
Group ID
You can configure the ID number of the VLAN by this item. This field is used to add
VLANs one at a time. The VLAN group ID and available range is 2-4094.
Port
Indicate port 1 to port 26.
Add
Defines the interface as a Port-Based member of a VLAN.
Member
Remove
Forbidden ports are not included in the VLAN.
All unselected ports are treated as belonging to another single VLAN. If the port-based
VLAN is enabled, then the VLAN-tagging is ignored.
