- Digital Fiber Sensor FS-N10 Series User's Manual -
3-2

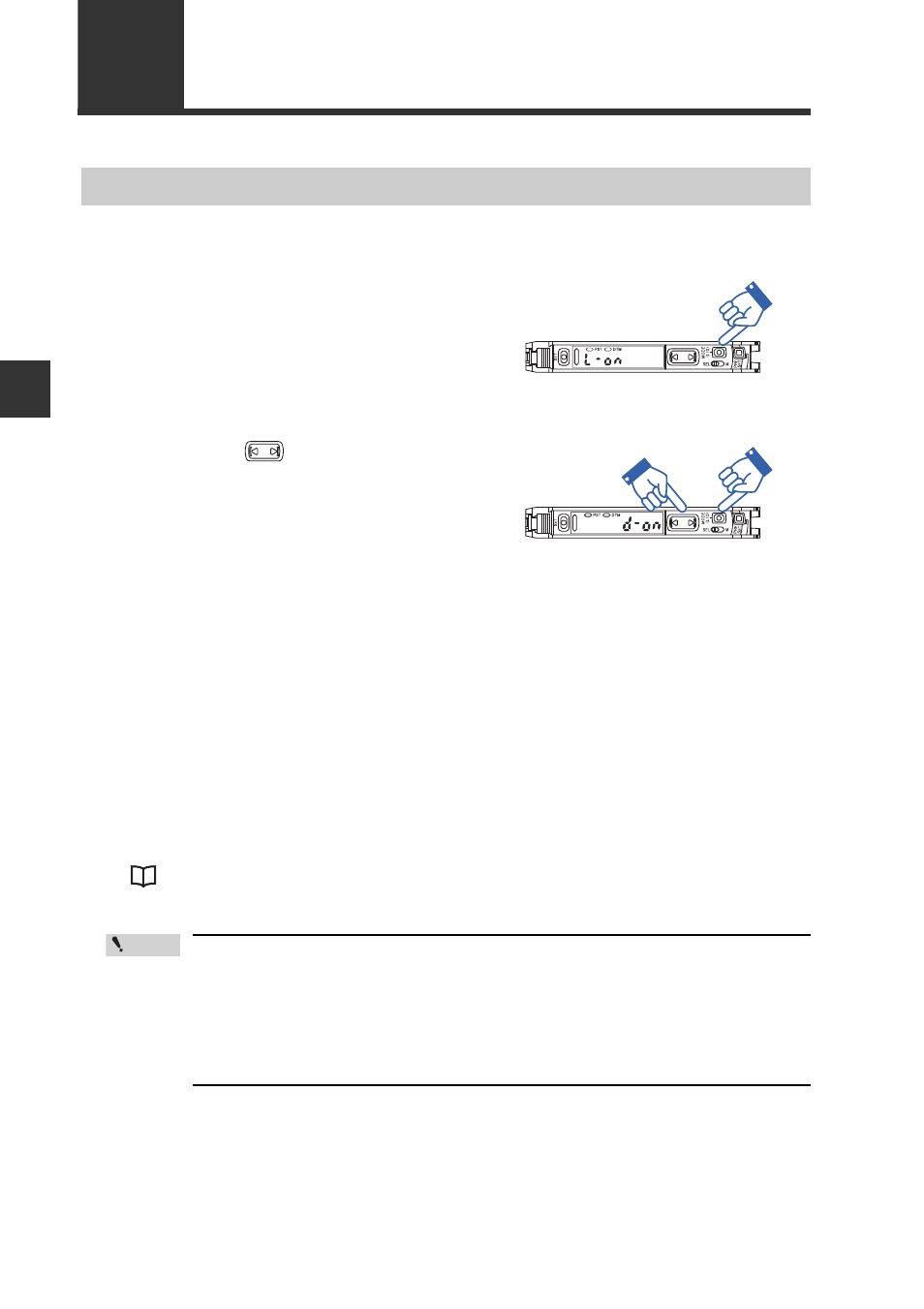

Switching Output
This function configures when the output turns ON.
1
When the current received light inten-
sity is displayed, press the [MODE] but-
ton.
The current output condition (L-on or D-
on) is displayed.
*1
2
Press the button to switch the out-
put condition, and then press the
[MODE] button.
Select " D-on " if you want to output the ON
signal when the beam is blocked (a work-
piece is present.) for a thrubeam or retro-reflective model.
Select "
L-on " if you want to output the ON signal when the beam is received (a
workpiece is present.) for the reflective model.
The output condition is switched, and the current received light intensity is dis-
played.
*2
*1 If you do nothing for 3 seconds or more or press the [MODE] button, the received
light intensity display is automatically restored.
*2 When using the sub-display, the screen will switch between the current received
light intensity

L-on/D-on screen

sub-display

current received light intensity
and so forth each time the [MODE] button is pressed.
"Sub Display" (page 4-23)
• Area detect mode, rising edge detect mode, and falling edge detect
mode are selectable by n.o./n.c.
"Area detection mode" (page 4-14)
"Edge detection mode" (page 4-16)
• When using a 2-output type, output can be individually selected
with channel 1/2.
Output Switch (L-on/D-on)
Point
