KEYENCE FS-N10 Series - Manual (Page 16)

2
Inst
al
la
ti
on and
Conn
ect
ion
2-2
- Digital Fiber Sensor FS-N10 Series User's Manual -
2-1

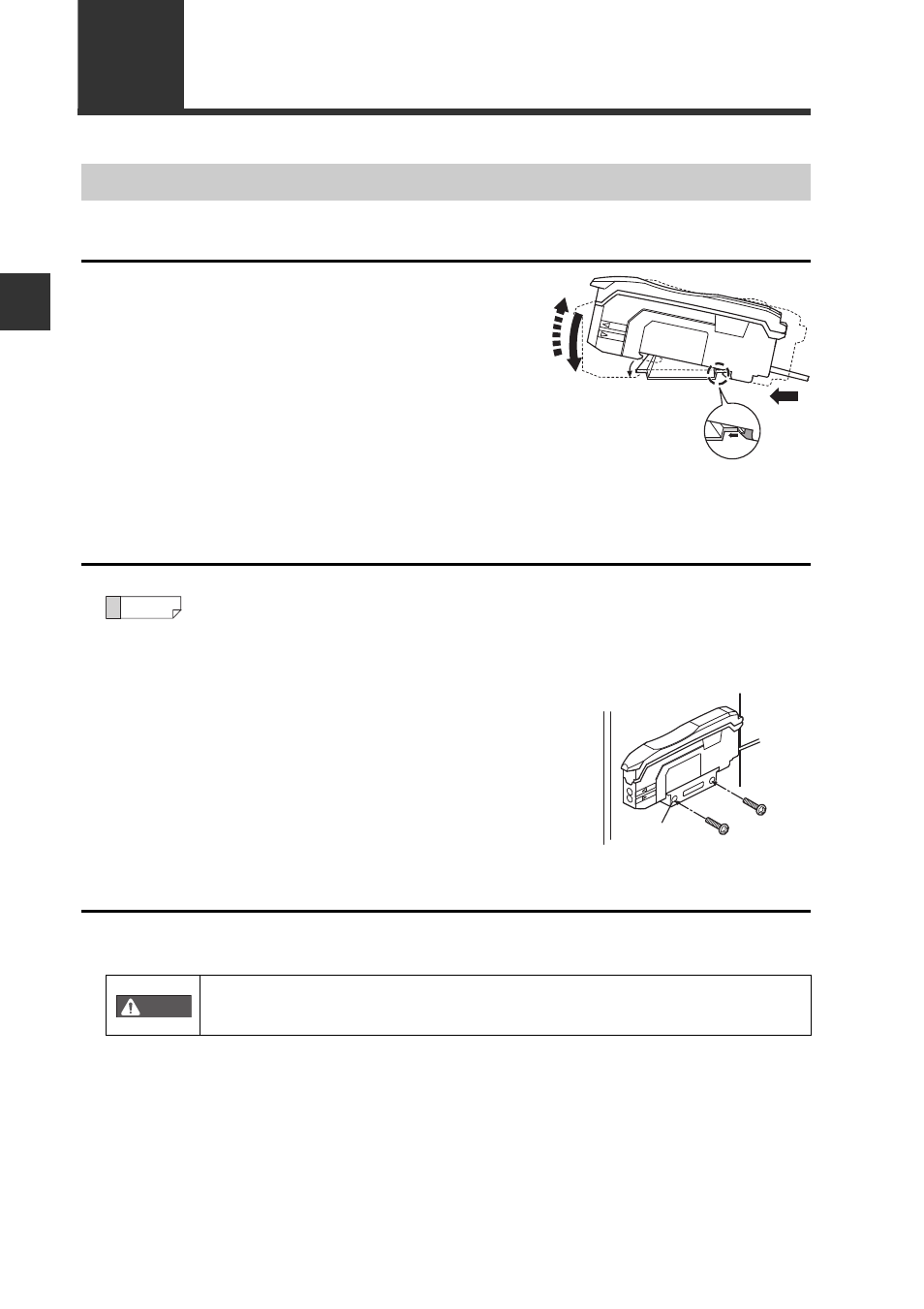

Installing Sensor Amplifiers
Mounting on a DIN rail
1
Align the claw at the bottom of the main
body with the DIN rail, as shown on the
right.
While pushing the main body in the direc-
tion of the arrow (1), push down in the
direction of arrow (2).
2
To release the amplifier, raise the amplifier
body in the direction of arrow (3) while
pushing in the direction of arrow (1).
Installation on a wall
This method applies only when using the main unit independently. If the
main unit is connected with an expansion unit(s), use the method of mount-
ing on a DIN rail.
1
Mount the amplifier on the amplifier mount-
ing bracket (OP-73880, sold separately),
using the same manner as "Mounting on a
DIN rail".
2
Secure the unit with two M3 screws as
shown in the illustration.
Connecting multiple amplifiers
Up to 16 expansion units can be connected to 1 main unit. Note, however, that the
2-output type is considered as 2 expansion units.
Mounting the Sensor Amplifier
(3)
(2)
(1)
Reference
OP-73880
Mount on DIN rail and install on metal surface when connecting
multiple amplifiers or mounting main units together.
WARNING
