2.2 Switch ON and Take Readings

2.2.1 Setting language

This setting can be made at initial use or as requested at any time (see section 11.1)

Press the red ON/OFF button on the left side of gauge and ESC simultaneously to switch on and to

go to initialization menu.

1. A banner appears with a language option.

User arrow keys

↑↓

to go to your requested language option.

Press OK to confirm or ESC to abort.

2. On display appears “Total Reset”. A Total Reset restores factory settings. To abort Total

Reset, press Function key “No” (section 11.1)

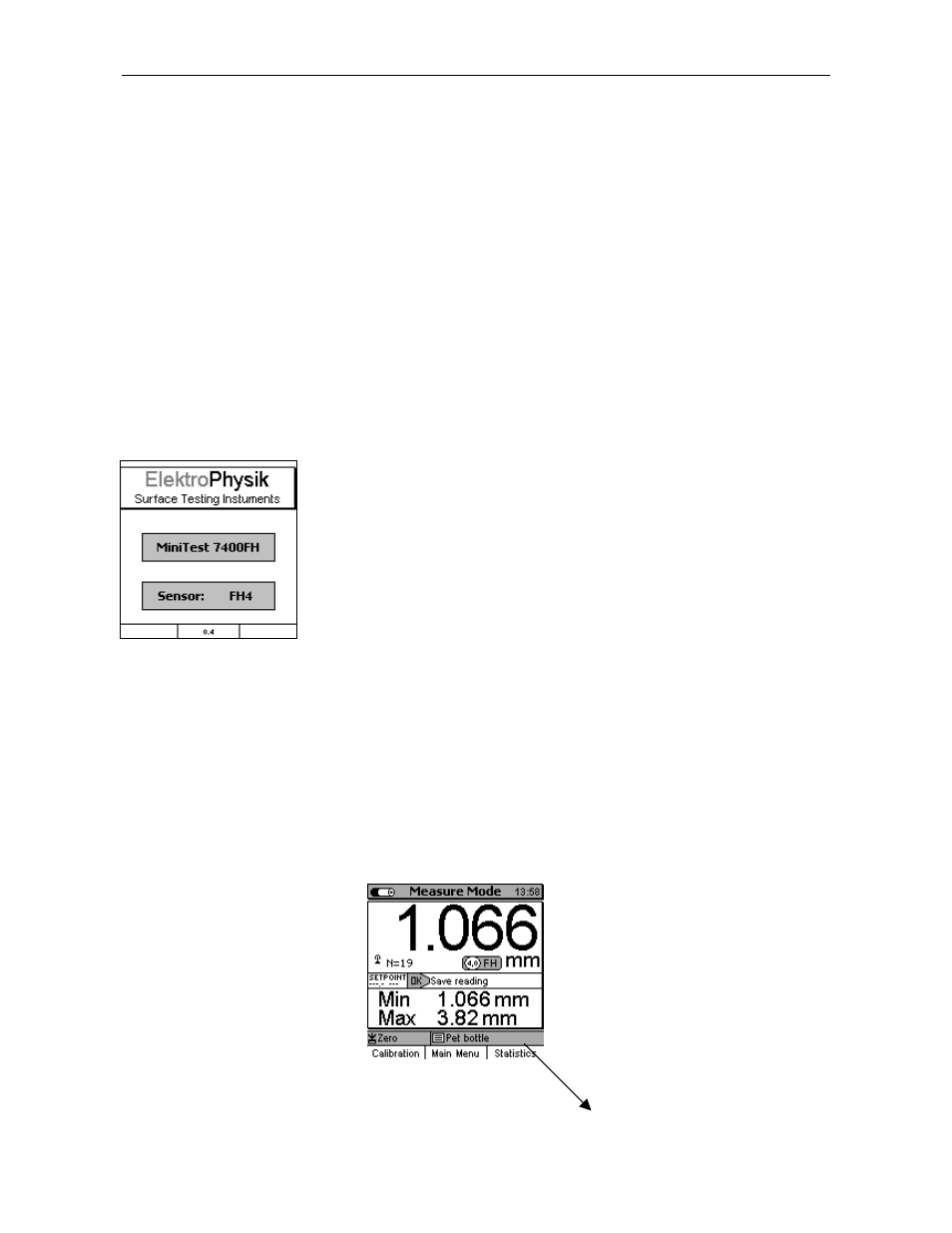

a) Start Screen appears showing company logo, gauge version

and sensor type that is currently connected (see illustr. on the

left.

b) After approx. 2 seconds, the gauge switches automatically into

measure mode and is ready to take readings. The Measure

Screen will appear without any reading being shown.

c) At initial switch-on the gauge is in “Direct Mode“ (see section

7.1.1). For this mode, the factory calibration is preset (for more

detailed information on “Calibration” topics please refer to section

6). The Status Line provides information on the active calibration

method and the active batch (MiniTest 7400 FH) Please check

whether the target ball size as adjusted matches your application

(for more details on target ball size pleaser refer to section 5.2.2

“Target ball size”).

Flashing antenna symbol if sensor is

connected

Selected calibration mode, here:

Zero calibration

Target ball diameter, hiere: 4.0 mm.

Active batch, here: Pet bottle

(only with Minitest 7400 FH)

Status line
