8.1.2 Set Point (Differential Mode)

In quality control, it may be interesting to measure the difference between a set point and the

actual thickness. Once you have specified a set point, the difference between this set point and the

actual thickness will be displayed. A set point must be entered BEFORE storing the first reading. If

you change a preset set point, the stored readings must be deleted previously.

The set point can be set in the “Configuration” submenu. Use arrow keys to go to “Set point” and

enter a value as requested along with the correct measuring system (metric/imperial) via the

alphanumerical input field. See also section 4.4.2 “Alphanumerical Entries”.

Complete your setting by pressing Function key “Ready”. Set point settings can be deleted via the

function key “Delete”.

8.2 Readings

8.2.1 View Readings

From Main Menu go to “Statistics”. Press OK and select “Readings” submenu.

From Measure Menu press function key “Statistics”. Then press function key “Batch” followed by

function key “Readings”.

Use arrow keys to scroll through the batch as requested. Readings will be indicated along with

their current reference number. If spec. limits have been set previously, information is included

whether the readings have been above (>>) or below (<<) the spec. limit.

8.2.2 Delete Single Readings

Erratic readings may be deleted from the list.

Move the cursor to the reading to be deleted.

Press function key “Help/Extra”. Move cursor to “Delete Readings”

and press OK to confirm or press ESC to abort.

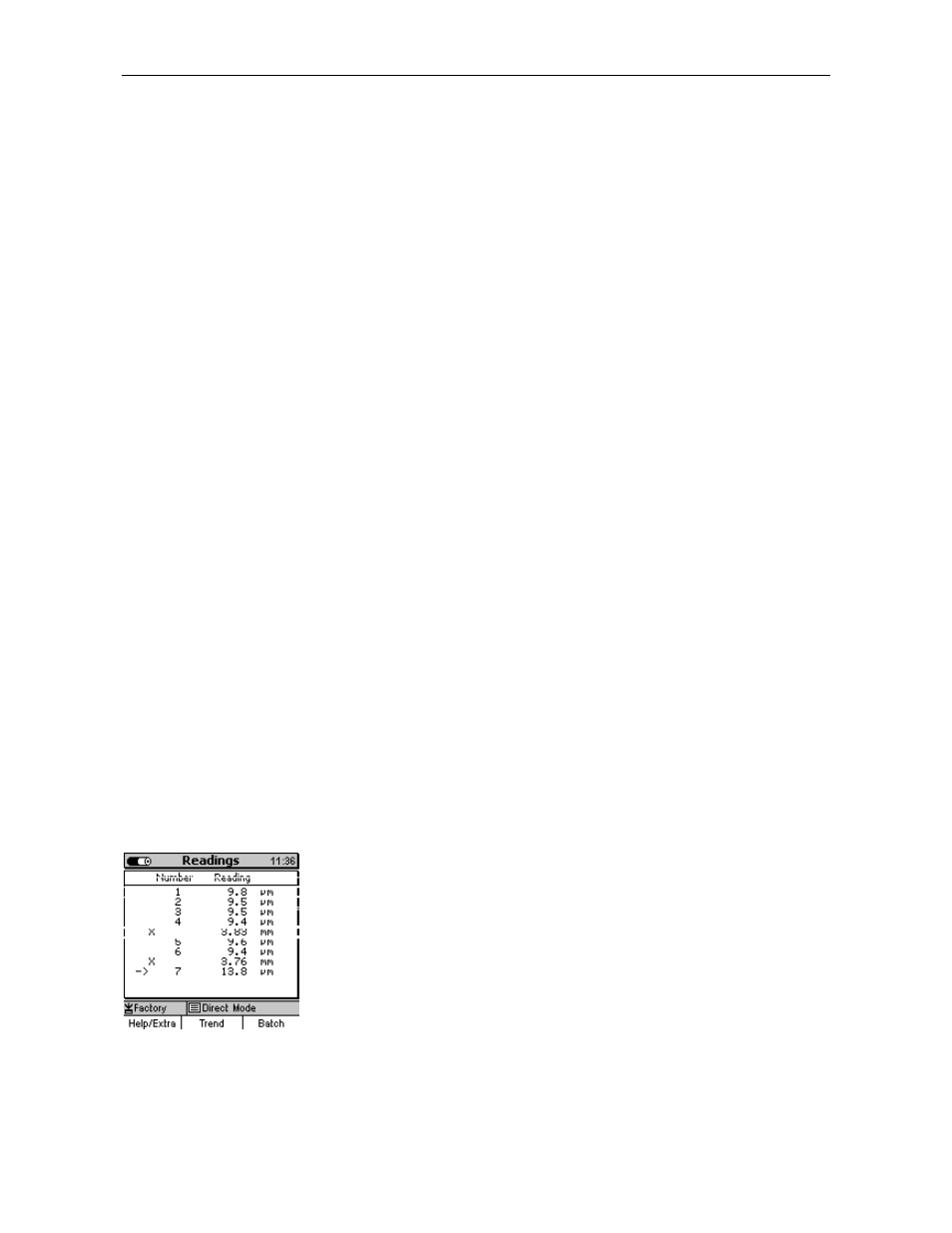

Readings that have been deleted are marked by (X).
