© ElektroPhysik MiniTest 7200 FH / MiniTest 7400 FH 31
7.2 Database of the MiniTest 7400 FH
7.2.1 General Remarks
The database includes numerous features for data management. Measuring batches can be stored
in directories and subdirectories. In total, as many as 500 directories may be created in a
maximum of 5 levels. Directories and batches can be named alphanumerically.
7.2.2 Tree structure

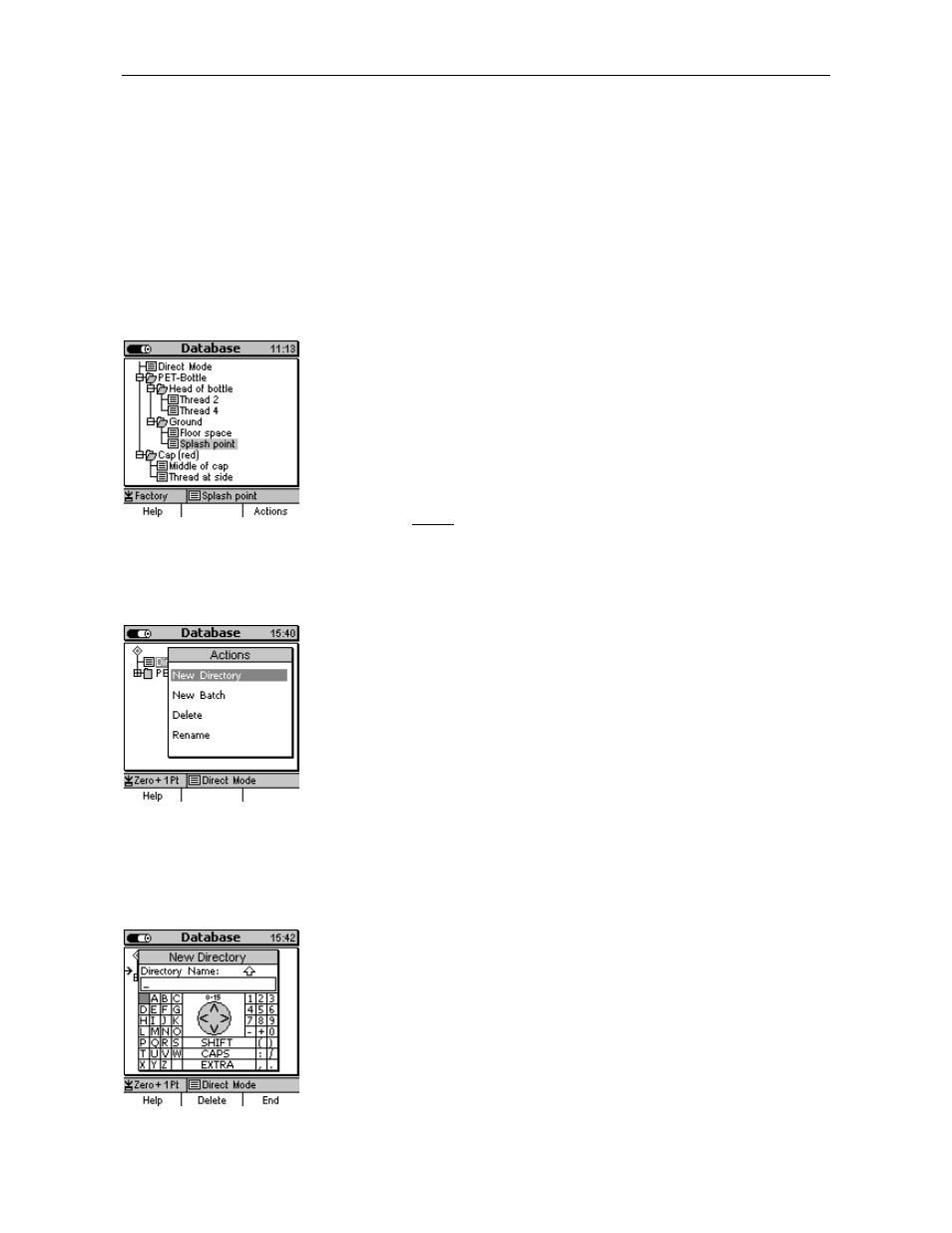

Example for a tree-structured database divided in directories and
batches. At first use of the MiniTest 7400 FH, the database only
includes one batch named “Direct Mode”. You can create other
directories or batches as required.
Note: For creating new directories or batches, make sure to place
the cursor below this Direct Mode directory.
7.2.3 Create a Directory
Press function key “Main Menu”. Then select “Database” and press
OK to confirm.
Use arrow down key of the navigation block to place the cursor
below “Direct mode” or, if other directories have already been
created, to the requested position where a new directory should be
created.
This may be below or between directories or batches. Now press
function key “Actions” and press OK to confirm “New Directory”
which is highlighted.
Enter a name in the alphanumerical input field. For more details,
please refer to section 4.4.3 “Alphanumerical Entries”.
