Checkline FH Series User Manual

Page 32

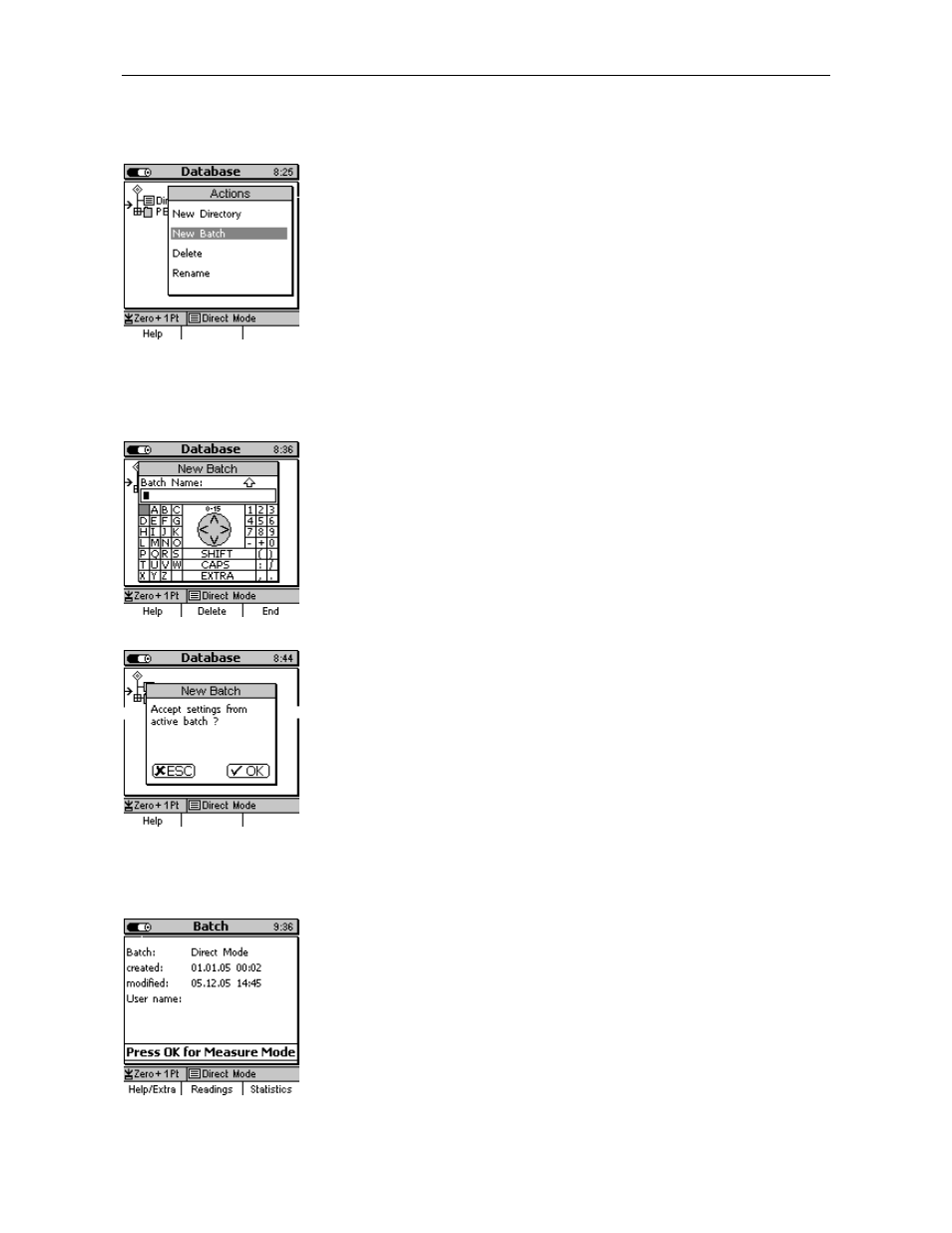

7.2.4 Create a New Batch

From Measure Menu press function key “Main Menu”. Then select

“Database” and press OK. Use arrow down key of the navigation

block to place the cursor below “Direct mode” or, if other directories

have already been created, to the requested position where a new

directory should be created. This may be below or between

directories or batches. Now press function key “Actions” and move

cursor to “New Batch” which is highlighted. Press OK to confirm.

Enter a name in the alphanumerical input field. For more details,

please refer to section 4.4.3 “Alphanumerical Entries”.

After you have entered the batch name, the alphanumerical screen

appears. Now you can enter a user name below the batch name

according to the procedure as described above.

After completion of user name input, the confirmation as shown on

the left appears. If you wish to accept the parameters (calibration

and configuration) as set for the active batch for the new batch to be

created press OK. If you press ESC, preset parameters of the factory

calibration will become valid. Parameter settings can be made in the

“Configuration” submenu. Please refer to section 10.4.3 for more

details.

7.2.5 Select a Batch for Measurement

From Main Menu select “Database”. Use arrow keys to select the

requested batch. Press OK to confirm. The data stored under this

batch appear on display. Press OK to switch to Measure Menu.
