9. Data Output / Data Transfer

Both models, MiniTest 7200 FH and MiniTest 7400 FH are equipped with a bi-directional RS232

interface and an infrared interface (IrDA 1.9). Readings and statistics of a batch can be transferred

to a PC or to the MiniPrint 7000 data printer (available as an option).

9.1 Data Print-Out

Data transfer of readings and statistics to the data printer MiniPrint 7000 is made via the infrared

interface (IrDA 1.0). Before printing out, go to the Main Menu and select “Setup”. Use arrow keys to

move to “Data Output” and press OK to confirm. Use arrow keys to select “Infrared (IrDA)”. For

more details, please refer to section 10.5.4.2.

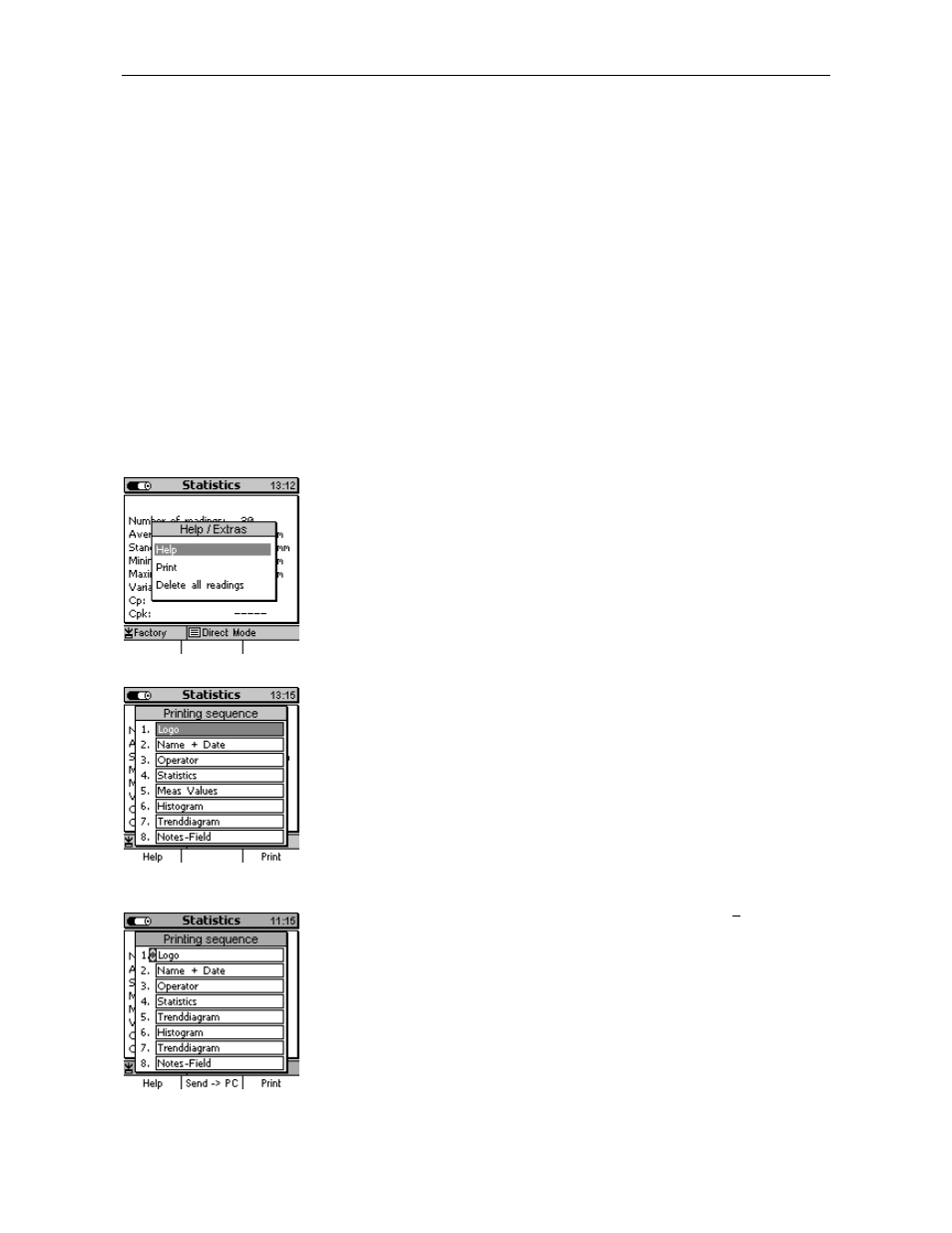

Fig. 1

Fig. 2

Fig. 3

Readings and statistics may be printed out from all statistical views

such as statistics, batch, histogram or trend (MiniTest 7400 FH).

Press “Help/Extra” Function key from your selected statistical view.

The Help/Extra window opens (Fig. 1)

Select “Print” form the list and confirm by “OK”.

A “Printing sequence” menu opens (Fig. 2) Move the cursor to the

first item on the list and press OK. Use arrow keys to make your

selection (Fig. 3). The following options are available:

Logo (Company logo or other customized logo in graphics

format (160x80 Pixel). For inserting such logo, MSoft 7000

software is required.

Name (of batch) / or name (of batch) + date (MiniTest 7400

FH).

Operator (with MiniTest 7200 FH Notes-Field only)

Statistics (number of readings, Average (

) Standard

deviation (s), Min., Max. Variation Coefficient, Cp and Cpk ).

Measuring Values or Measuring Values + Deleted Values

(see also section 8.2.2).

Trend (MiniTest 7400 FH only)

Histogram (MiniTest 7400 FH only)

Notes-Field (space for remarks with 5 lines)

----- (remains empty)
