Checkline FH Series User Manual

Page 28

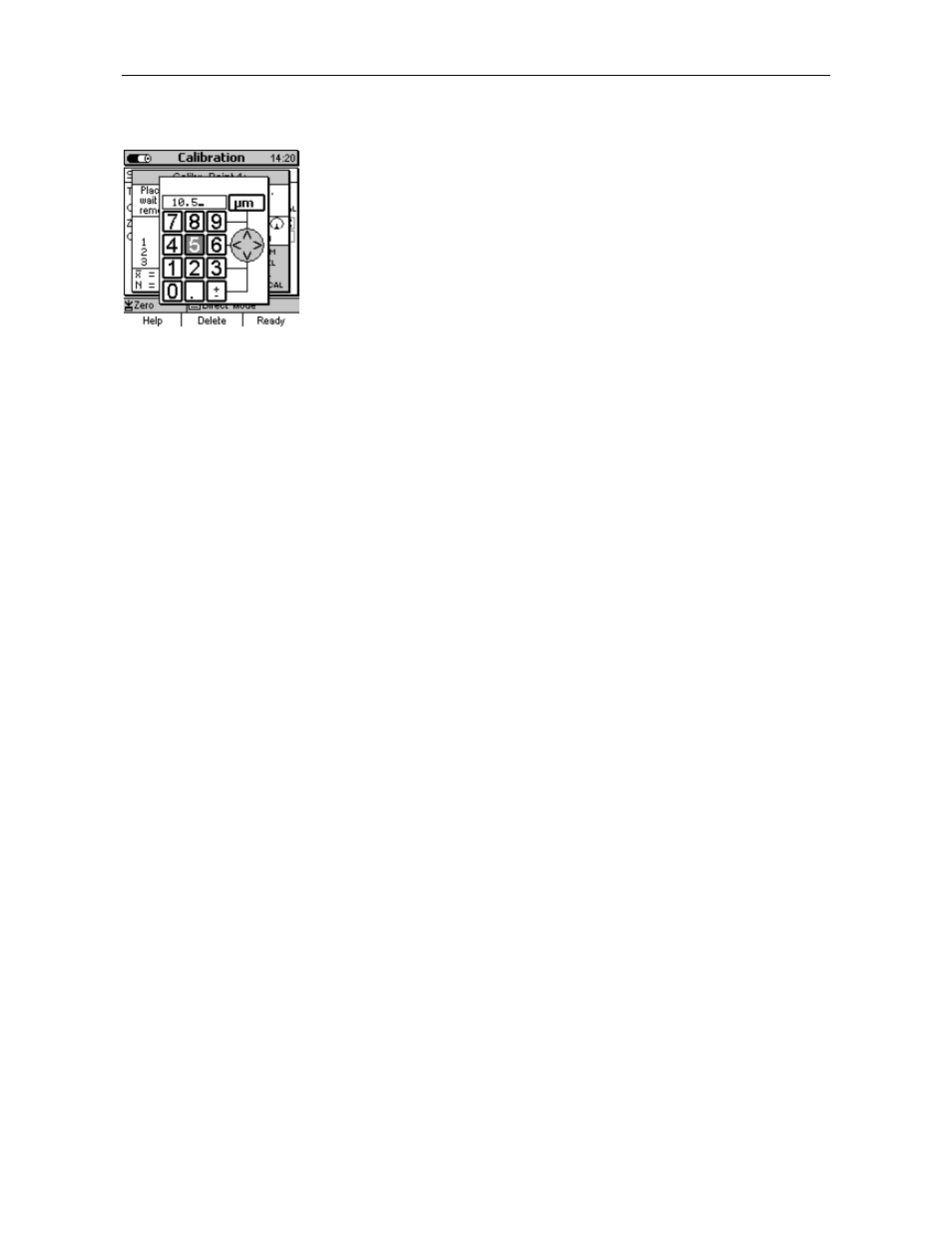

In the alphanumerical input field, you can enter the thickness of the

precision standard along with the unit. ESC and OK assume

navigation functions to the left or right. You can select the requested

character via the numerical block. Your selection will be

automatically accepted after the specified period of time. This period

of time can be specified in the Setup menu. Chose User Preferences

and select “Entry accepted” (see also section 10.5.5). Complete your

entry by pressing Function key “Ready”. To store your setting, press

OK. Then press OK again to quit.

For more calibration points repeat procedure as necessary. The current state of calibration is

indicated in the calibration check box in the calibration menu. Ticked boxes will mark successful

calibration points.

After successful calibration of the last calibration point, the gauge is ready for measurement.

6.4. Delete calibration point

Use arrow keys to move to the calibration point to be deleted.

Press “Delete” Function key and press OK to confirm or ESC to abort. Pressing “Delete” Function

key a second time will remove the (X) from the check box. If you press again “Delete” Function

key, the calibration value will also be deleted.
