4.3.2 Measure Mode –Graphics Screen with MiniTest 7400 FH

For setting the Real-Time Trend display option, select “Active Batch” form the Main Menu. Press

OK to confirm. Select “Configuration” from the Batch Menu and press OK to confirm. Use the arrow

keys to move to the “Graphics” option. ON or OFF is highlighted. Use arrow keys to make your

selection and press OK to confirm or the “ESC” navigation button to restore previous setting and to

go back to the previous menu level.

To take full advantage of the real-time trend it is necessary to tolerance limits (see also section

8.11 „Upper specification limits (USL) and lower specification limits (LSL)“.

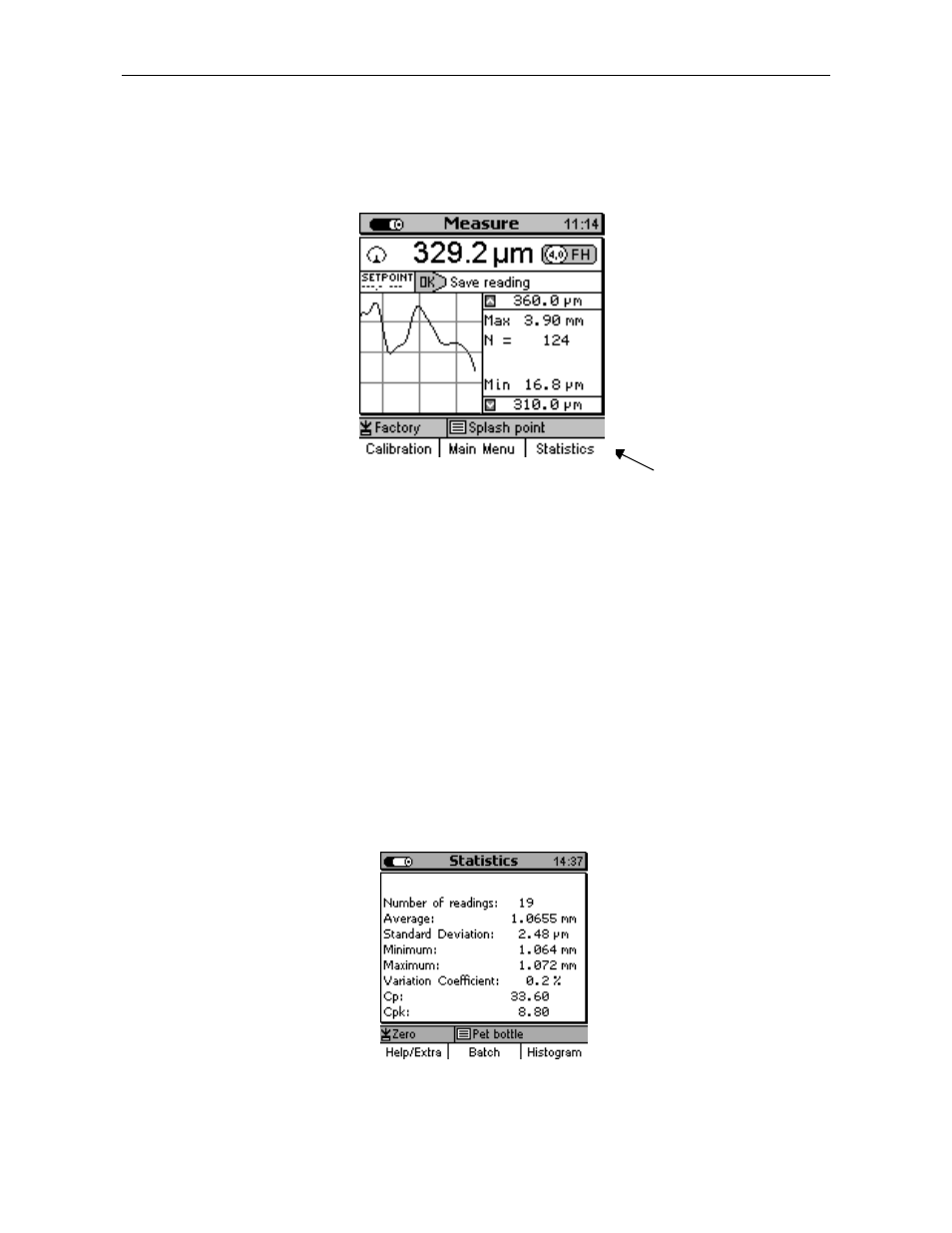

4.3.3 Statistics Screens

Target ball size, measuring unit

DATA LOGGING MODE

Power supply indicator

Time clock

Reading

NAME OF ACTIVE BATCH

⇓

LOWER LIMIT

⇑

UPPER LIMIT

CALIBRATION METHOD

MAX = MAXIMUM READING

MINIMUM READING

N = NUMBER OF READINGS

REAL-TIME TREND

Set point

The current function key proper-ties
are indicated in the line above the
function keys.

STATUS LINE

The current function key proper-ties
are indicated in the line above the
function keys.

Power supply indicator

Time clock

Process capability,

cp and cpk

Selected calibration mode

Active batch
(MiniTest 7400 FH only)
