Appendix g - dv-iii ultra stand assembly – Brookfield DV-III Ultra Rheometer User Manual
Page 122
Brookfield Engineering Laboratories, Inc.
Page 122
Manual No. M98-211-E0912
APPENDIX G - DV-III Ultra Stand Assembly

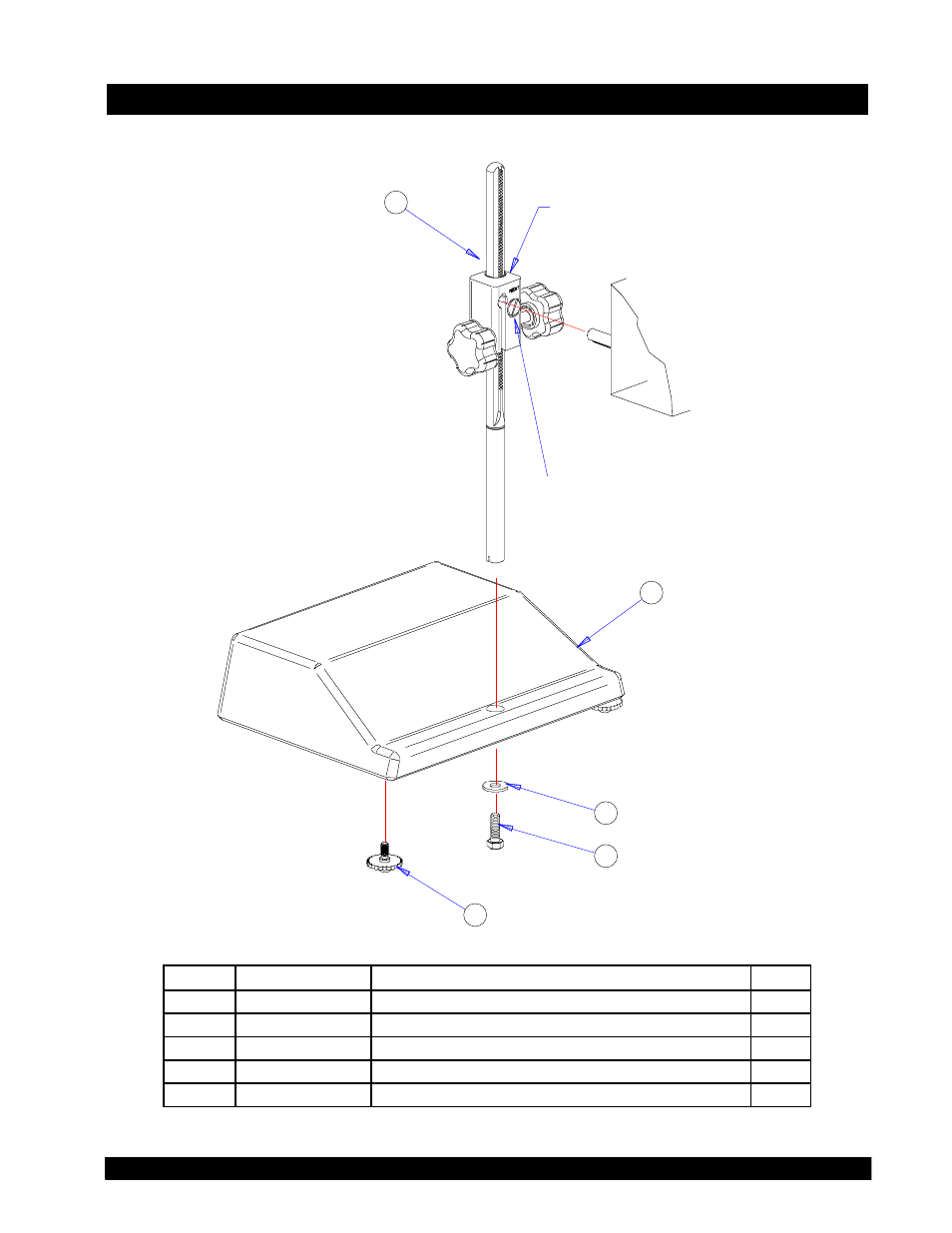

DV-III Ultra Stand Assembly
CLAMP ASSEMBLY
NOTE: “FRONT” FACES TOWARD YOU.
DV-III Ultra
HEAD UNIT
TENSION SCREW
2
1
3
4
5
Item
Part #
Description
Qty
1
VS-CRA-14S
14" UPRIGHT ROD AND CLAMP ASSEMBLY
1
2
DVP-204BY
STAND SUB-ASSEMBLY, DV-III ULTRA, 100-240Vac
1
3
502028071S33B
FLAT WASHER 5/16X7/8X0.71 THK STL BLK OXIDE
1
4
50S311832S01B
SCREW 5/16X1" HEX HEAD GR5 STL BLK OXIDE
1
5
VS-3
LEVELING SCREW
available separately or in assembly above
