50 Appendix A Specifications Welch Allyn Wireless Acuity LT Central Monitoring System
The following table lists all of the wireless Acuity LT System components. All components
have been validated and approved for use within the wireless Acuity LT System.
Except for the printer and UPS, all replacement devices must be ordered from Welch Allyn
to ensure that they meet system performance requirements and are properly configured
as required.

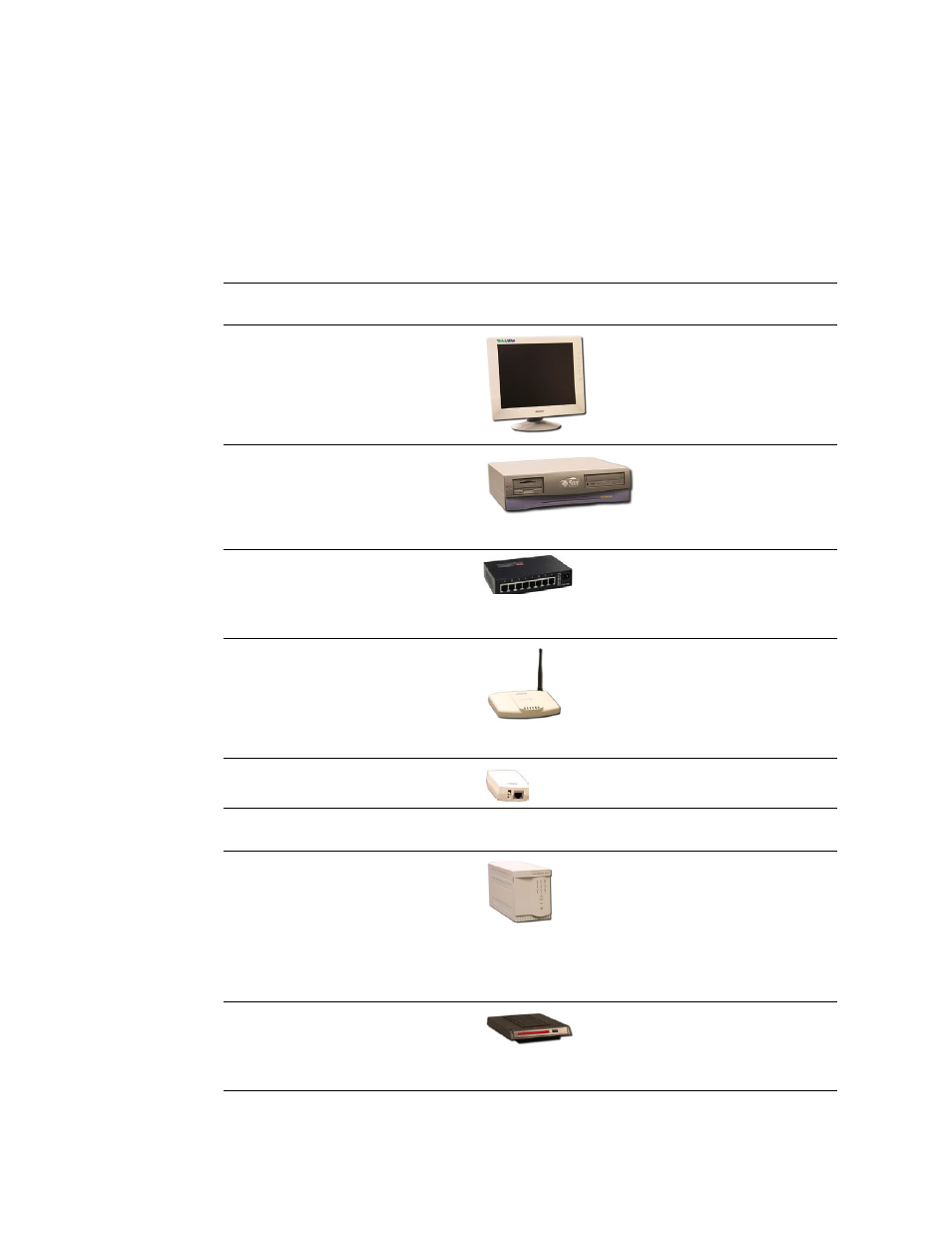

Table 9. Wireless Acuity LT System equipment
Equipment Typical dimensions and power
requirements
a
a. Contact Welch Allyn for current part numbers and model numbers.
Display
•
19 inch viewable display
• Data cable connects to CPU
• Second Display (and data cable) for 28-
patient system
• Audio cable connects to CPU to enable
Display speakers
Width: 17.7 in. (45.0 cm)
Height: 16.7 in. (42.4 cm)
Depth: 9.5 in. (24.2 cm)
Weight: 18.1 lb. (8.3 kg)
Power: 100 to 120/220 to 240
VAC
auto sense
Central Processing Unit (CPU)
Sun Microsystems SunBlade 150
•
Supports required access points and 12-28
wireless patient monitors
• Includes mouse and country-specific
keyboard (trackball with 28-patient system)
Width: 18.0 in. (45.7 cm)
Height: 4.6 in. (11.8 cm)
Depth: 17.6 in. (44.6 cm)
Weight: 26.9 lb. (12.2 kg)
Power: 100 to 120/220 to 240
VAC
8 Port Switch
Milan
•
Supports up to 7 access points
Width: 6.3 in. (16 cm)
Height: 1 in. (2.8 cm)
Depth: 4 in. (10 cm)
Weight: 1 lb. (0.45 kg)
Power: 100-240 VAC
Access points (APs)
Symbol Technologies AP-3020/AP-3021
•
Each AP is uniquely preconfigured and
labeled. APs are factory-configured by
Welch Allyn and are not
interchangeable.
• 2 antennas for each (SD and whip type)
Width: 7.8 in. (19.7 cm)
Height: 1.3 in. (3.2 cm)
Depth: 5.5 in. (15.0 cm)
Weight: 1.0 lb. (0.46 kg)
Power: DC supplied by
power-over-ethernet
devices.
4 power-over-ethernet (PoE) devices
•
2 PoEs for each access point
Power: DC (AC/DC adapter plugs
into UPS)
Parallel printer (model may vary) See printer manual for
specifications
2 uninterruptible power supplies (UPS)
Model may vary outside of the U.S.
Third UPS required for 4-7 APs.
•
Each provides temporary power for up to 4
devices
• Typical run time 5 min. at max. load
• 28-patient system requires larger capacity
UPS (minimum 750 VA) for the nurses
station location to support the displays
Power: 100 to 120/220 to 240
VAC
Modem
US Robotics
Model may vary outside of the U.S.
•
Connects to CPU to enable access by
remote technical support.
Power: DC (AC/DC adapter plugs
into UPS)
