Installation Guide Chapter 4 Install the system 21
SWITCH
Port 1 - AP1
Port 2 - AP2
(Ports 3-7 - APs 3-7)
Port 8 - CPU
AP2 AP1
PoE
CPU
PRINTER
(model might vary)
Do not plug the printer
into a UPS. Plug it
directly into an ac
outlet.
SD ANTENNA

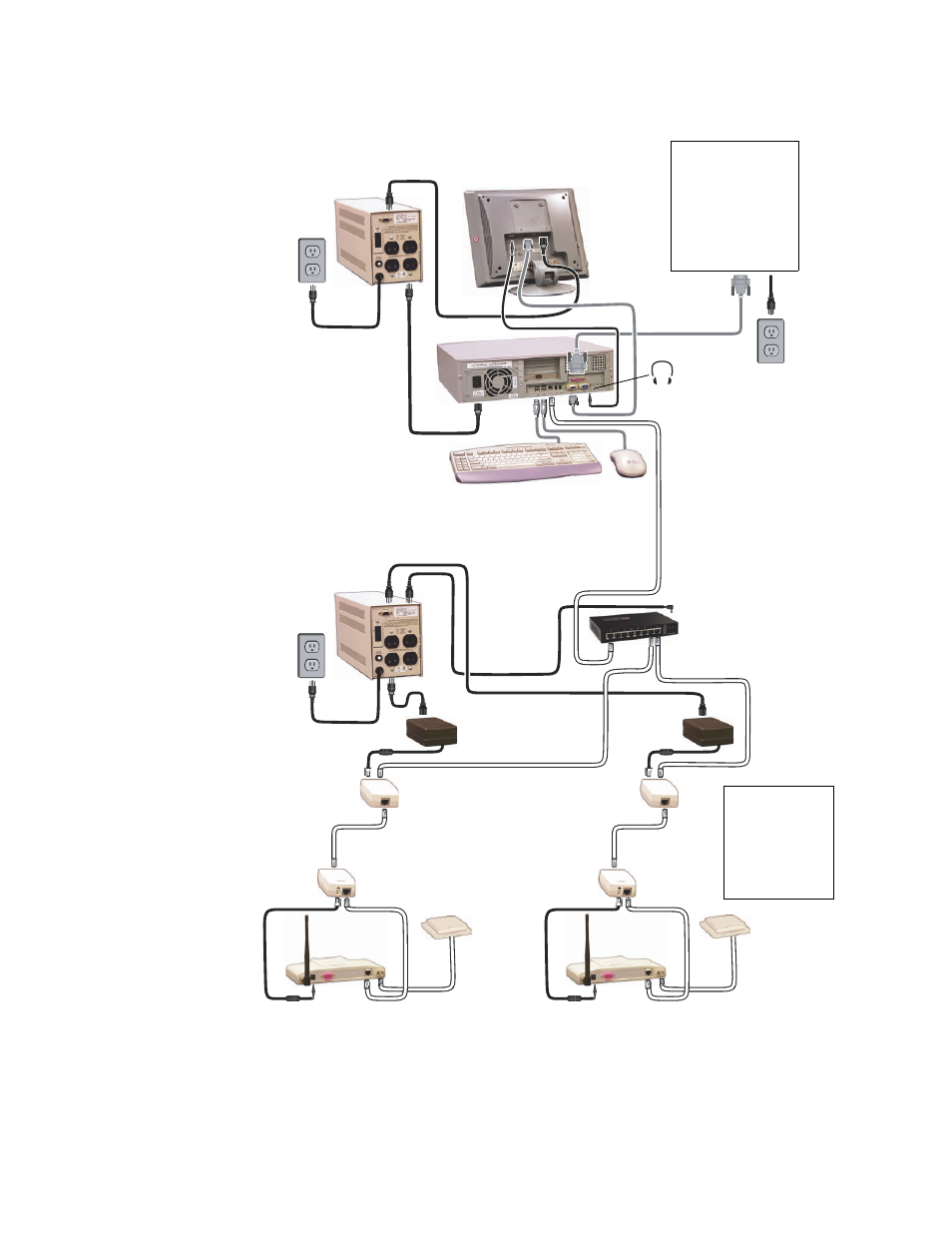

Preliminary wiring connections for the wireless Acuity LT System
UPS 1
Do not plug UPS 1
into ac power until
instructed on
page 22 .
UPS 2
Do not plug UPS 2
into AC power until
instructed on
page 22 .
PoE POWER SUPPLY
DISPLAY
Connect video to analog HD-15 connector.
For systems with
more than 2 APs
add as appropriate:
•
Additional APs
• PoEs, power
adapters, cords
PoE
