38 Chapter 4 Install the system Welch Allyn Wireless Acuity LT Central Monitoring System
To measure RSSI values throughout the Acuity LT System
1. Refer to this example of a completed RSSI measurement chart.

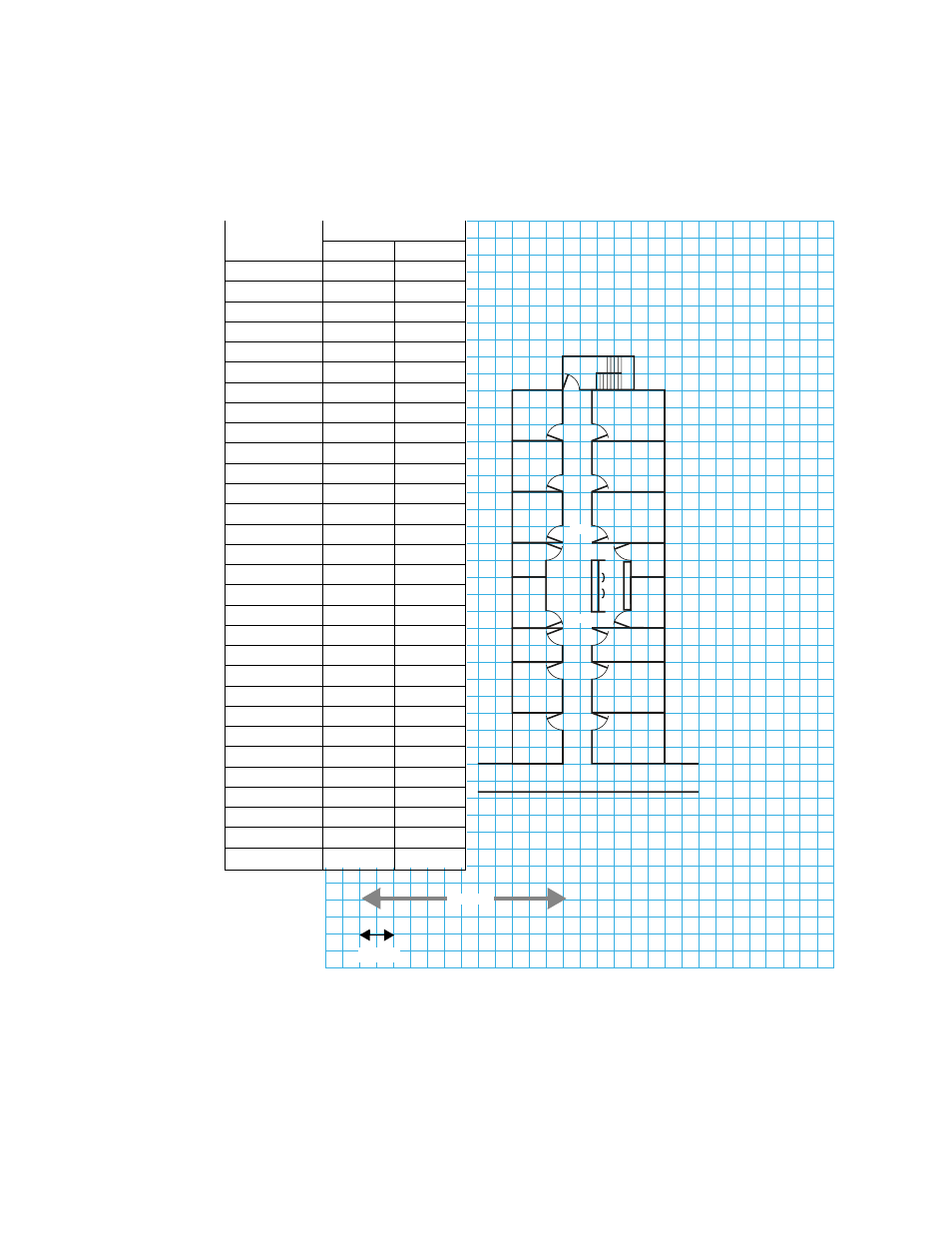

Sample RSSI measurement chart
60 ft.
Room number/
location RSSI
Room Bathroom
Stairway 45
Hall N. 38
121 42 44
119 39 41
117 38 38
122 43 44
120 42 42
118 37 38
E1 37
E2 37
E3 38
E4 38
115 39 39
113 39 41
111 42 42
116 39 39
114 39 39
112 42 42
Hall S. 38
Hall West 43
Hall East 42
AP
AP
10 feet
Hall West Hall East
Stairway
121 Hall 122
N.
119 120
117 118
E1 E3
E2 E4
115 116
113 114
111 112
