Installation Guide Chapter 4 Install the system 37
4. Access the monitor’s Network Status screen to examine the monitor’s RSSI.
For a Micropaq monitor
a. From the monitoring screen, press to access the Main Menu.
b. Press to highlight SYSTEM INFORMATION, and then press to display
the System Information menu.
c. Press twice to highlight NETWORK STATUS, and then press .
d. Read the RSSI value listed in the screen.
The value is updated every 10 seconds.
For a Propaq LTR monitor
a. From the main display, highlight SpO2 and press .
b. Highlight Setup and press .
c. Highlight Service and press .
d. Highlight Radio, and then highlight Show Info and press .
e. Read the RSSI value shown on the screen.
The Net name must match the network name on the left panel of the Acuity LT
System CPU.
For a wireless Propaq CS monitor
a. From the Main Menu press SETUP, MORE, MORE, SERVICE, YES, MORE,
MORE, and RADIO STATUS.
b. Read the RSSI value shown on the screen.
This network name must match the network
name on the left panel of the Acuity LT
System CPU.

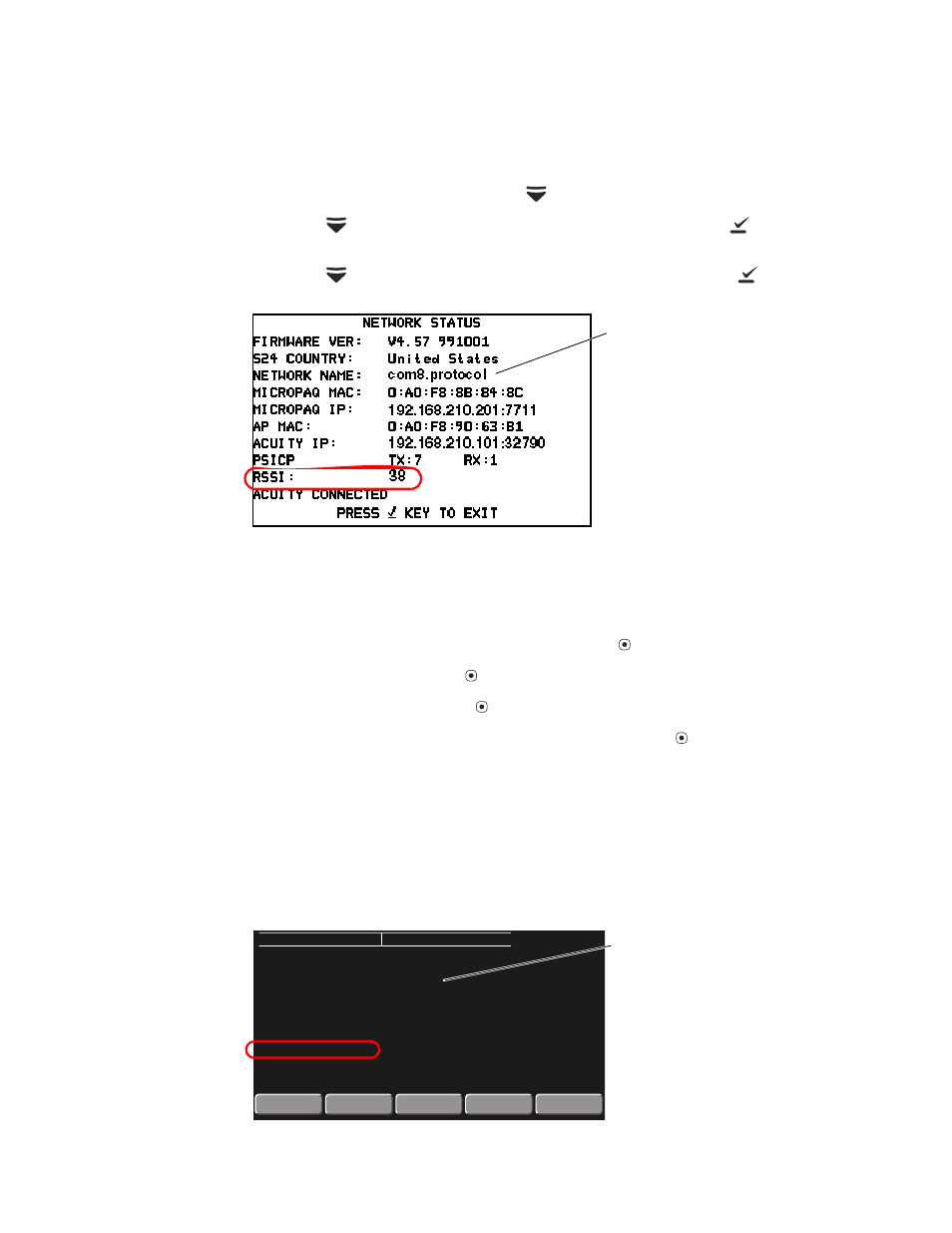

NETWORK STATUS
NETWORK
MONITOR
PREVIOUS
MENU
BATTERY: 9.2 VOLTS
FIRMWARE VER:
S24 COUNTRY:
NET NAME:
MONITOR MAC:
MONITOR IP:
AP MAC:
ACUITY IP:
PSICP
RSSI:
ACUITY CONNECTED
V4.57 991001
INTERNATIONAL MODE 0
com8.protocol
12:34:56:78:90:12
192.168.210.201:7711
12:34:56:78:90:12
192.168.210.101:32790
RX: 40 TX: 158
38
This network name must match the
network name on the left panel of the CPU.
