30 Chapter 4 Install the system Welch Allyn Wireless Acuity LT Central Monitoring System
AP2 AP1
PoE
PoE
CPU
SD ANTENNA

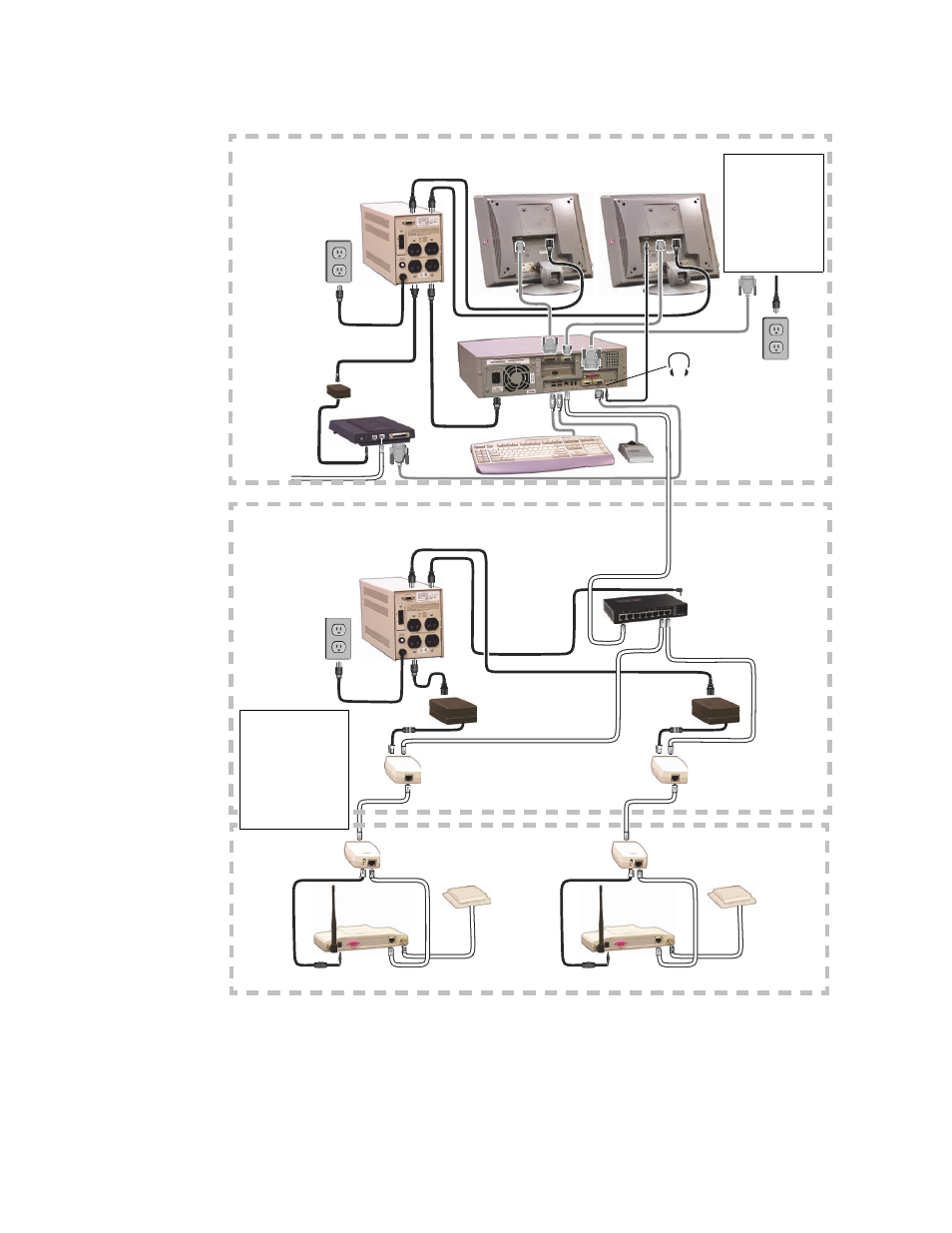

Final wiring connections for the wireless Acuity LT System (28 patients)
UPS 1
(500 VA)
Do not plug
UPS 1 into ac
power until final
system check
UPS 2
(750 VA)
Do not plug UPS 2 into
AC power until final
system check
PoE POWER SUPPLY
Ha
llw
ay
N
u
rses
sta
tion
Equ
ipment closet
(c
los
e
t is
o
p
tion
a
l)
MODEM
To analog
phone
line
SWITCH
Port 1 - AP1
Port 2 - AP2
Ports 3-7 (AP3-AP7)
Port 8 - CPU
PRINTER
(model might vary)
Do not plug the
printer into a UPS.
Plug it directly into
an ac outlet.
RIGHT-SIDE DISPLAY
Connect video to digital
DVI connector.
For systems with
4-7 APs, add as
appropriate:
•
UPS (500 VA)
• PoEs, power
adapters, cords
and cables.
LEFT-SIDE DISPLAY
Connect video to analog
HD-15 connector.
