Trends
Welch Allyn Propaq Encore Vital Signs Monitor
The following is programmable: which trend window comes up first. The NIBP trend
window is the factory default.
To clear trend data before connecting a new patient, the monitor power must be cycled.
This will prevent the trend data of a previous patient from being attributed to the new
patient.
NIBP trends
A maximum of 128 NIBP readings are collected (up to 8 hours). NIBP is not measured
continuously like other vital sign parameters. The numerics on this trend are captured at
the time of the NIBP reading.
If an error number (ERR# x) is listed in an NIBP TREND printout or display, it indicates that
an NIBP equipment alert occurred. See
“NIBP messages”
on page 48 for NIBP alert error
numbers and definitions.
Displaying trends
Displayed trends show the last five hours of data. Trends are displayed if you are at the
main menu and have only one waveform turned on in the wave selection window. Trends
are also displayed when you press the TRENDS button in the first Setup Menu.
Selecting a trend (NXT TRND)

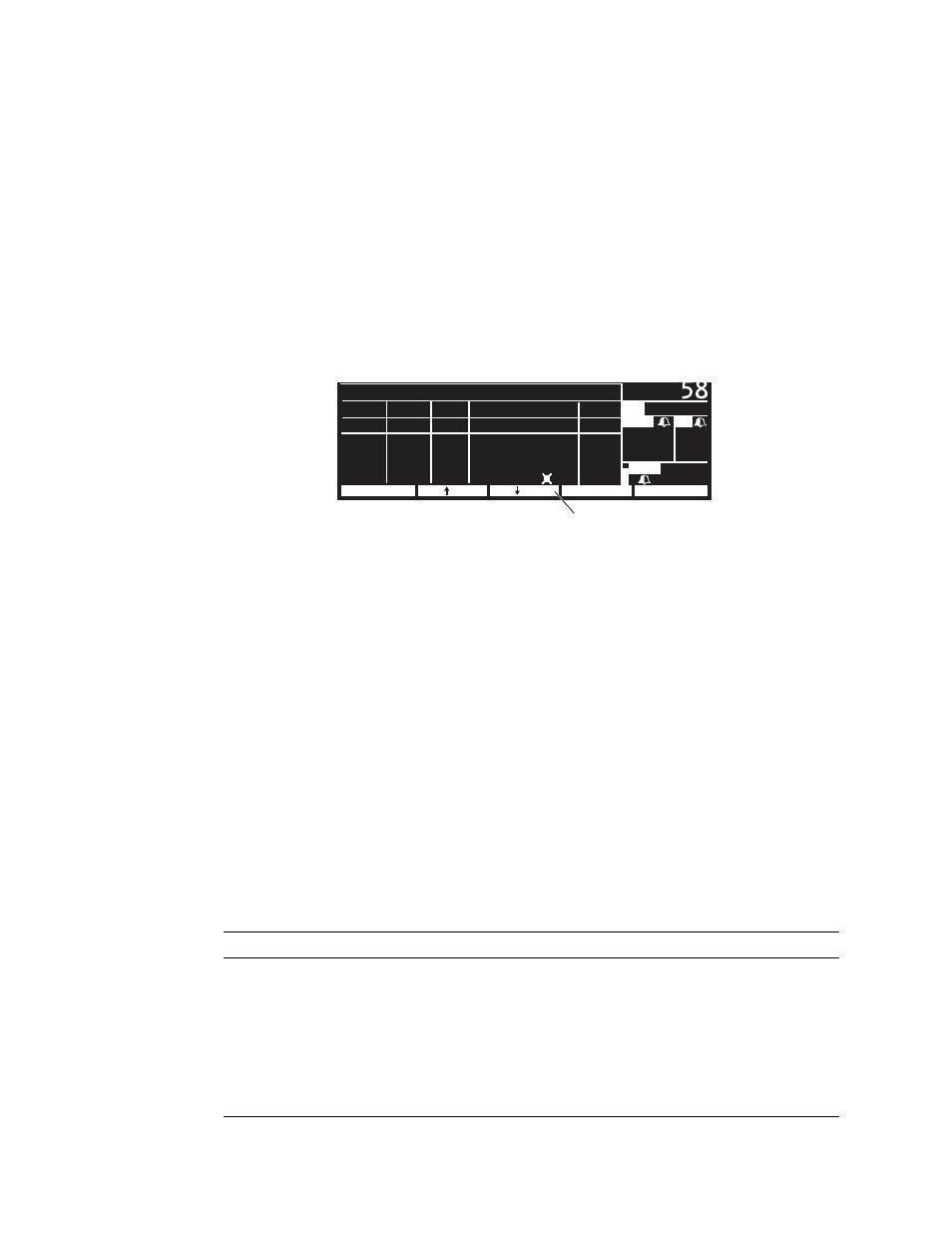

Select the trend you want displayed by pressing the NXT TRND button. The trend is
identified by a label at the top of the table.
mmHg
MCO
2
BR
SpO
2
35/ 18
( 85)
35 12
92
OXYCRG
NXT TRND
NIBP TREND
TIME
BR
SYS/DIA-MEAN
HR/PR
BPM
Br/M
HH:MM
10:01
9:46
9:31
9:20
98
SRCH
OFF
100
101
88
93
91
11
10
5
11
139/ 74 106
142/ 83 110
145/ 87 112
126/ 85 91
SpO2
%
mmHg
PA
This symbol indicates that the NIBP reading was taken in
the presence of high motion artifact while monitoring
ECG. Artifact can affect accuracy. To help reduce artifact,
see
When the SEARCH message appears in an NIBP TREND
display or printout, it indicates that the monitor was not
able to complete an NIBP measurement during that
period.
P1 TREND
P2 TREND
NIBP TREND
RESP TREND
TEMP TREND
