Reference Guide
Getting started
15

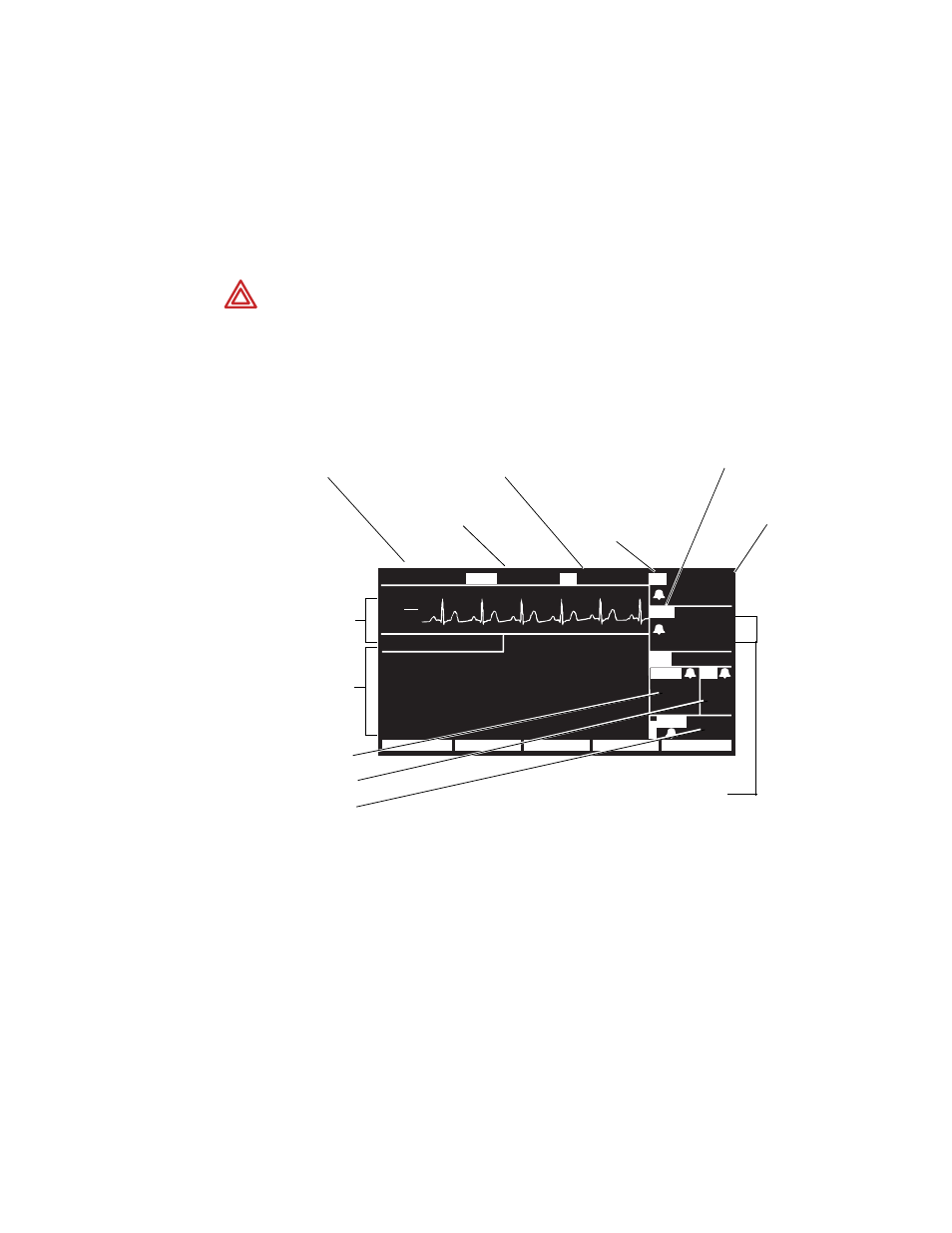

Propaq Encore display
The display shows waveforms, vital sign numeric values, Propaq Encore status, and alarm
information in different windows. Different vital sign numeric values (such as heart rate
and blood pressures) have upper and lower range limits. If the Propaq Encore detects a
vital sign value outside of the Propaq's measurable range, the monitor displays – – –
(below the range) or + + + (above the range) instead of the vital sign value.
The screenspace is reallocated when vital signs are added or removed. By changing the
size of the numeric windows below the heart rate, the Propaq Encore provides the best
possible view of all numerics for vitals signs being monitored.
WARNING The Propaq Encore will show + + + for HR numerics between 301-
350 beats per minute. Above 350 beats per minute, it may display incorrectly low
heart rates, due to intermittent picking of R-waves.
Note
Due to differences in software versions and standards required by different
countries, the displays shown in this reference guide may be slightly different
than the display on your Propaq Encore.
mmHg
GAS COMP
PREV MENU
SOURCE
RESPONSE
BR
SpO
2
PA
ART
HR
T
1
NIBP
18:45:28
III
1
mV
cm
MON
CO
2
GAS COMPENSATION: OFF
RESPONSE : NORMAL
CO
2
SOURCE
: MAINSTREAM
SWEEP SPEED : 6.25 mm/s
BAROMETER : 762.2 mmHg
102.3
F
S
122
35/ 18
( 85)
35 12
92
122
58
60
MCO2
Bells indicate alarm limit status
Status window
Waveform window
Temperature values are displayed
here.
Time of day, caution and status
messages.
Systolic, diastolic, and (if space permits)
mean pressures are displayed.
Oxygen saturation is a
percentage value.
Heart Rate in beats per
minute.
Heart Rate Source:
HR indicates ECG;
PR indicates blood pressure
or SpO
2
.
Noninvasive blood
pressure values can
appear here.
ETCO
2
concentration
Breath Rate from CO
2
