Reference Guide Specifications 117

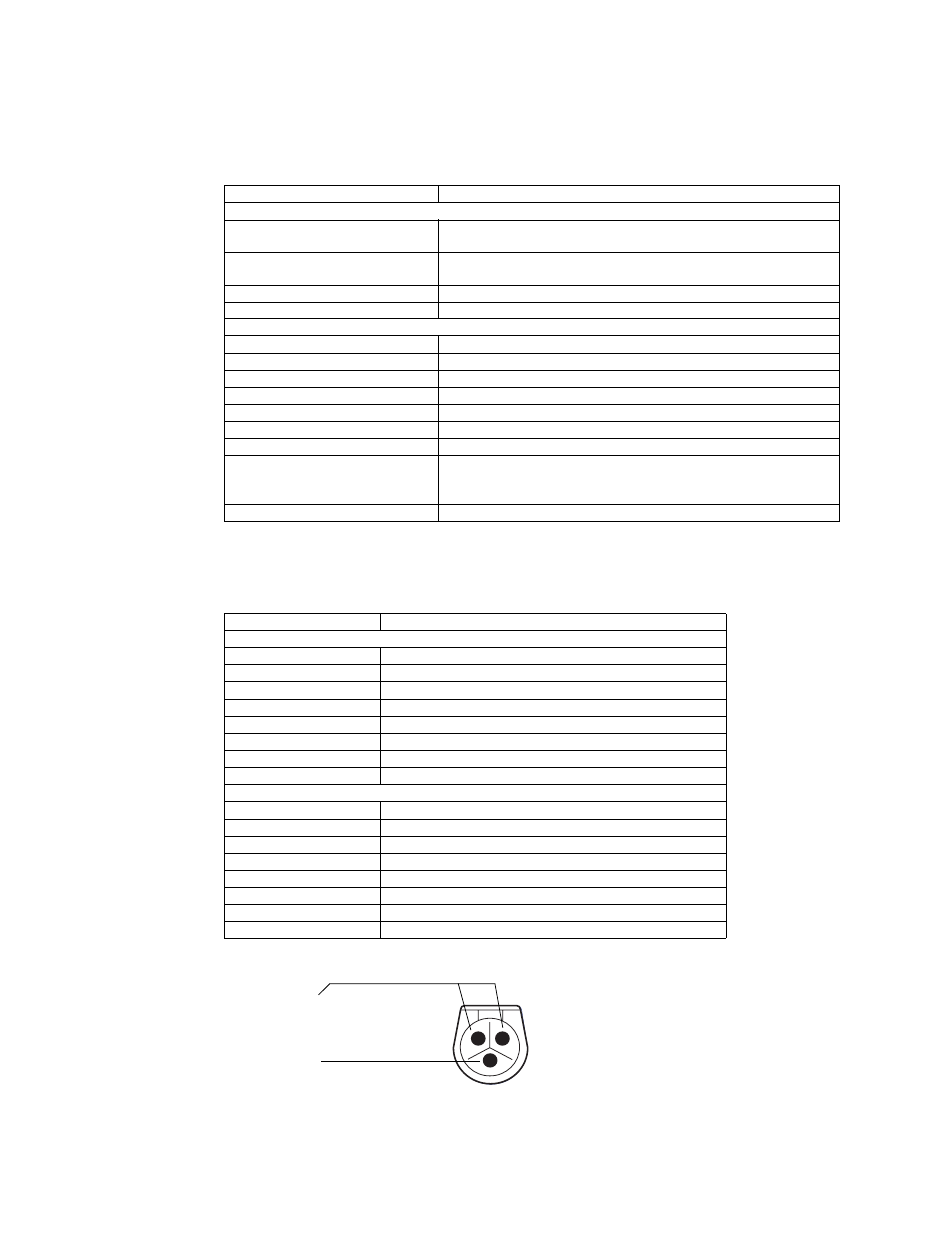

Power adapters
Characteristic Specification
Protection classifications, all adapters
a
a. Per EN 60601-1 unless otherwise stated.
Type of Protection Against Electric
Shock Class I, (Protectively Earthed)
Degree of Protection Against Harmful
Ingress of Water For ordinary, indoor locations only.
Method of Disinfection Not suitable for autoclaving
b
b. See Chapter 8 for cleaning instructions.
Flammable Anesthetics Not suitable for use with flammable anesthetics
Environmental specifications, all adapters
Operating Temperature 0° to 50° C
Shipping and Storage Temperature -20° to 60° C
Operating Altitude -2,000 to 15,000 feet (-610 to 4,572 m)
Shipping and Storage Altitude -2,000 to 40,000 feet (-610 to 12,192 m)
Operating Relative Humidity 15% to 95%, noncondensing
Shipping, Storage Relative Humidity 15% to 95%, noncondensing
Shock 50 g
Vibration Random Vibration, 0.02g 2 /Hz from 10 to 300 Hz, ramping down to 0.002g 2 /Hz
at 500 Hz. Operating 1 hour per axis,
3 hours per test.
Water Resistance For ordinary, indoor locations only.
Characteristic Specification
Universal power adapter, 503-0054-00, 503-0093-XX
Length 5.0 in (12.7 cm)
Width 3.6 in (9.1 cm)
Height 3.1 in (7.9 cm)
Weight 3.1 lb (1.4 kg)
Rated Input 100V-120V ac, 500 mA, 50/60 Hz
Rated Fuses T800 mA/250V, Time-Delay, 5x20mm
Rated Output (Continuous) 16-24V dc, 25 VA
Additional Features Detachable power cord, pilot light
Universal power adapter, 503-0054-01, 503-0092-XX
Length 5.0 in (12.7 cm)
Width 3.6 in (9.1 cm)
Height 3.1 in (7.9 cm)
Weight 3.1 lb (1.4 kg)
Rated Input 200V-240V ac, 250 mA, 50/60 Hz
Rated Fuses T400 mA/250V, Time-Delay, 5 x 20mm
Rated Output (Continuous) 16-24V dc, 25 VA
Additional Features Detachable power cord, pilot light
Power Adapter
connector
+
-
