PRINTER FAULT messages

These PRINTER FAULT messages can appear in an equipment alert window.

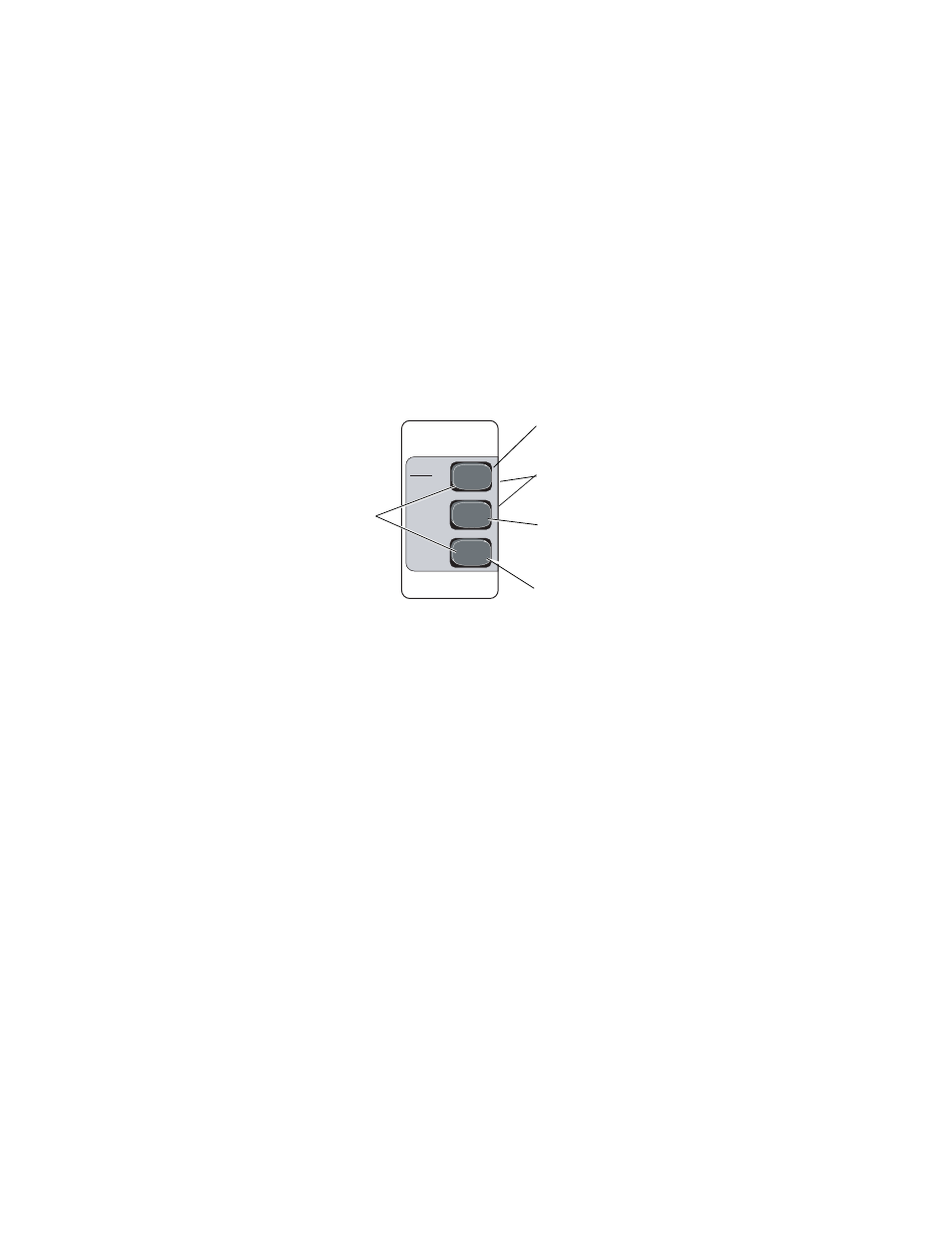

The front panel of the printer lets you control the basic printer functions.

If you press FREEZE prior to pressing SNAPSHOT, the printer prints the 8 seconds of
patient information obtained prior to when you pressed FREEZE.

Learning the Propaq Encore

Using in-service mode

You can practice using the Propaq Encore without a patient simulator by using the
Propaq's in-service mode of operation. The in-service mode cannot be activated while you
are monitoring a patient. The message “SIMULATING” alternates with the time of day
and patient mode on the display.

To begin practicing with your Propaq, disconnect all patient cables connected to the
monitor. Leave the cuff connected so you can take NIBP measurements. If you have been
monitoring a patient, turn off the Propaq Encore and turn it back on. From the Main Menu,
press SETUP, WAVE SEL, INSERV.

The Propaq Encore has two sets of simulated patient information—an initial set and an
alternate set. To change between them, press the INSERV button again.

If you connect a patient cable or set the NIBP channel to automatically take pressure
measurements, the Propaq Encore stops simulating, goes through its powerup tests, and
erases any simulated trend data it might have stored.

LOW BATTERY,
PRINTER DISABLED

This message appears when the Propaq’s battery voltage is
less than 7.6 volts. To continue operation, plug the ac power
adapter into the Propaq.

CHECK DOOR

The door on the bottom of the printer is open. Close door to
remove this message.

PAPER OUT

To add printer paper, see

“Printer maintenance” on page 96

.

OVERHEATING

The printer is overheating. Service may be required.

START
STOP

SNAP
SHOT

PRINT
TRENDS

Manually starts and stops a printout of patient
information as it is monitored (continuous or real time).

Hold down top two keys simultaneously to generate a
paper feed.

Hold down top and bottom

keys simultaneously to

generate a test strip.

Prints all trends that are enabled in the Printer Trend
Select Window.

Prints the last 8 seconds of data for nonrespiration
waveforms and 32 seconds of compressed waveform
history for respiration waveforms.
