Page 20

16
Getting started
Welch Allyn Propaq Encore Vital Signs Monitor

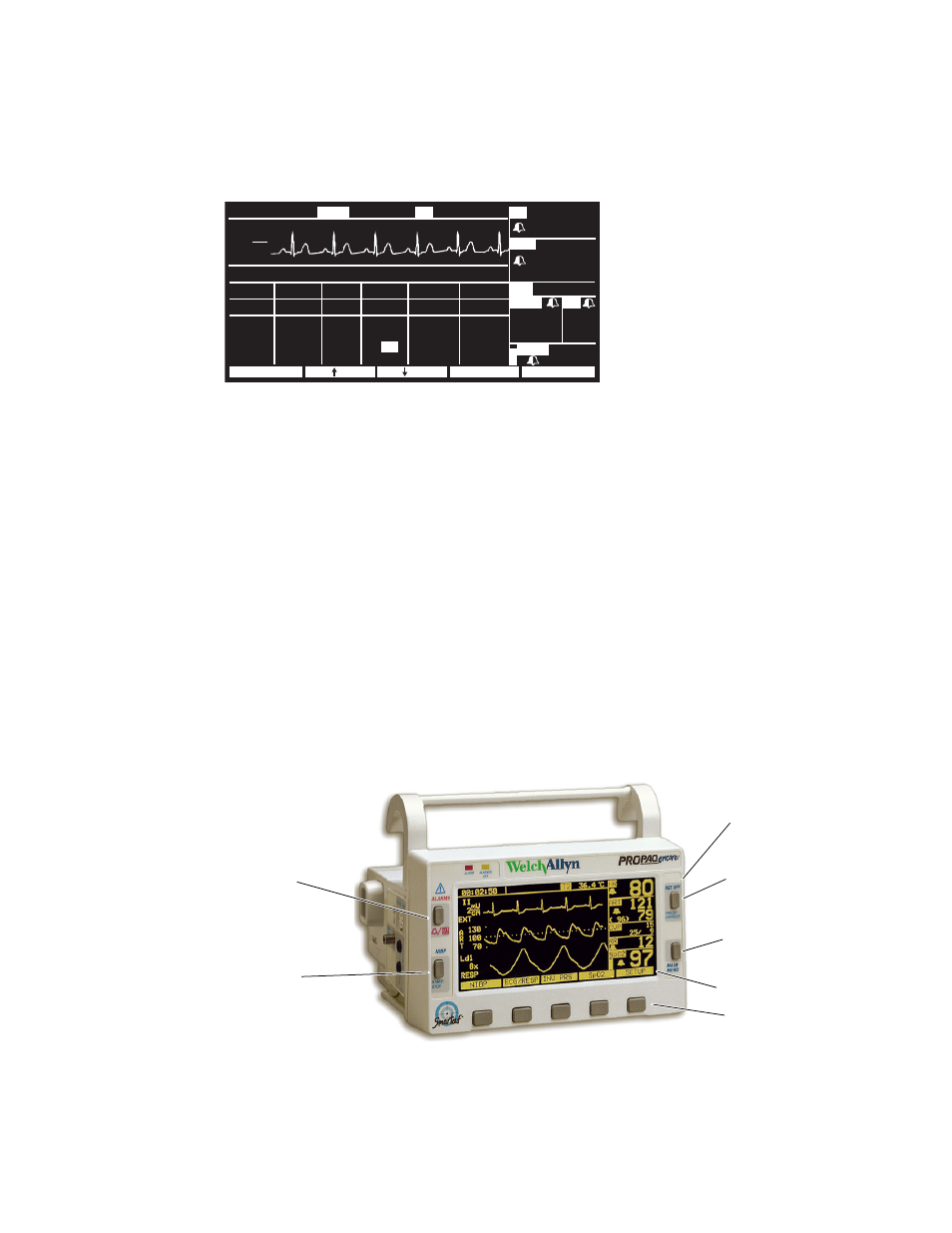

You can select up to three waveforms to be shown on the Propaq. When only one
waveform is selected, a trend window automatically appears below the waveform. While
changing Propaq Encore settings, a status window may appear below the waveform.
Propaq Encore buttons
The four buttons at the sides of the screen are reserved for the most commonly used
functions.
The five buttons below the screen, and their associated labels located on the screen,
provide access to the menus.
Later in this manual, the notation A , B , C is used as a shorter way to say “Press Button
A, then B, then C.”
PA
ART
35/ 18
( 85)
122
58
OXYCRG
NXT TRND
HR
T
1
NIBP
12:45:28
III
1
mV
cm
MON
RESP TREND
TIME
INCO2
ETCO2
HR/PR
BPM
HH:MM
10:00
9:58
9:56
9:54
98
SRCH
OFF
100
101
88
93
91
3
3
10
2
30
31
30
30
BR
Br/M
11
11
5
10
SpO2
%
102.3
F
S
122
80
mmHg
mmHg
mmHg
MCO
2
BR
SpO
2
35 12
92
Patient waveform and trend information
can be simultaneously displayed, while
numeric values are continuously updated.
ALARMS
Silences or resumes alarm tone.
START/STOP
Starts and stops NIBP measurements. The STOP function will
automatically vent the cuff.
NET OFF
Disconnects the monitor from the Acuity network (if
connected).
FREEZE/UNFREEZE Freezes or “unfreezes” the waveforms. If only one or two
waveforms are displayed and you press FREEZE, the frozen
waveform(s) are shown along with an active waveform so you
can continue to monitor the patient’s condition.
MAIN MENU
Pressing MAIN MENU always returns the monitor to the top
level menu.
The five labels
above the
associated
buttons
FREEZE/
UNFREEZE
MAIN MENU
START/STOP
(NIBP)
ALARMS
NET OFF
