KMC Controls KMD–1162 Installation and Operation
6
3. Fasten the mounting base to the backplate or the outlet box with
the Allen screws toward the floor.
4. Insert the RJ-12 cable coming from the base into the NetSensor.
5. Place the top of the NetSensor over the top of the mounting base
and swing it down over the Allen screw brackets. Be careful not
to pinch any wiring.
6. Back the Allen screws out of the brackets until they engage the
NetSensor cover and hold it in place.
Operation
The following sections describe the controls and indicators found on
the NetSensor.
Display
The display includes two 7-segment LCD digits that are visible across
a normal size office. Room temperature is displayed until either
setpoint button is pressed and then the display changes to setpoint
mode.
If the temperature remains out of the temperature operating range for
more than 45 seconds, the KMD–1162 displays a set of dashes (—).
The NetSensor also sends 0 to the controller if the temperature is
below 47 degrees Fahrenheit (8 degrees Celsius) and 120 if the
temperature is above 97 degrees Fahrenheit (36 degrees Celsius).

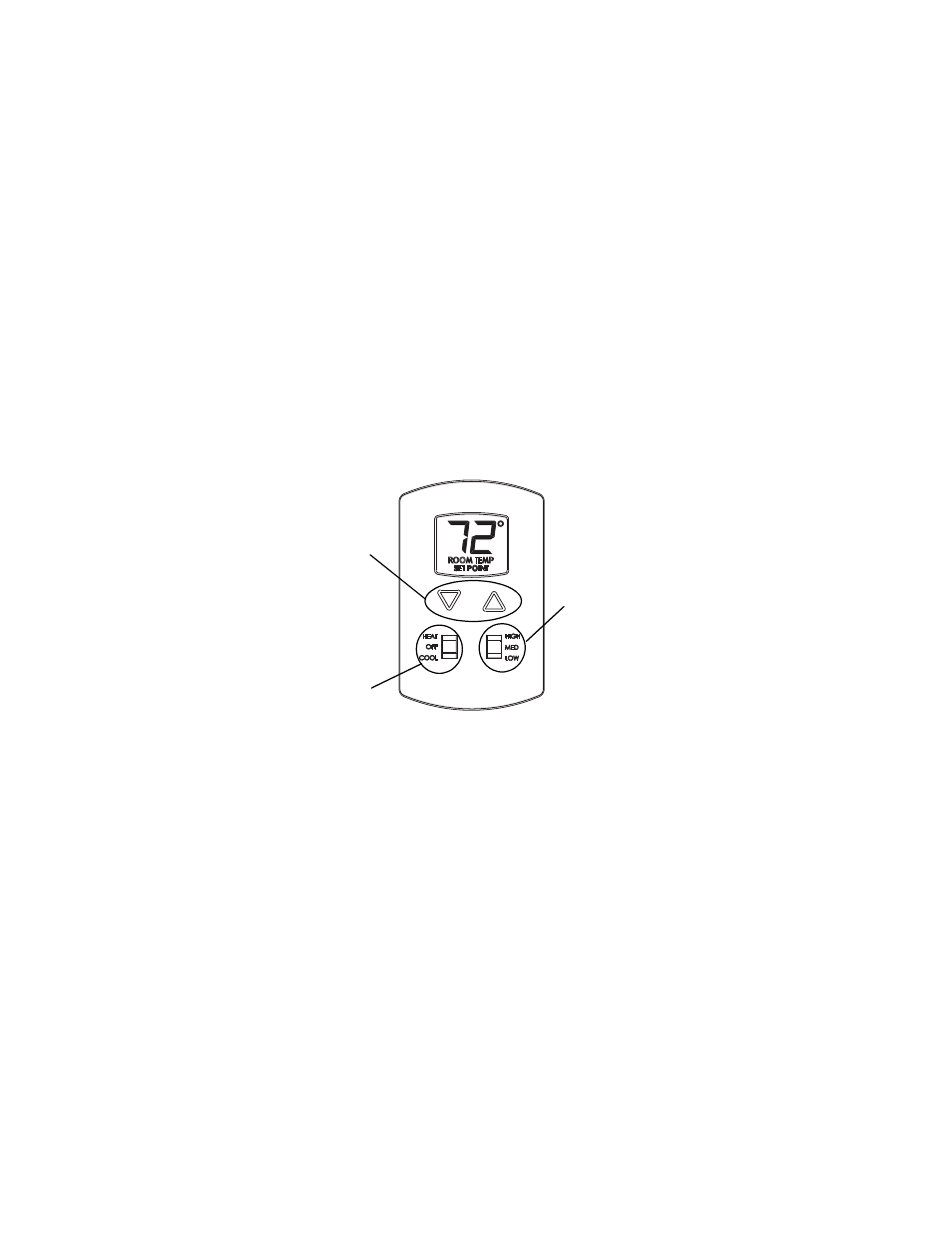

NetSensor button functions
Setpoint
buttons
Mode
Fan speed
