Models
Almond
KMD-1162-10
White
KMD-1162W10
Network Cable Preparation
Connecting a NetSensor to a KMC controller requires a six-wire cable
with RJ-12 connectors on each end. Use either the KMC Controls
ready-to-use cables or make cables to length when the NetSensor is
installed. Cables made to length must meet the following
requirements:
◆
Cable length is no longer than 75 feet (22.9 meters).
◆
Use cable with #24 AWG size conductors.
◆
Cable insulation must meet local building codes. Plenum rated
cable is recommended.
◆
Connectors are appropriate for the cable in use and are installed
following the connector manufactures instructions.

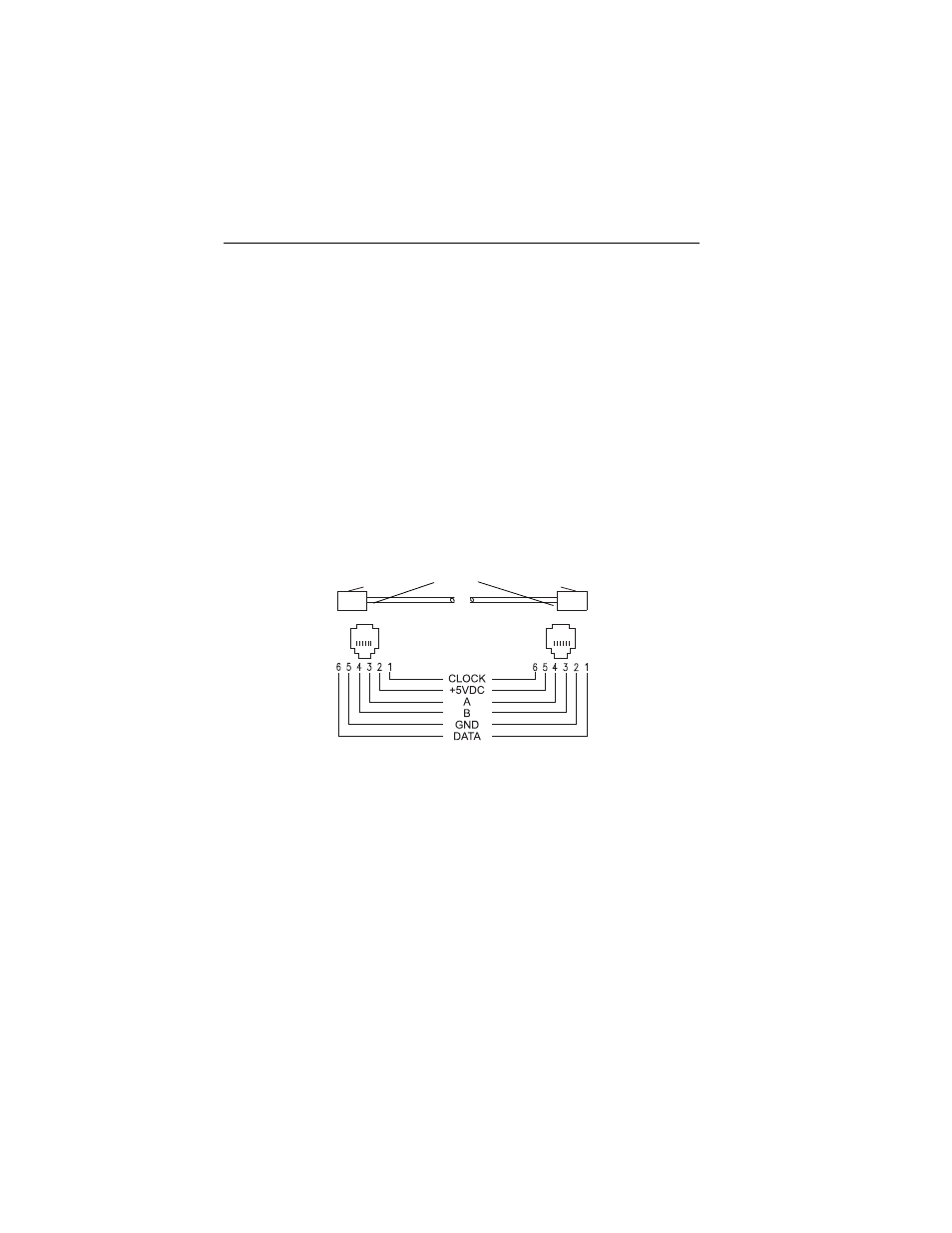

Cable Details
RJ-12
