BAC-12xx36/13xx36/14xx36 Series FlexStat
9
Installation Guide, Rev. C
CSE-1102 Air Differential
Pressure Switch
MEP-5372, MEP-7252, MEP-7552, or MEP-7852 Actuators
STE-1416 Duct Averaging
Sensor, Type III
STE-1451 OAT Sensor, Type III
XEE-6311-050 Transformer
See also the
AHU—Additional
Options section
on the last page
for network,
humidification,
and fan speed
options.

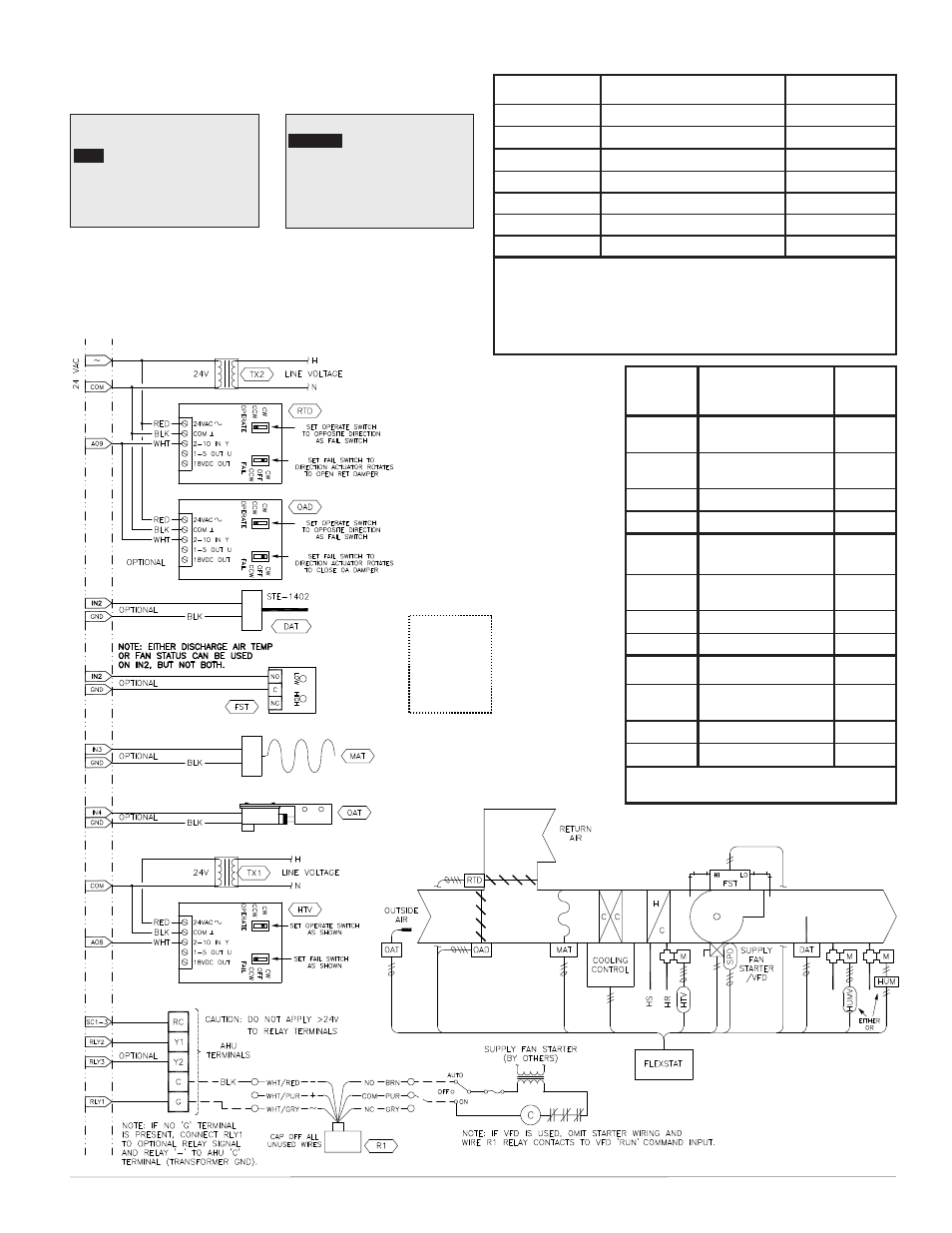

AHU MODULATING H / 1 OR 2 C LAYOUT
STE-1402 Duct Sensor, Type III
VEP-45/VEB-43 Fail-Safe Valve with MEP-5372 Actuator
XEE-6311-075 or XEE-6311-100 Transformer
REE-3211 or CVR11C-0/LD96200 Multi-Voltage Relays
AHU—Modulating Heat and 1 or 2 Cool
Output
Terminals
AHU Output
Connections
BACnet
Objects
Analog 9
Optional Outside Air
Damper (OAD/RTD)*
AO9
GND
Ground (for analog
output terminals 7–9)
Analog 8
Heating Valve (HTV)
AO8
Analog 7
AO7
Analog 6
Optional Humidifier
Valve (HUM or HUMV)
AO6
GND
Ground (for analog
output terminals 4–6)
Analog 5
AO5
Analog 4
Optional Fan Speed
AO4
Relay 3
Optional Cool 2 (Y2)
BO3
SC 1–3
24 VAC (for relay
terminals 1–3)
Relay 2
Cool 1 (Y1)
BO2
Relay 1
Fan (G)
BO1
*If optional Outside Air Damper is used,
must also have MAT/OAT inputs.
APPLICATION
DEGREES SCALE: °F
APP:
OPT: MOD H/2 C
ADDITIONAL SETUP
AIR HANDLER
ADDITIONAL SETUP
DAMPER
FAN
HUMIDITY
OPTIMUM START
SENSORS
STAGING
Input Terminals
AHU Input Connections
BACnet Objects
IN9
Opt. Remote CO
2
Sensor*
AI9
IN8
AI8
IN7
Opt. Remote Temp. Sensor*
AI7
IN4
Opt. Outside Air Temp. (OAT)**
AI4
IN3
Opt. Mixed Air Temp. (MAT)**
AI3
GND
Ground
IN2
Optional FST or DAT*
AI2
*Fan Status (FST), Discharge Air Temperature (DAT), and (not shown
on the diagram) remote temp./CO
2
sensors are optional inputs. Set
pull-up resistor switch positions appropriately (see the Input
Connections section).
**When using the optional Outside Air Damper, MAT/OAT inputs must
also be connected.
NOTE: Do not use REE-3211/
CVR11C-0/LD96200
relays
with analog outputs! See Output
Connections on page 3.
