BAC-12xx36/13xx36/14xx36 Series FlexStat 11 Installation Guide, Rev. C © 2013 KMC Controls, Inc. 913-019-27C
KMC Controls, Inc.
19476 Industrial Drive
New Paris, IN 46553
574.831.5250
www.kmccontrols.com; [email protected]

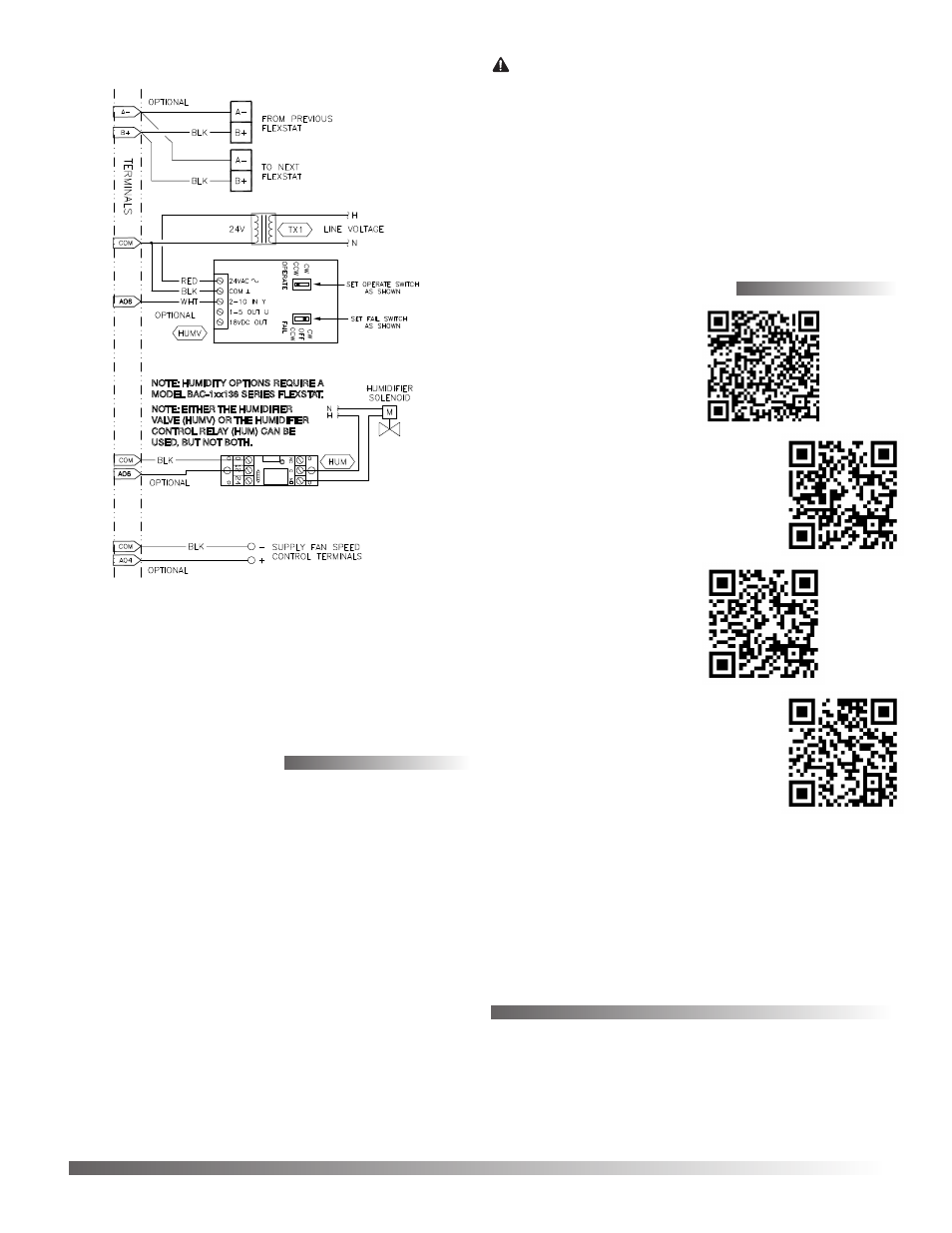

AHU—Additional Options
VEP-45/VEB-43 Fail-Safe Valve with
MEP-5372 2–10 VDC Actuator
REE-3112 Control Relay
(Do not use REE-3211/3221/3213
relays with FlexStat analog outputs.)
XEE-6311-075 Transformer
NOTE: EITHER THE HUMIDIFIER
VALVE (HUMV) OR THE HUMIDIFIER
CONTROL RELAY (HUM) CAN BE
USED, BUT NOT BOTH.
NOTE: HUMIDITY OPTIONS REQUIRE A
MODEL BAC-1xx136 SERIES FLEXSTAT.
Additional Resources
Important Notices
The material in this document is for information
purposes only. The contents and the product it
describes are subject to change without notice.
KMC Controls, Inc. makes no representations or
warranties with respect to this document. In no event
shall KMC Controls, Inc. be liable for any damages,
direct or incidental, arising out of or related to the
use of this document.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation. A BAC-12xxxx Class B digital
apparatus complies with Canadian ICES-003. A
BAC-13xxxx/14xxxx Class A digital apparatus com-
plies with Canadian ICES-003 Class A.
CAUTION
This document is for 3-relay, 6-analog-output,
6-external-input BAC-12xx36/13xx36/14xx36 series
only. THESE MODELS ARE NOT COMPATIBLE WITH
THE BACKPLATES OF OLDER BAC-10000 SERIES
FLEXSTATS (WITH ONLY 3 EXTERNAL INPUTS)!
If replacing an older 3-input FlexStat, replace the
backplate as well of the new FlexStat will be damaged.
The latest support files
are always available on
the KMC Controls web
site ( www.kmccontrols.
com ). To see all available
files, you will need to
log-in to the Partners site
For specifications and
accessories, see the BAC-
12xxxx/13xxxx/14xxxx
Series FlexStat Data
Sheet .
For operation, configura-
tion, troubleshooting,
and other information,
see the FlexStat Opera-
tion Guide .
For additional wiring,
application, and pro-
gramming information,
see the FlexStat Applica-
tion Guide .
For additional instruc-
tions on programming,
see the Help system for
BACstage or TotalCon-
trol.
NOTE: Do not use REE-3211/ CVR11C-0/LD96200
relays with analog outputs! See Output
Connections on page 3.
