HTO-1103 FlexStat Firmware Flash Upgrade Kit 8 Installation Guide, Rev. N © 2013 KMC Controls, Inc. 913-019-04N
KMC Controls, Inc.
19476 Industrial Drive
New Paris, IN 46553
574.831.5250; Fax 574.831.5252
www.kmccontrols.com
[email protected]
Important Notices
The material in this document is for information
purposes only. The contents and the product it
describes are subject to change without notice. KMC
makes no representations or warranties with respect
to this document. In no event shall KMC be liable for
any damages, direct or incidental, arising out of or
related to the use of this document.
UPDATE MANAGER
PROGRAM CONFIG ERROR
ENABLE FACTORY:
ENABLE CUSTOM: NO
EDIT CB PROGRAMS
DONE
NO
Custom Control Basic Issues
If custom Control Basic programs are installed and
set to autorun, whenever the firmware is updated,
ALL (factory and custom) programs are halted.
If custom Control Basic programs are installed but
NOT set to autorun, whenever the firmware is
updated, factory programs are restarted but any
(manual) running custom programs are halted at
restart.
Change the state of each custom program by using
the Update Manager (see Illustration 13 ) or loading/
running each program from the CB Programs menu
(or BACstage or TotalControl).
Illustration 13—Update Manager
CO
2
Calibration Adapters

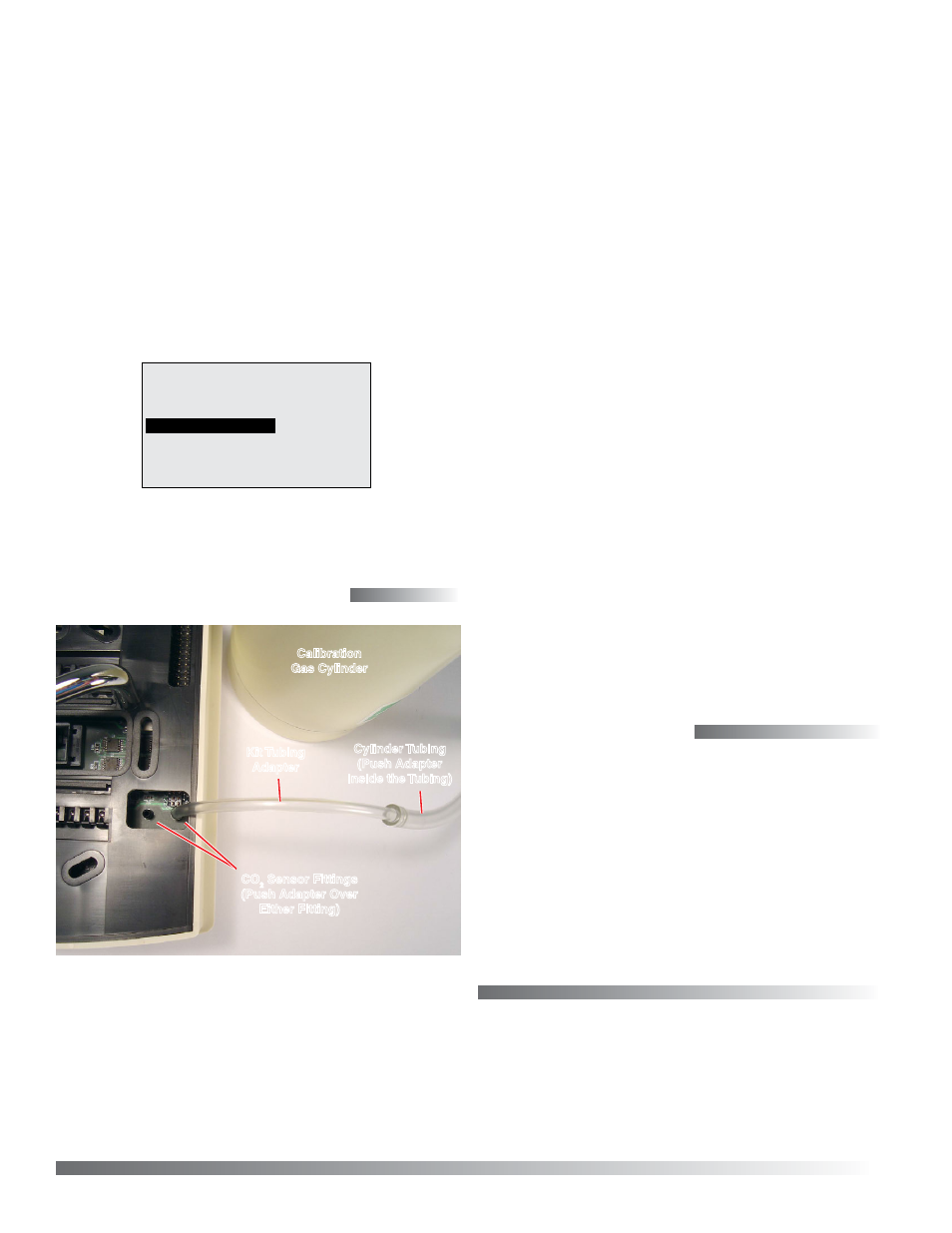

Illustration 14—CO
2
Calibration Tubing Adapter
Kit Tubing
Adapter
Calibration
Gas Cylinder
Cylinder Tubing
(Push Adapter
Inside the Tubing)
CO
2
Sensor Fittings
(Push Adapter Over
Either Fitting)
To calibrate the CO
2
sensor in BAC-14xxxx Flex-
Stats, the clear plastic tubing adapter from this kit
will be needed. The 3.5"-long clear tubing is needed
to connect the FlexStat to the larger diameter tubing
that typically comes with calibration gas kits. One
end fits over one of the FlexStat calibration tube
fittings (after the protective caps are removed). The
other end fits inside the standard 1/4" OD tubing
that comes from the regulator. (See Illustration 14 .)
The BAC-13xxxx/14xxxx backplate adapter (with at-
tached power cable) is also needed to provide power
to the FlexStat during the calibration procedure. (See
Illustration 5 on page 3 and Illustration 6 on page 4 .)
NOTE: It may be easier to attach the adapter tubing
to the fitting before attaching the backplate
to the FlexStat.
NOTE: The programming pod and USB cable
are not used during CO
2
calibration. The
BAC-13xxxx/14xxxx backplate adapter is
used for both CO
2
calibration and firmware
upgrading for those models.
NOTE: A GE Telaire 2075 (or equivalent) calibration
kit and gas must also be purchased
separately elsewhere.
See the FlexStat Application Guide for
the complete calibration procedure!
