HTO-1103 FlexStat Firmware Flash Upgrade Kit 4 Installation Guide, Rev. N

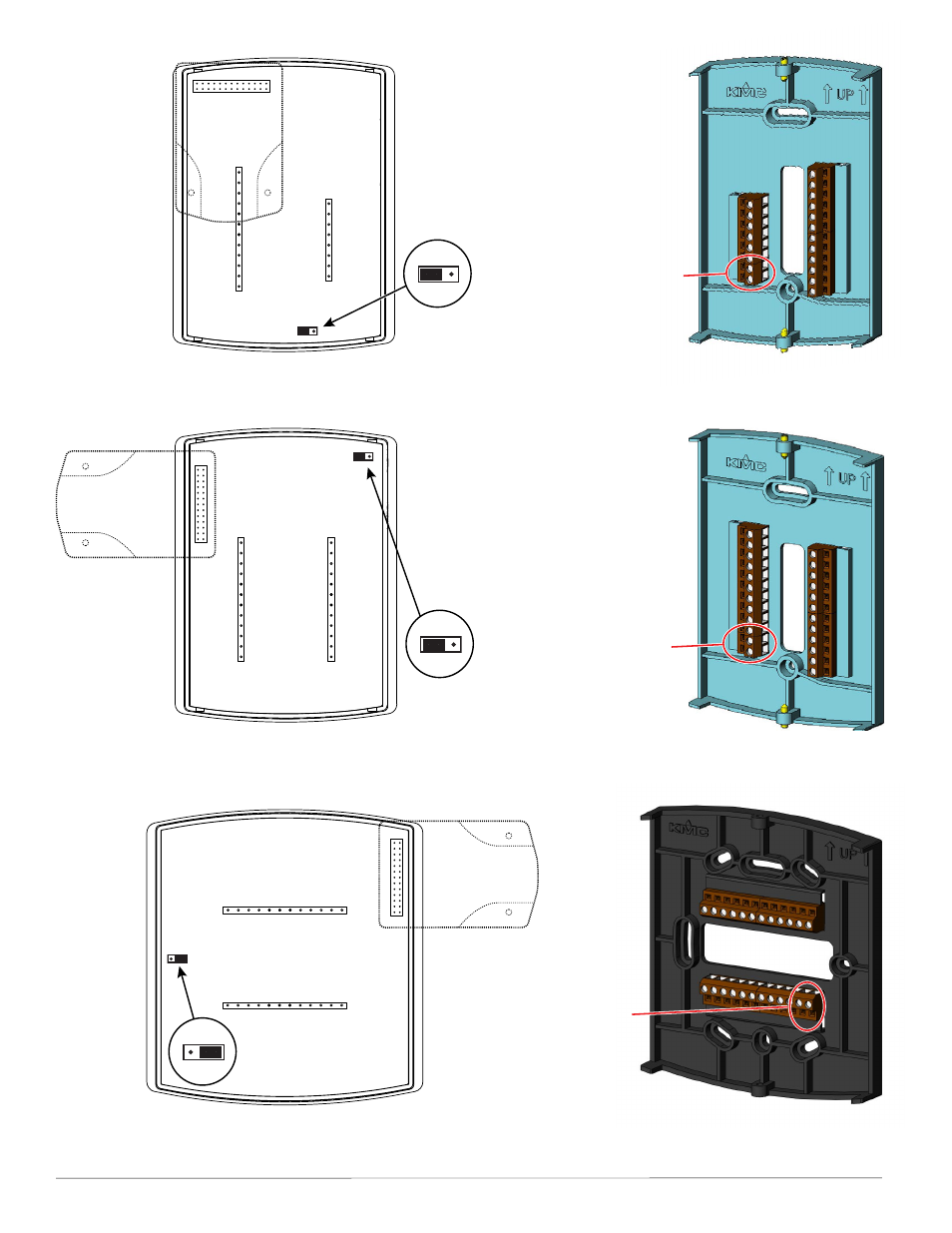

Illustration 6—Flash Port, WD Jumper, Programming Pod, and Power Terminals in Each Series
Flash Port
Backplate
Wiring
Connectors
WD
Jumper
HTO-1103
Programming
Pod
BAC-12xxxx
(WD Jumper
Shown in
Normal Operat-
ing Position,
Toward Center
of Board—
REMOVE for
Firmware
Update)
HTO-1103
Programming
Pod with Pin
Extender
Backplate
Wiring
Connectors
Flash
Port
(WD Jumper Shown
in Normal Operating
Position, Toward Center
of Board—REMOVE for
Firmware Update)
WD
Jumper
BAC-13xxxx/14xxxx
BAC-10000 Series
24 VAC Power Terminals
BAC-12xxxx
24 VAC Power Terminals
BAC-13xxxx/14xxxx
24 VAC Power Terminals
WD Jumper
Flash Port
Backplate
Wiring
Connectors
HTO-1103
Programming
Pod
(WD Jumper
Shown in Normal
Operating
Position, Toward
Center of Board—
REMOVE for
Firmware Update)
BAC-10000
Series
