EFCO CORPORATION 6/2012 PART NO. Y556 Page 9 of 81
S-5500 SSG and Captured Corner Mullion Installation Instructions
Section II: Frame Unit Assembly & Frame Sealing
SSG System
Note: Sealant must be applied to the ends of
each horizontal member before assembly.
Mitered end of
intermediate
horizontal
Apply sealant to the ends of
the horizontals as shown.

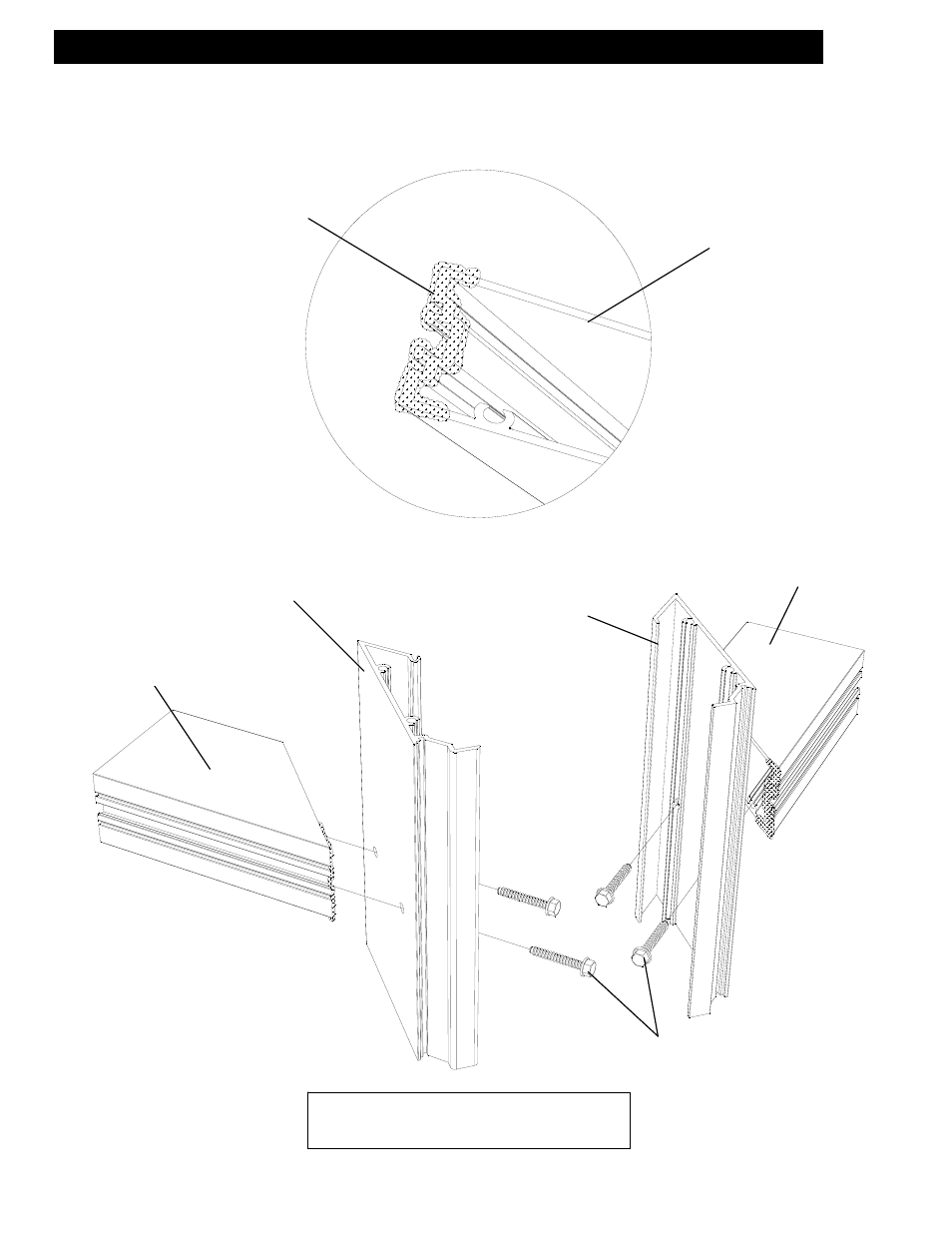

90 DEGREE SSG CORNER AT
INTERMEDIATE HORIZONTAL
INTERMEDIATE
HORIZONTAL
CORNER
MULLION HALF
CORNER
MULLION HALF
Frame assembly screws
1/4” –14 x 1 1/2”
HWSMS 18-8 Typical
HORIZONTAL
After each frame unit
assembly is complete,
wipe off all excess
sealant and allow the
frame unit to cure.
Refer to “Section II: Frame
Unit Assembly &
Frame
Sealing” of the Series 5500
Outside Glazed or Inside
Glazed Installation
Instructions for additional
information.
