EFCO CORPORATION 6/2012 PART NO. Y556 Page 45 of 81
S-5500 SSG and Captured Corner Mullion Installation Instructions
Section VII: Glazing Preparation
(Vertical SSG and Captured Horizontal)

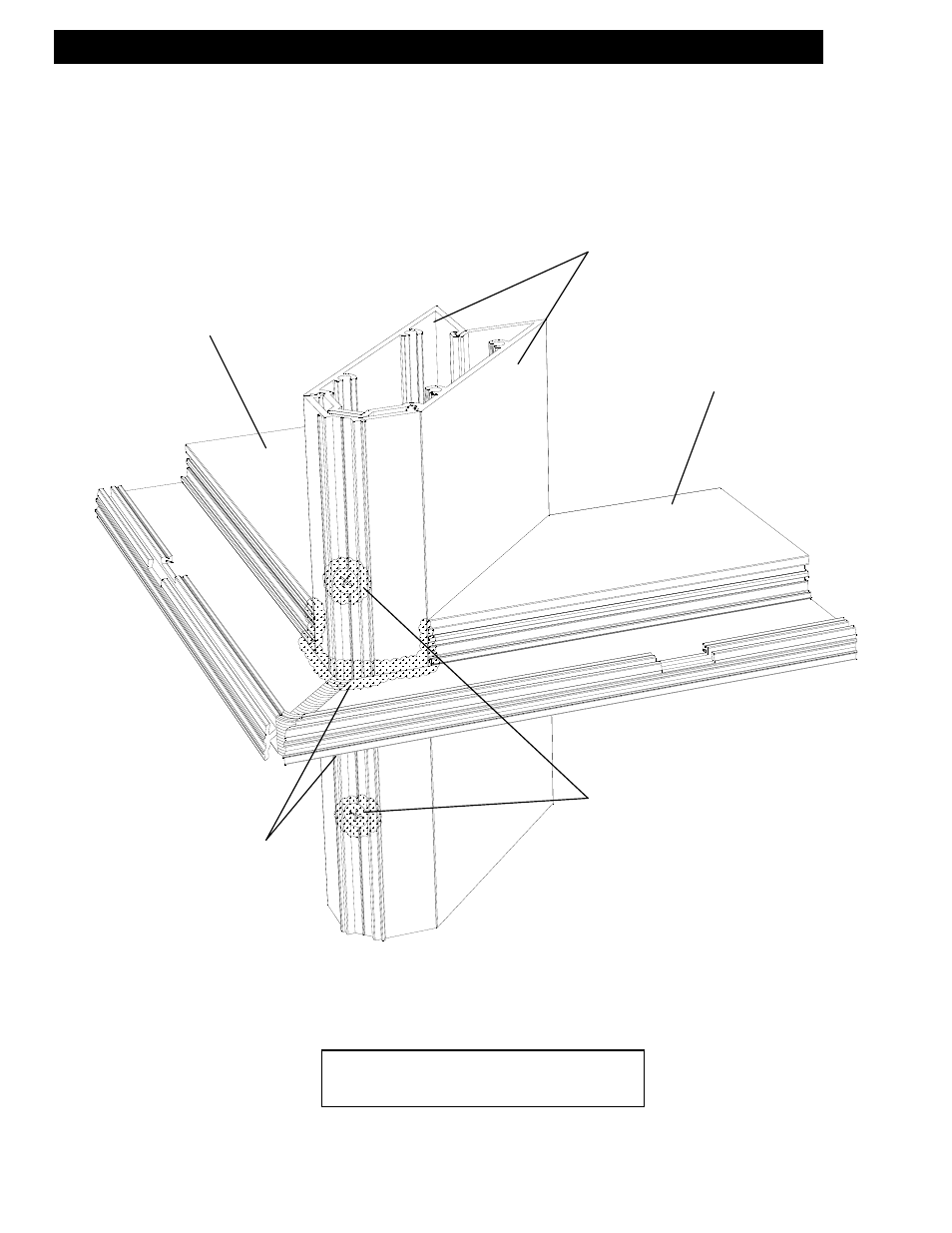

CAPTURED INTERMEDIATE
HORIZONTALS AT SSG CORNER
Attach the glazing adapters to the
corner mullion with the required
fasteners. Cap seal the fastener
heads with sealant. Fasteners
should not exceed 2” from the
ends of the adapters and must be
spaced at a maximum of 12” o/c.
CORNER
MULLIONS
CAPTURED
INTERMEDIATE
HORIZONTAL
CAPTURED
INTERMEDIATE
HORIZONTAL
Seal the end of the corner
mullion glazing adapter to
the corner mullion above
and below the tongue of
the horizontal.
