EFCO S5500 SSG Captured - Manual (Page 40)

EFCO CORPORATION 6/2012 PART NO. Y556 Page 40 of 81
S-5500 SSG and Captured Corner Mullion Installation Instructions
Section VI: Glazing Preparation (SSG)
HEAD AT SSG CORNER

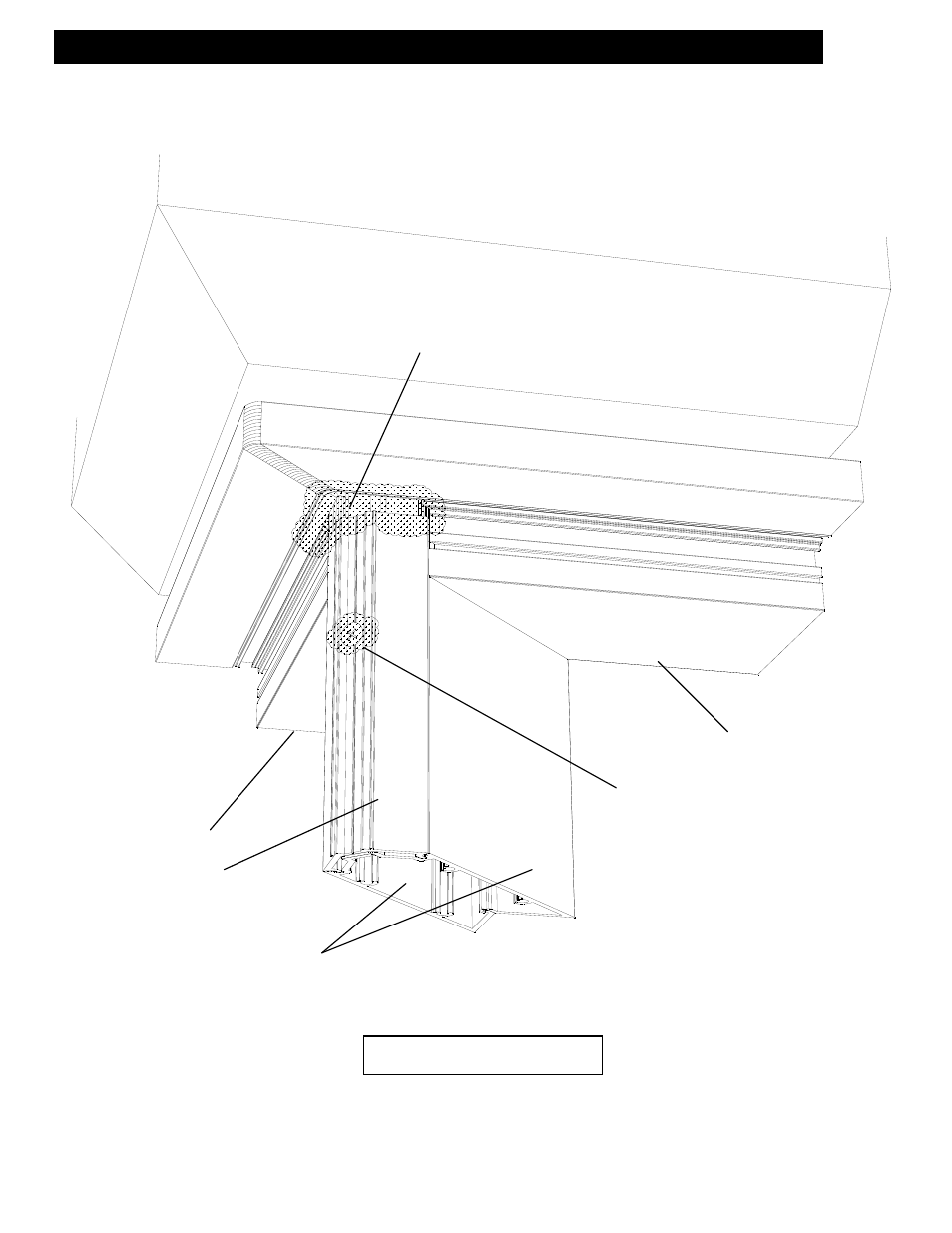

Seal the end of the corner
mullion glazing adapter to
the corner mullion.
Attach the glazing adapter to
the corner mullion with the
required fasteners. Cap seal
the fastener heads with
sealant. Fasteners should not
exceed 2” from the ends of the
adapters and must be spaced
at a maximum of 12” o/c.
CORNER
MULLIONS
SSG HEAD
SSG CORNER
MULLION GLAZING
ADAPTER
SSG HEAD
