EFCO CORPORATION 6/2012 PART NO. Y556 Page 14 of 81
S-5500 SSG and Captured Corner Mullion Installation Instructions
Section III: Typical Anchorage Methods
Anchor bolts (type and
quantity as required by
conditions and loads).
Shim as required at
anchors and under
each vertical mullion.
(Shim under setting
blocks at heavy lites.)

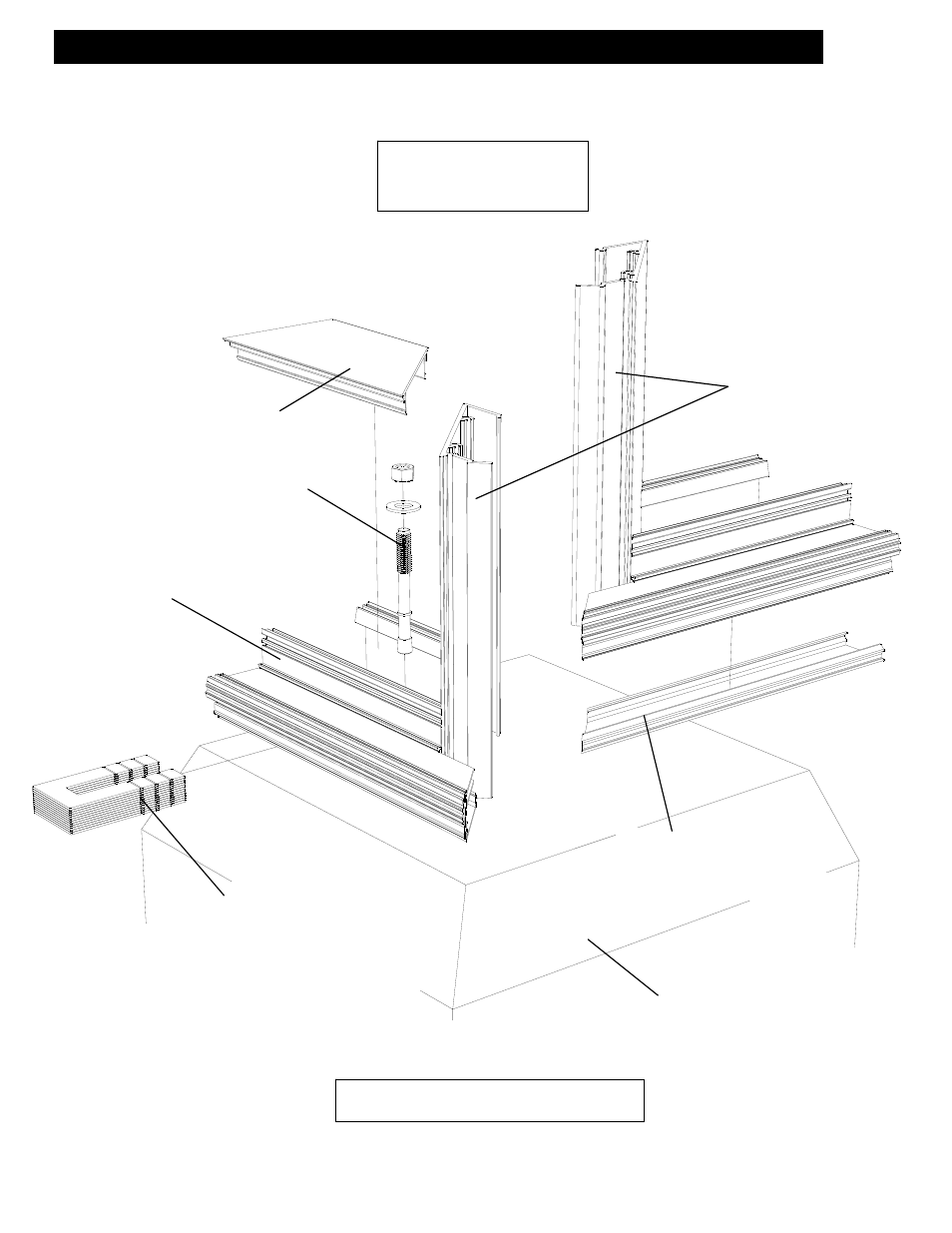

STANDARD SILL ANCHORAGE
Install PVC pocket filler
at frame assembly for
captured system.
Snap-in head and sill fillers
after anchor installation.
CAPTURED SYSTEM
SHOWN – SSG SYSTEM
SIMILAR
TWO PIECE CORNER
MULLLIONS
BUILDING
STRUCTURE
SILL
