EFCO CORPORATION 6/2012 PART NO. Y556 Page 61 of 81
S-5500 SSG and Captured Corner Mullion Installation Instructions
Section IX: Vertical Splice Joints
Installation for Captured System
STEP #6 APPLY PRESET ISOLATORS AND INTERIOR GASKETS
A.
B. Apply the interior preset gaskets and isolator gaskets per “Section V Glazing Preparation
(Captured)” of this manual. The gaskets will run continuously spanning the splice joint. The
gaskets should be set immediately after applying sealant to the splice joint to avoid
interference with cured sealant.
C. Ensure all voids where the sealant and gaskets make contact are filled.
D. Install glazing infill per “Section IX: Glazing Installation” of the Series 5500 Outside Glazed
Installation Instructions.

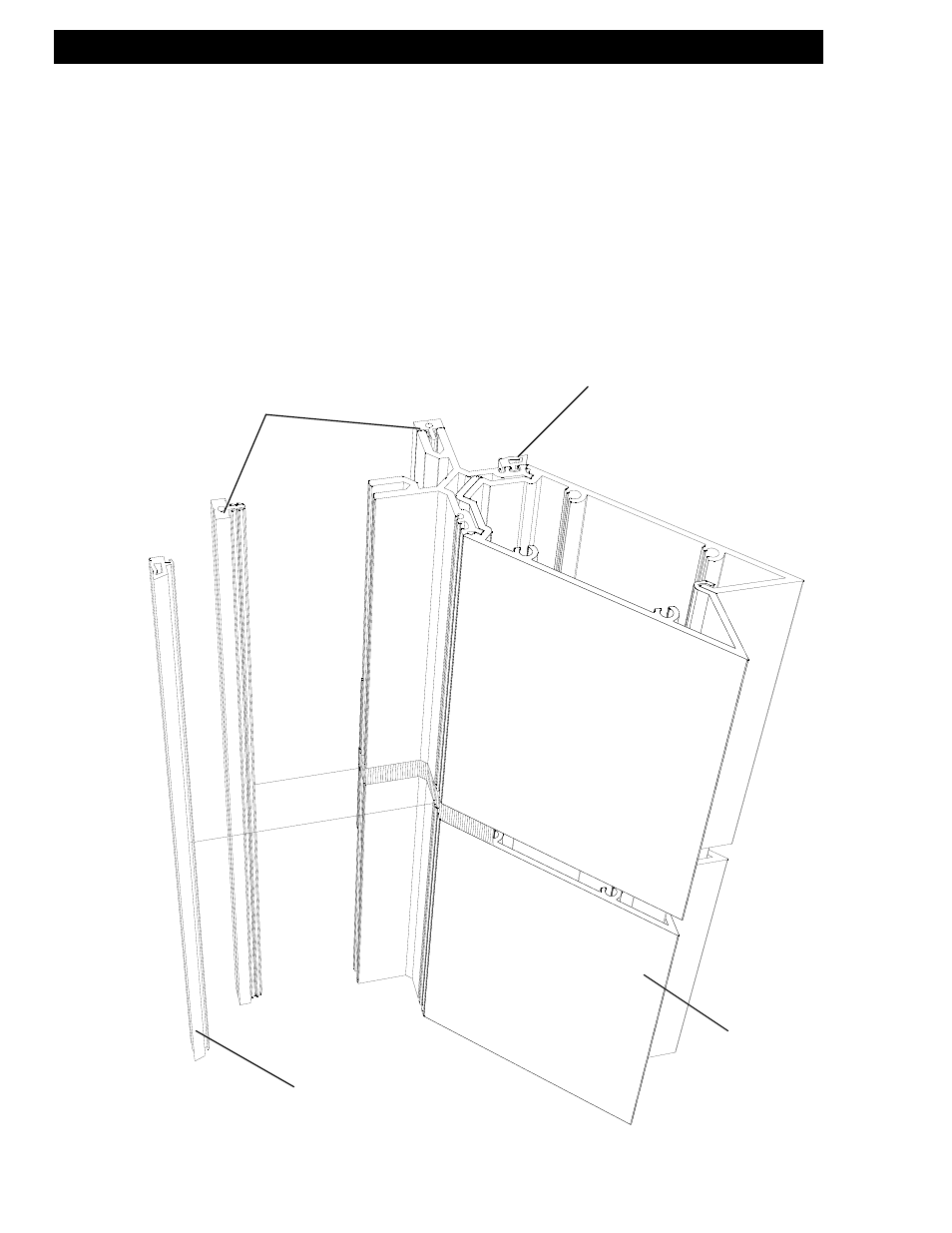

INTERIOR GASKETS
(Runs continuously
through splice joint.)
ISOLATOR GASKETS
(Runs continuously
through splice joint.)
INTERIOR GASKETS
(Runs continuously
through splice joint.)
2-PIECE CORNER
MULLION ASSEMBLY
