EFCO CORPORATION 6/2012 PART NO. Y556 Page 17 of 81
S-5500 SSG and Captured Corner Mullion Installation Instructions
Section III: Typical Anchorage Methods

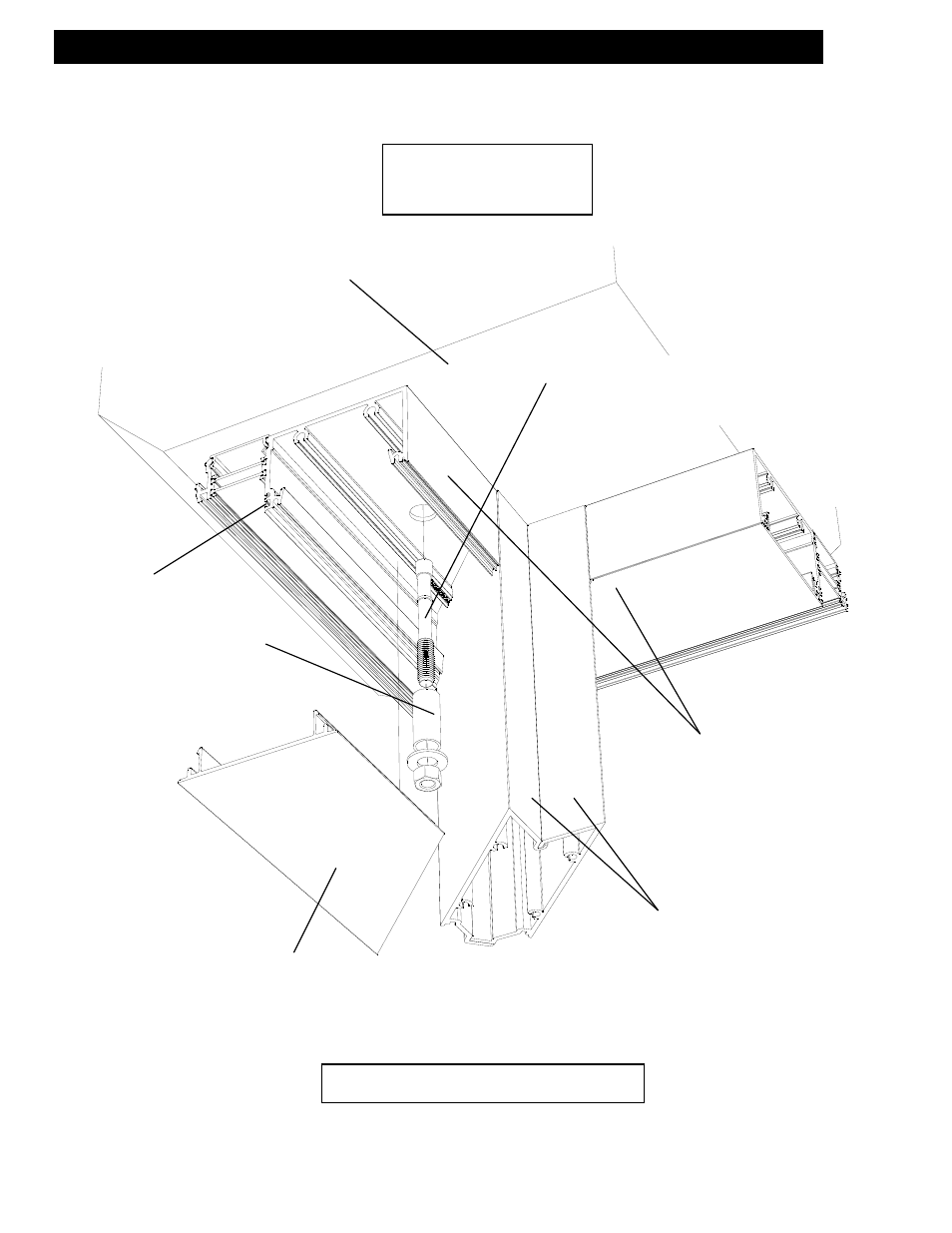

STANDARD HEAD ANCHORAGE
CAPTURED SYSTEM
SHOWN – SSG SYSTEM
SIMILAR
ASSEMBLED
CORNER FRAMES
Snap in head and sill fillers
after anchor installation.
SPLIT CORNER
MULLIONS
Anchor bolts (type and
quantity as required by
conditions and loads).
PIPE SLEEVE
ANCHOR
BUILDING
STRUCTURE
HEAD
