EFCO S5500 SSG Captured User Manual
Page 75
EFCO CORPORATION 6/2012
PART NO. Y556
Page 75 of 81
S-5500 SSG and Captured Corner Mullion Installation Instructions
Section XI: Glazed SSG Corners

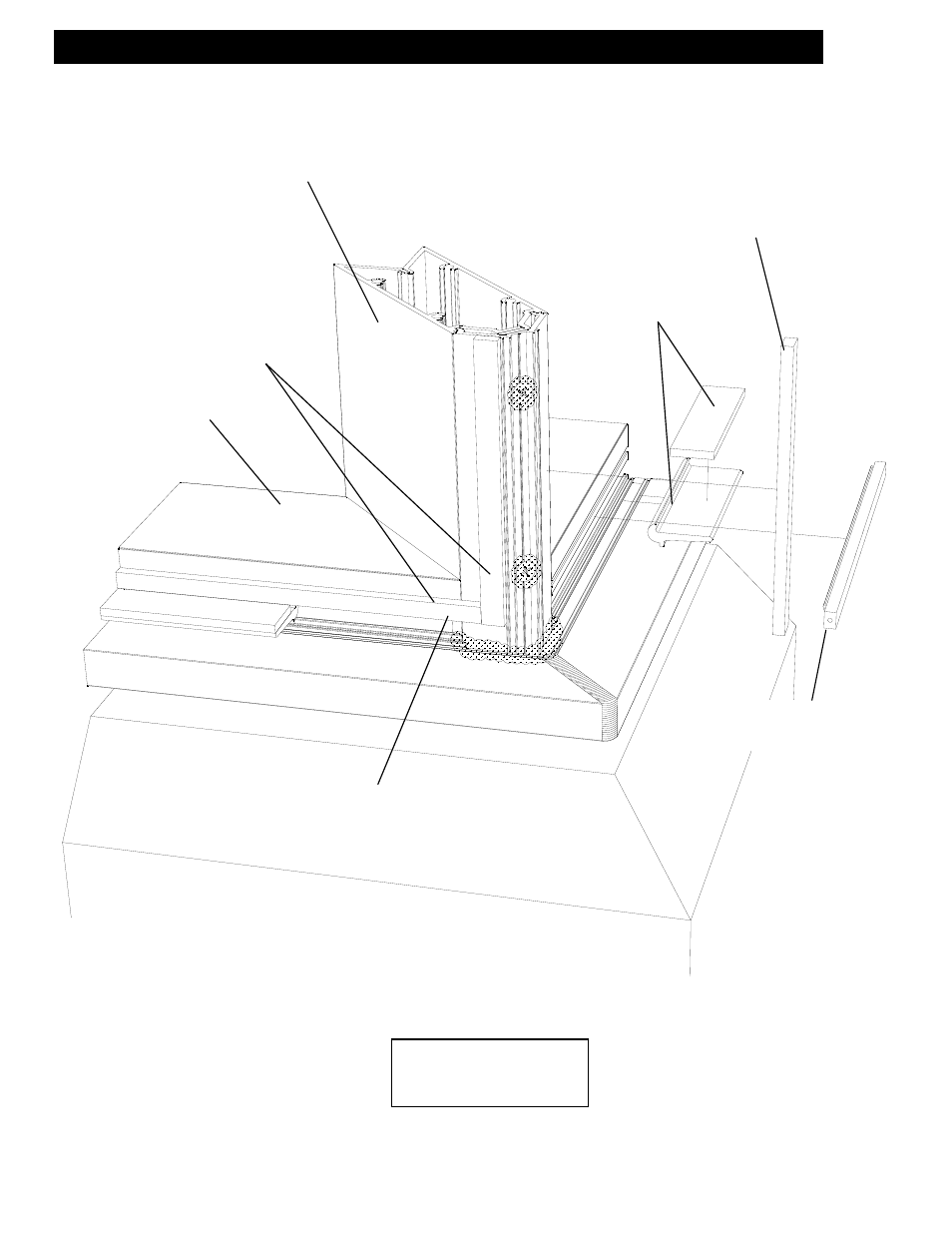

4-SIDED SSG SILL
(HEAD SIMILAR)
SSG SILL
Setting chair and
blocks located per
shop drawings.
VERTICAL SPACER
GLAZING TAPE
Notch darts on end
of spacers.
HORIZONTAL PRESET
SPACER GASKET
Butt horizontal
spacers into the
vertical spacers.
SSG VERTICAL
MULLION
