EFCO S5500 SSG Captured User Manual
Page 32
EFCO CORPORATION 6/2012
PART NO. Y556
Page 32 of 81
S-5500 SSG and Captured Corner Mullion Installation Instructions
Section V: Glazing Preparation (Captured)

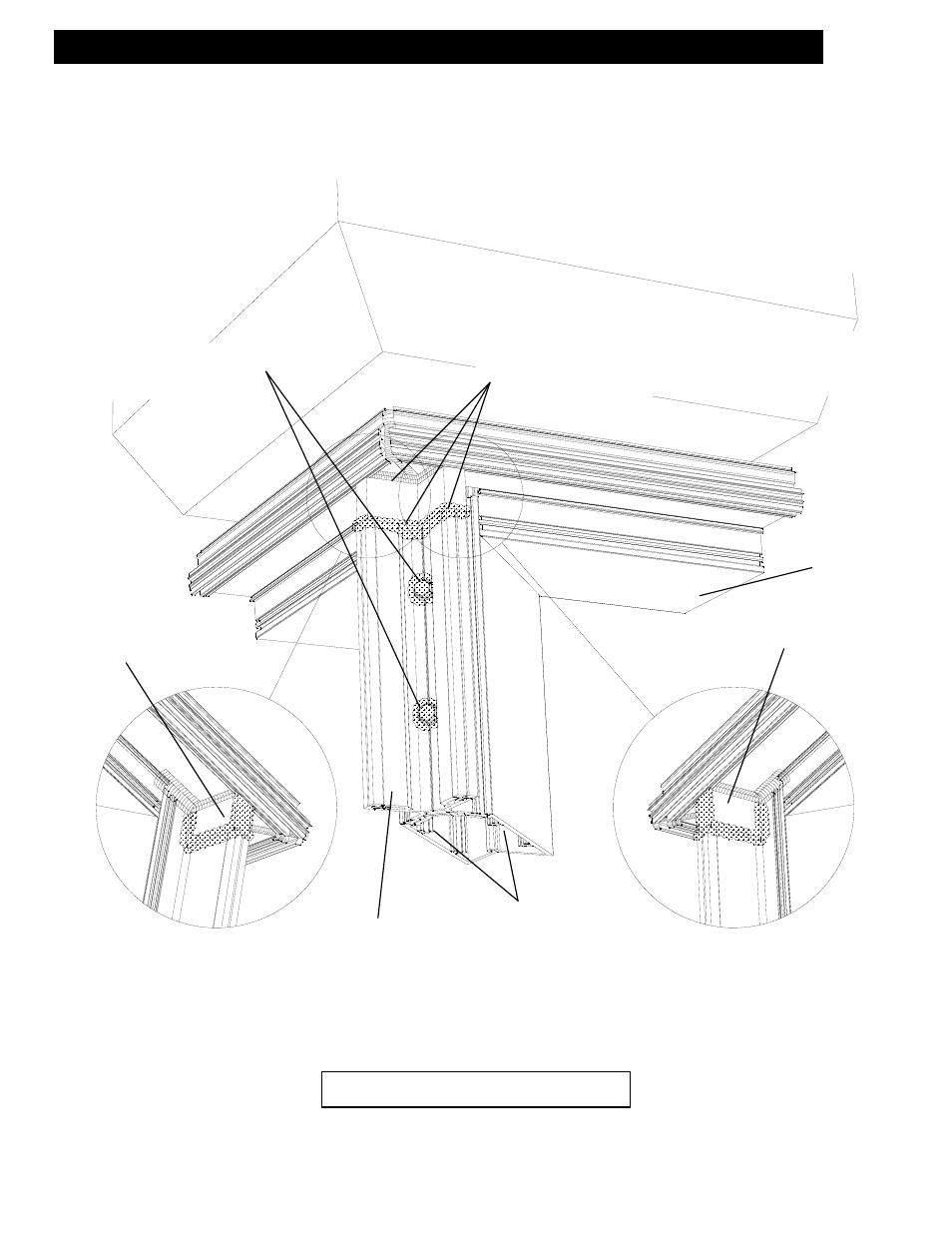

Tool the sealant smooth across the surface of
the joint plugs and on the adapter.
JOINT
PLUG
JOINT
PLUG
CORNER
MULLIONS
CORNER MULLION
ADAPTER
HEAD AT CAPTURED CORNER
Cap seal the fastener
heads with sealant.
CAPTURED
HEAD
