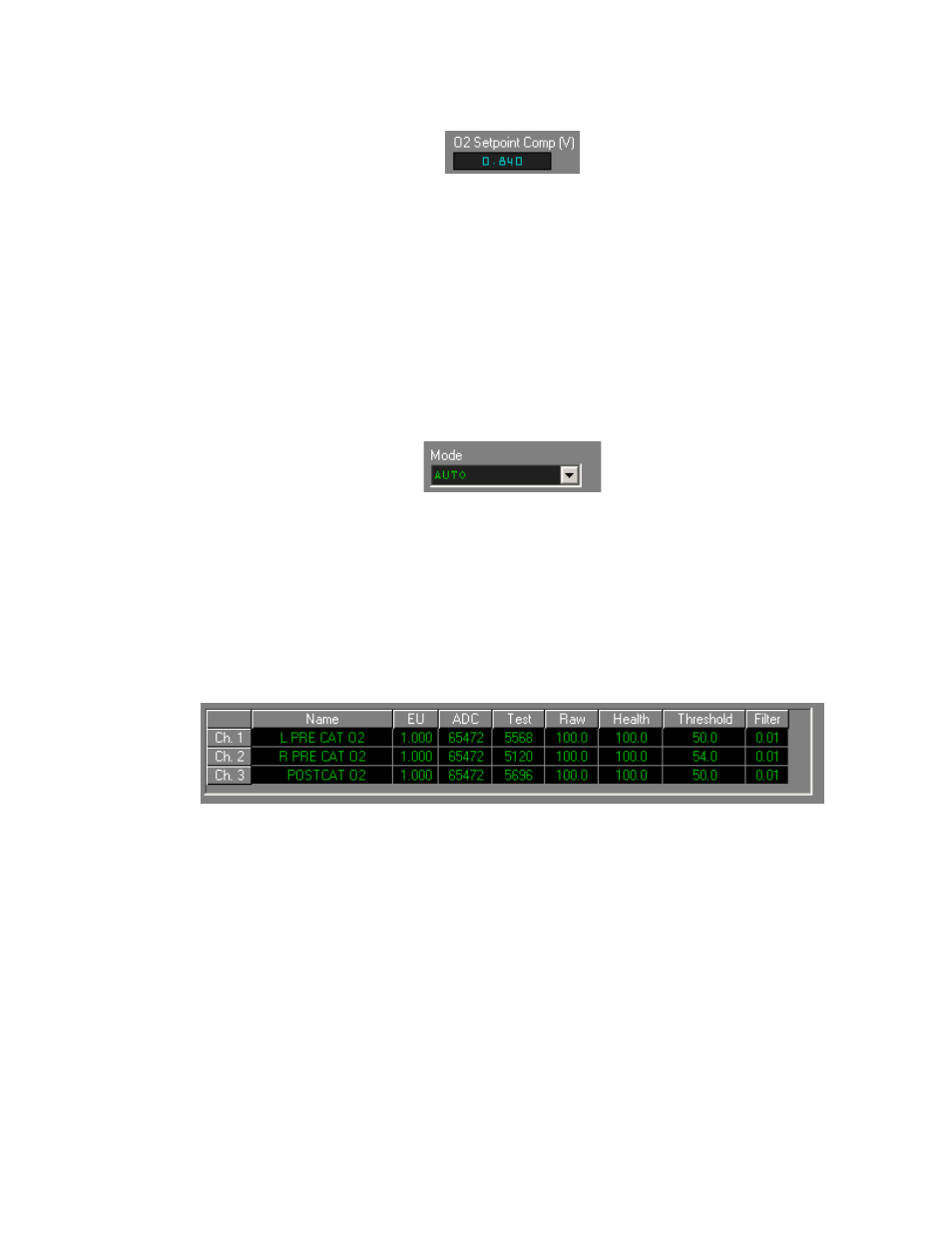

Read Only Blue Display: A parameter (Fig. 4) that can only be read.
Blue Display
Figure 4
Combo Box Display: A parameter (Figure 5) modified by selecting one of the
options displayed when you click on the drop-down button.
NOTE: The parameter number is displayed when you place the mouse over
the label.
Combo Box Display
Figure 5
Grid Display: A matrix of green displays (Fig. 6). Some parameters may be
modified by typing in the value and pressing ENTER (press backspace to delete
the current value).
Grid Display
Figure 6
