11

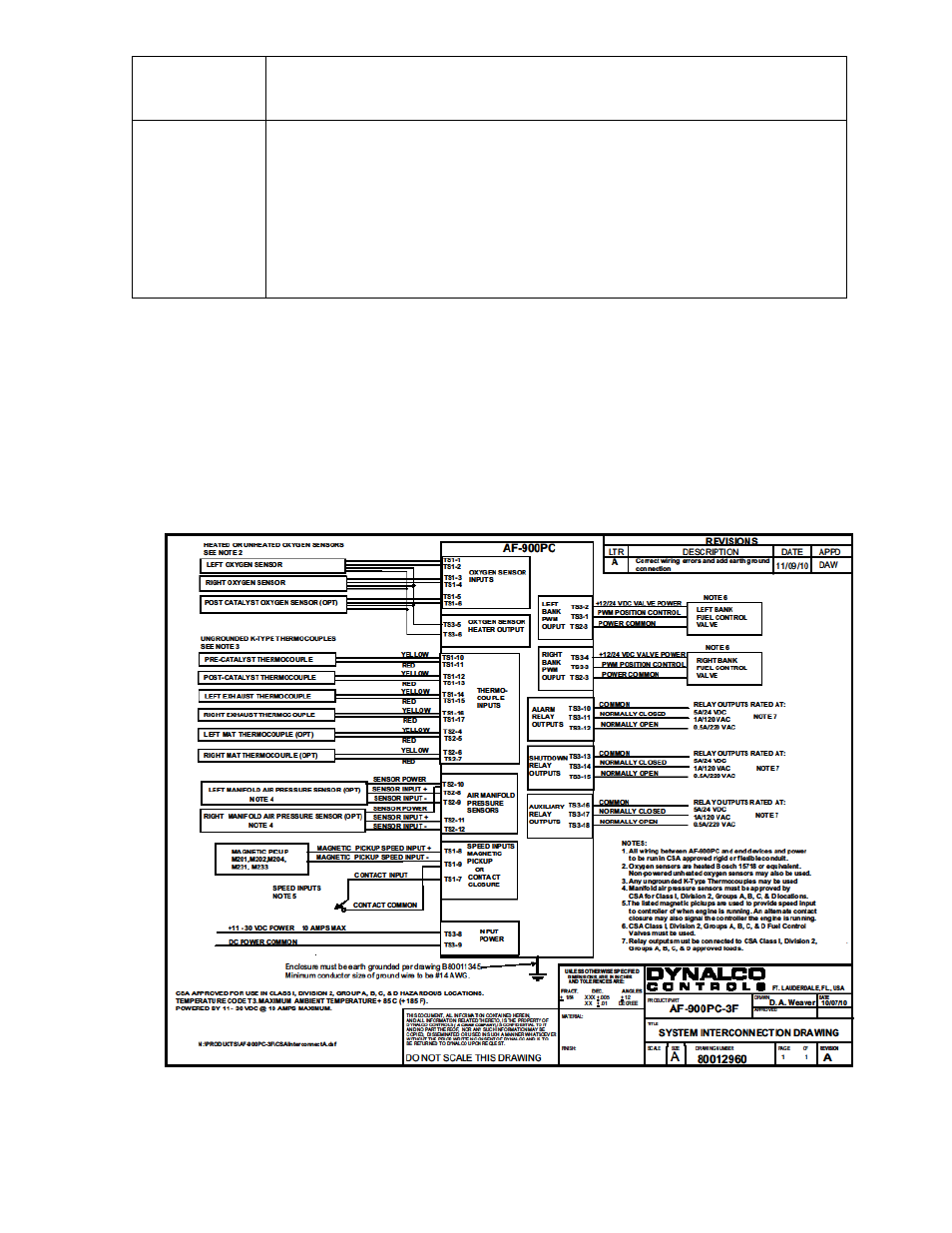

Terminal Strip
TS3
Top Row
Description
NOTE: Relay contacts are shown in the de-energized state.
TS3-10
TS3-11
TS3-12
TS3-13
TS3-14
TS3-15
TS3-16
TS3-17
TS3-18 Alarm Relay Common
Alarm Relay Normally Closed
Alarm Relay Normally Open
Shutdown Relay Common
Shutdown Relay Normally Closed
Shutdown Relay Normally Open
Auxiliary Relay Common
Auxiliary Relay Normally Closed
Auxiliary Relay Normally Open
This terminal strip contains the contacts for the alarm, shutdown, and auxiliary
relays. These contacts are isolated and may be connected to engine shutdown
devices (such as the panel annunciator) or warning devices as required. Any of the
AF900PC thirty-nine trip channels may be programmed to energize one of the
three relays. The SPDT relay contacts are rated @ 5A/24VDC, 1A/120VAC, and
0.5A/220VAC.
