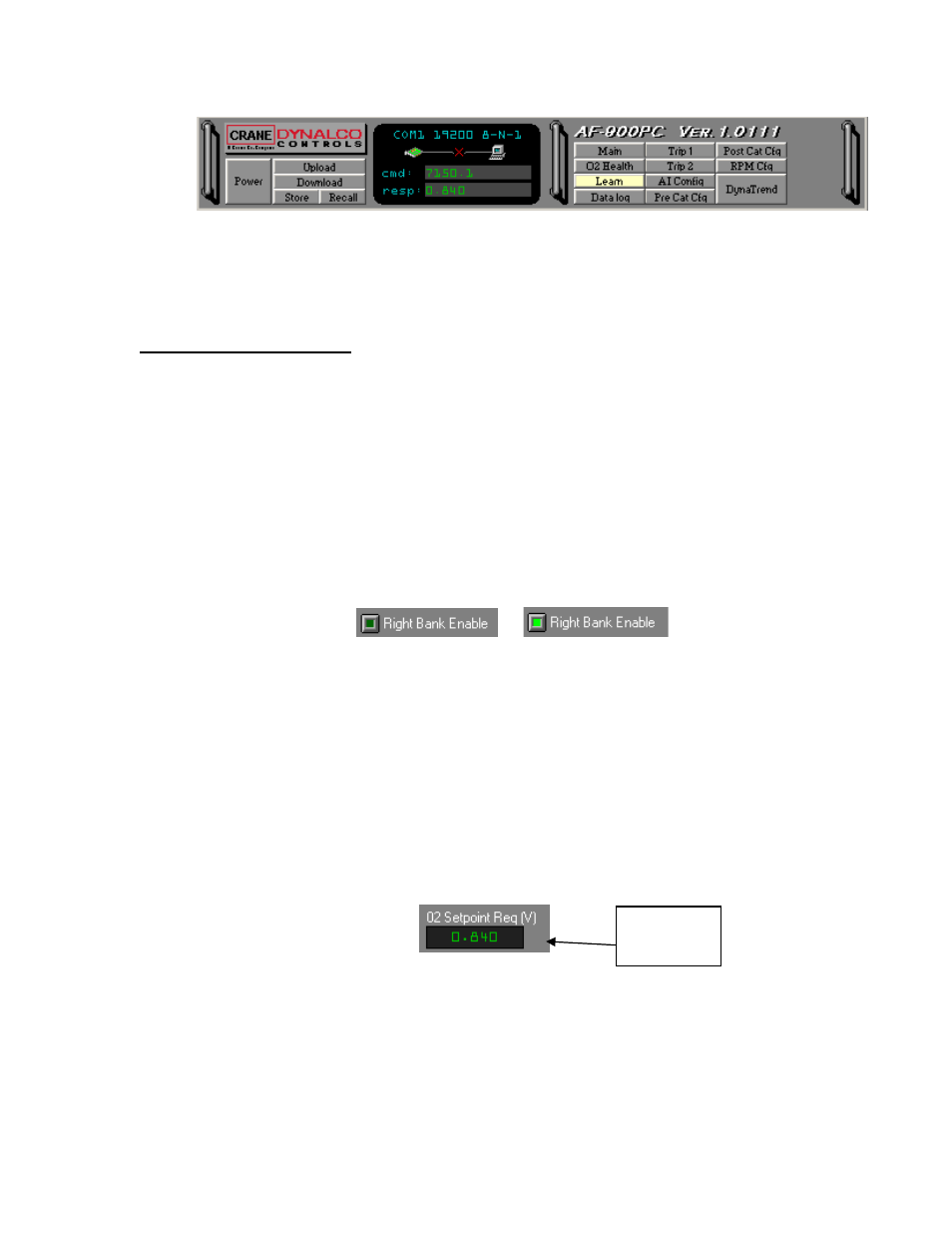

The Control Panel in Fig. B shows an inactive communication by displaying a red
“X” across the communication line.
Control Panel (Disconnected)
Figure 1B
10.2 Screen Description
A yellow highlighted button, as shown in Fig. 1B, displays the current screen you
are in. Within each screen you can display information by using the following
controls:
Toggle Button: Represents 2-state parameters. Place the mouse over the button
to the left of text (Figure 2) to see the current state and click on the button to toggle
the state. The button will be green when enabled, black when disabled.
NOTE: The parameter number is displayed when you place the mouse over
the label.
(Disabled) (Enabled)
Toggle Button
Figure 2
Read/Write Green Display: A parameter (Figure 3) which may be modified by
typing a value and pressing ENTER.
NOTE: The parameter number is displayed when you place the mouse over
the label.
Green Display
Figure 3
Type in value
and press
.
