5-24 ADS 3600 Flow Monitor O&M Manual
Note: When you order the cable, you must order the length required for that
site. The maximum length is 300 ft.
Pin Wire Color
1 Pair 1 Red
2 Pair 1 Black
3 Pair 2 White
4 Pair 2 Black
5 Pair 3 Green
6 Pair 3 Black
Wire Colors in the Center of the Network Interface Box
SER#
Assy 106296 PN 800-106296-00
1 2 3 4 5 6 PIN Wire Color
Pair 1 -- RED
Pair 1 -- BLACK
Pair 2 -- WHITE
Pair 2 -- BLACK
Pair 3 -- GREEN
Pair 3 -- BLACK
REV. VER.
6 5 4 3 2 1
CONNECT WIRE AS SHOWN BELOW

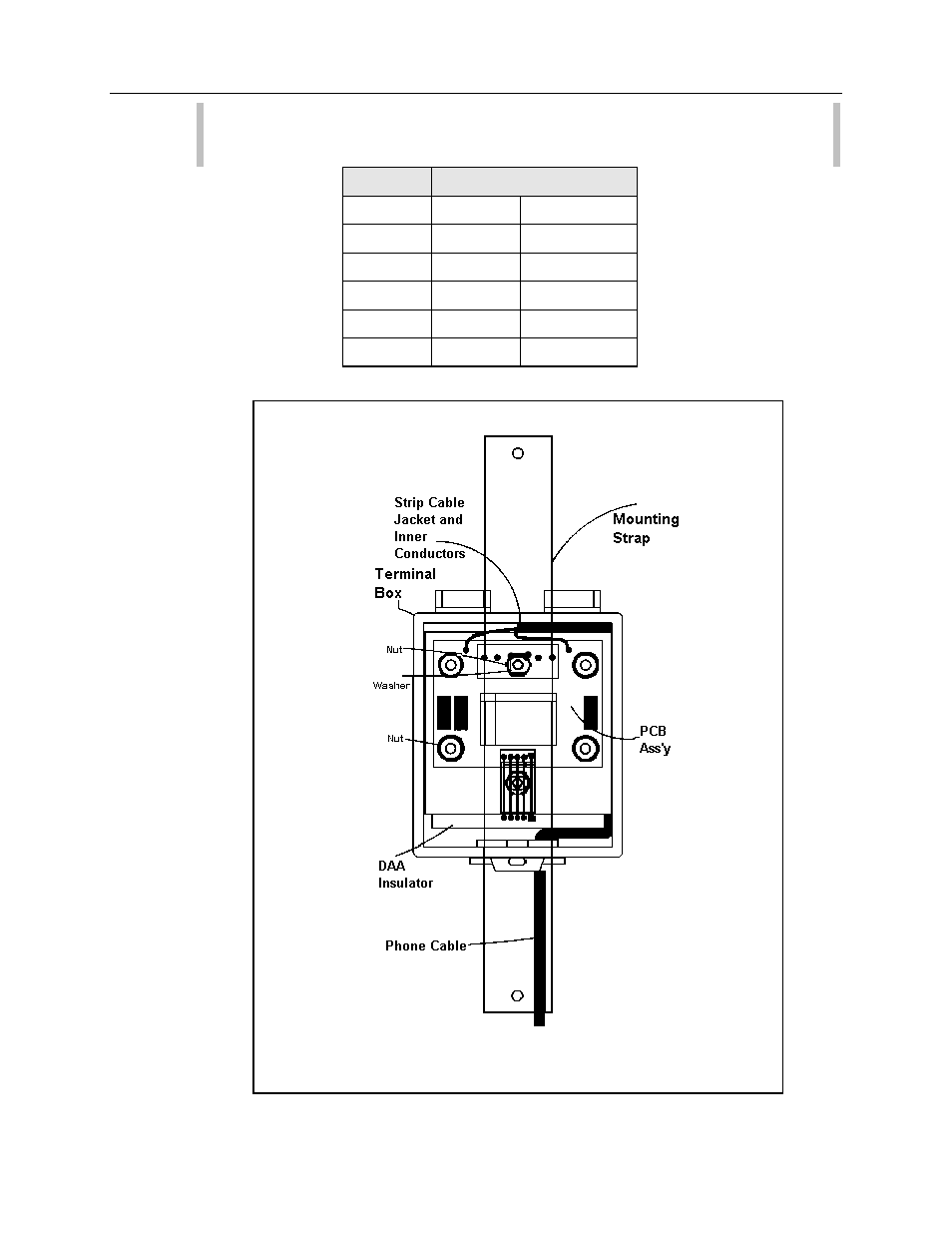

Telephone Interface Box
