5-26 ADS 3600 Flow Monitor O&M Manual
z Secure the outside cover of the lightning protection module by inserting a cable
tie through the slot at the top of the box. Ensure that the network interface
box is closed and tightened.
z If the lightning protection module cable needs to be buried, refer to
“Underground Services and Lines Location” on page 5-3 and to “Pavement
Box and Cable Trench” on page 5-4.
TEST JACK 1 TEST JACK 2
1
1
2
2
TELEPHONE POLE
PVC PIPE
EXISTING
WIRES
RED
RED
RED
GREEN
GREEN
RED
GREEN
GREEN
EXISTING
FIELD
GND CLAMP
MOUNTING SCREW
VER.
ASSY 106296 PN 800-106296-00
REV. SER# 2 3 4 5 1 6
PAIR 1 - RED
PAIR 1 - BLACK
PAIR 2 - WHITE
PAIR 2 - BLACK
PAIR 3 - GREEN
PAIR 3 - BLACK
CONNECT WIRE AS SHOWN BELOW
1
PIN WIRE COLOR
2
3
4
5
6
TERMINAL BOX
MOUNTING STRAP
PCB ASS'Y
PHONE CABLE
DAA INSULATOR
CONNECTIONS

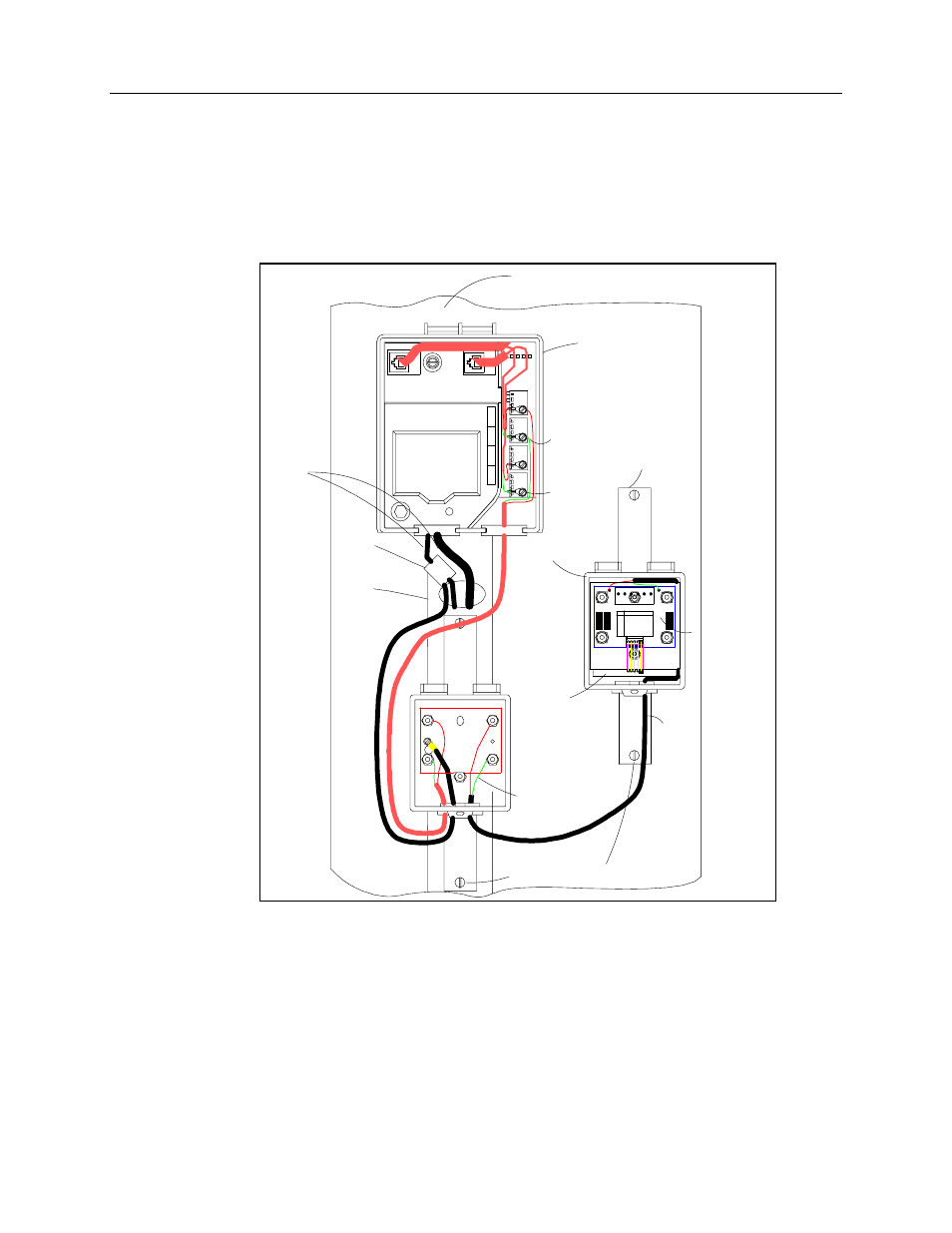

Network Interface Box, Telephone Interface Box, and Lightning Protection Module
