Ring, Sensor, and Special Installations 4-33

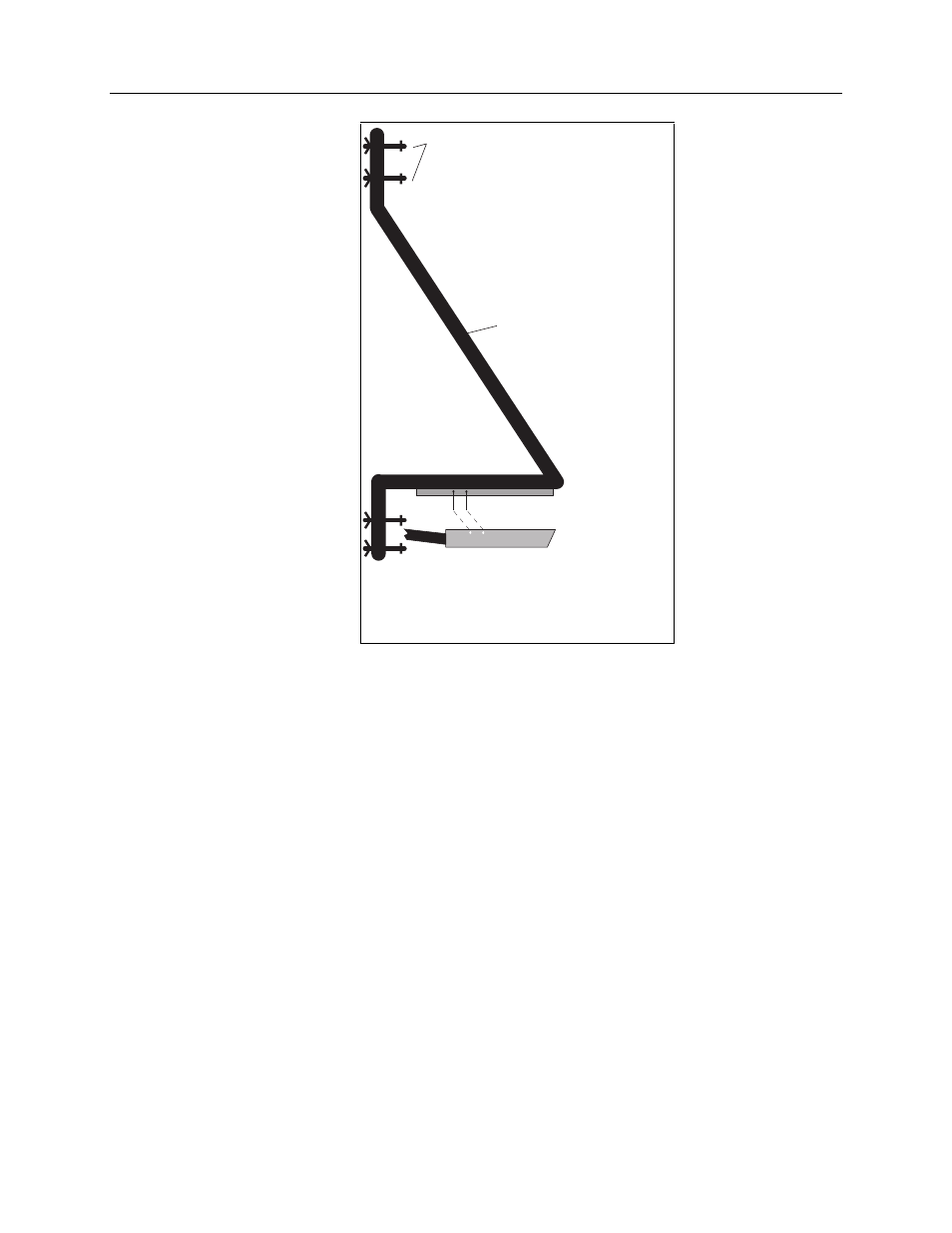

S/C Mount
sensor
Anchor Bolt
93040
Angled Metal Bracket
Surcharge Mount
Installation
l Locate the height at which the ultrasonic portion of the bracket needs to be
installed (determined by location report).
l Press the bracket firmly against the manhole wall.
l Locate the three pre-drilled holes at the top of the bracket.
l Spot mark the middle hole with a drill.
l Remove the bracket.
l Drill and mount the anchor bolt.
l Secure the top bracket to the manhole wall with a washer and 7/16 in. (11 mm)
nut.
l Push up on the bottom portion of the bracket until the ultrasonic portion of the
bracket is level.
l Hold the bracket firmly in place against the manhole wall.
l Locate the three pre-drilled holes on the bottom of bracket.
