Wheatheart X160 Series - Manual (Page 98)

3. A SSEMBLY W HEATHEART - G RAIN A UGERS
X160-85, X160-105, X160-125
98 30875 R0

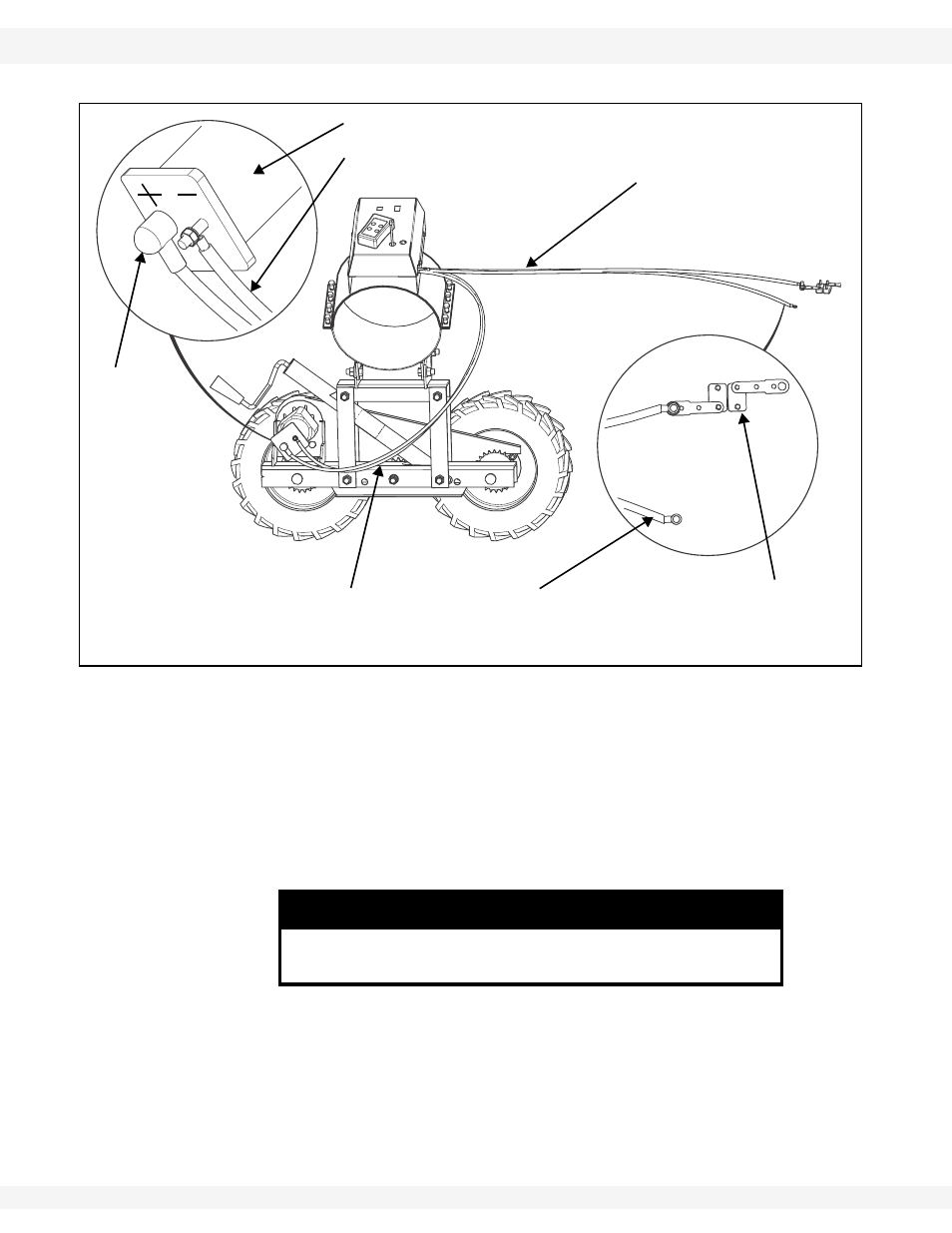

Figure 3.52 Electric Motor Wiring
6. Route the electrical cable over top of the boot, using existing upper hose
catches.
7. Uncoil the longer electrical cable from the receiver box. Identify the positive
and negative wires by referring to Figures 3.52 and 3.53. The positive wire
has a circuit breaker and printing on it.
8. Attach the positive wire directly to the positive terminal on the tractor battery
and the negative wire to the tractor chassis as shown in Figure 3.53. The
negative terminal on the tractor battery should also be grounded to the
chassis. There are 5/16” lugged terminals supplied with the kit.
POSITIVE
WIRE WITH
RED BOOT
CONNECTS TO
POSITIVE MOTOR
TERMINAL.
SHORT ELECTRICAL CABLE
CONNECTS TO ELECTRIC
MOTOR ON POWER SWING.
ELECTRIC MOTOR
NEGATIVE WIRE CONNECTS TO
NEGATIVE MOTOR TERMINAL.
LONG ELECTRICAL CABLE
CONNECTS TO TRACTOR
CHASSIS AND BATTERY.
POSITIVE WIRE WITH
CIRCUIT BREAKER
CONNECTS TO POSITIVE
BATTERY TERMINAL.
NEGATIVE WIRE
CONNECTS TO
TRACTOR CHASSIS.
NOTICE
If these electrical cables are not hooked up properly the
electric controller will be damaged.
