3.5. ASSEMBLE THE LOWER FRAME
1. Fasten the lower reach arms to the axle with four 3/4” x 2” bolts and locknuts
on each side. Tighten securely.
2. Attach the short cross member between the lower reach arms with four
1/2” x 1-1/2” bolts and locknuts on each side. Tighten securely.

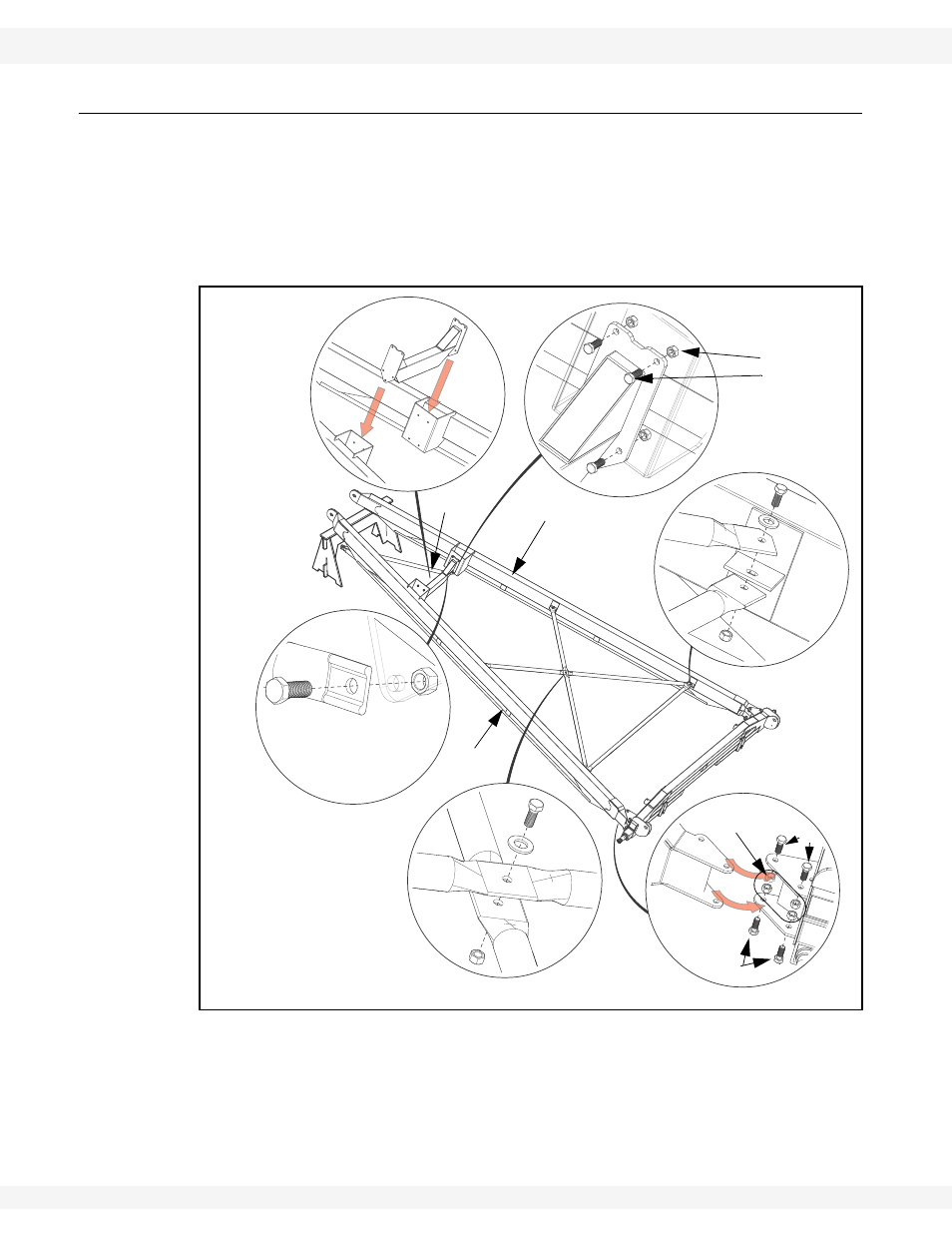

Figure 3.26 Assembling the Lower Frame
3. Install the stabilizer braces on either side of the short cross member with a
single 5/8” x 2” bolt and locknut per side. Leave loose until the other ends of
the stabilizer braces are connected in “Connect the Auger Tube to the
