Wheatheart X160 Series User Manual
Page 97
W
HEATHEART
- G
RAIN
A
UGERS
3. A
SSEMBLY
X160-85, X160-105, X160-125
30875 R0
97

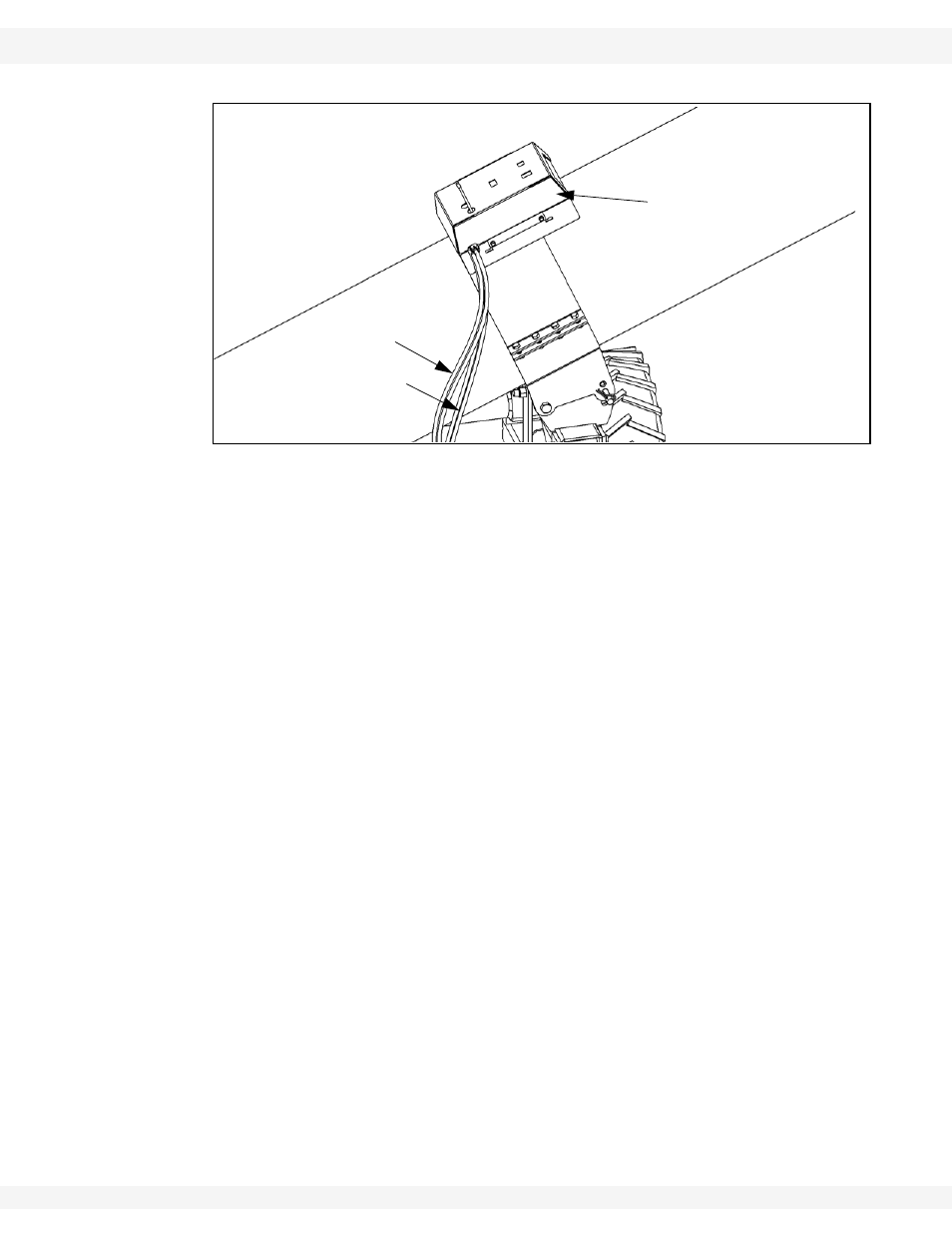

Figure 3.51 Receiver Box
4. The electrical cables are pre-installed to the receiver box. Uncoil the shorter,
4’ electrical cable and identify the positive and negative wires by referring to
Figures 3.52 and 3.53. The positive wire has a red boot and printing on it.
5. Attach the wires to the motor terminals on the Power Swing as shown in
Figures 3.52 and 3.53. The positive wire with the red boot connects to the
positive (+) terminal on the electric motor. To connect:
a. Unscrew the nut on the motor terminal.
b. Place the wire on, and then replace the nut.
c. Tighten securely.
d. Repeat the same steps for the negative wire and terminal.
SHORT CABLE
LONG CABLE
RECEIVER BOX
