W HEATHEART - G RAIN A UGERS 3. A SSEMBLY
X160-85, X160-105, X160-125
30875 R0 93
3.15. POWER SWING ASSEMBLY

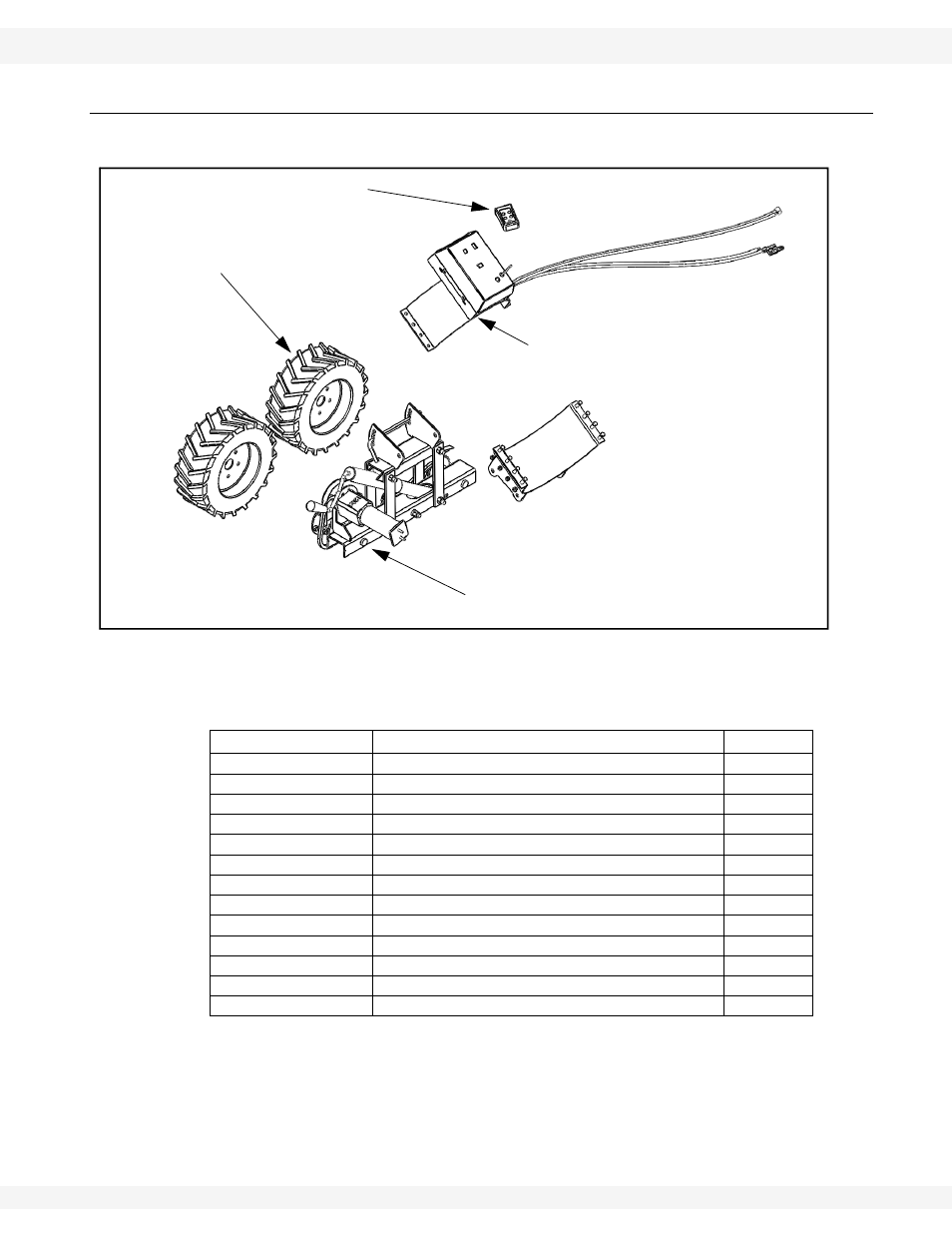

Figure 3.47 Electric Power Swing Components
TRANSMITTER
WHEEL AND TIRE ASSEMBLY
RECEIVER CLAMP ASSEMBLY
LOWER CLAMP ASSEMBLY
POWER SWING ASSEMBLY
Table 3.18 Electric Power Swing Components
Part Number Description Quantity
---- Power swing assembly 1
---- Wheel and tire assembly 2
---- Lower clamp assembly 1
---- Receiver clamp assembly (top clamp) 1
---- Transmitter 1
19590 5/8” x 1-1/2” bolts 4
19600 5/8” locknuts 4
18096 5/8” flat washers 2
19273 1/2” x 1-1/2” wheel bolts 10
18698 7/16” x 1-1/4” bolts 8
19542 7/16” x 1” bolts 2
19598 7/16” locknuts 10
--- 5/16” lug terminals 2
