5. Connect hydraulic hoses, ensure connections are tight. Check for leaks,
binding, flattening, kinks, or wear.
6. Extend the wheel axles:
a. Ensure that the auger is on level ground before attempting to extend or
retract the axle extensions. Auger must be attached to tractor at all
times.
b. Using the jack supplied, insert it into one of the jack lugs located on one
end of the axle (Figure 5.1). See Figure A for jacking point. Jack must be
secured to jack lug using pin (attached to jack).

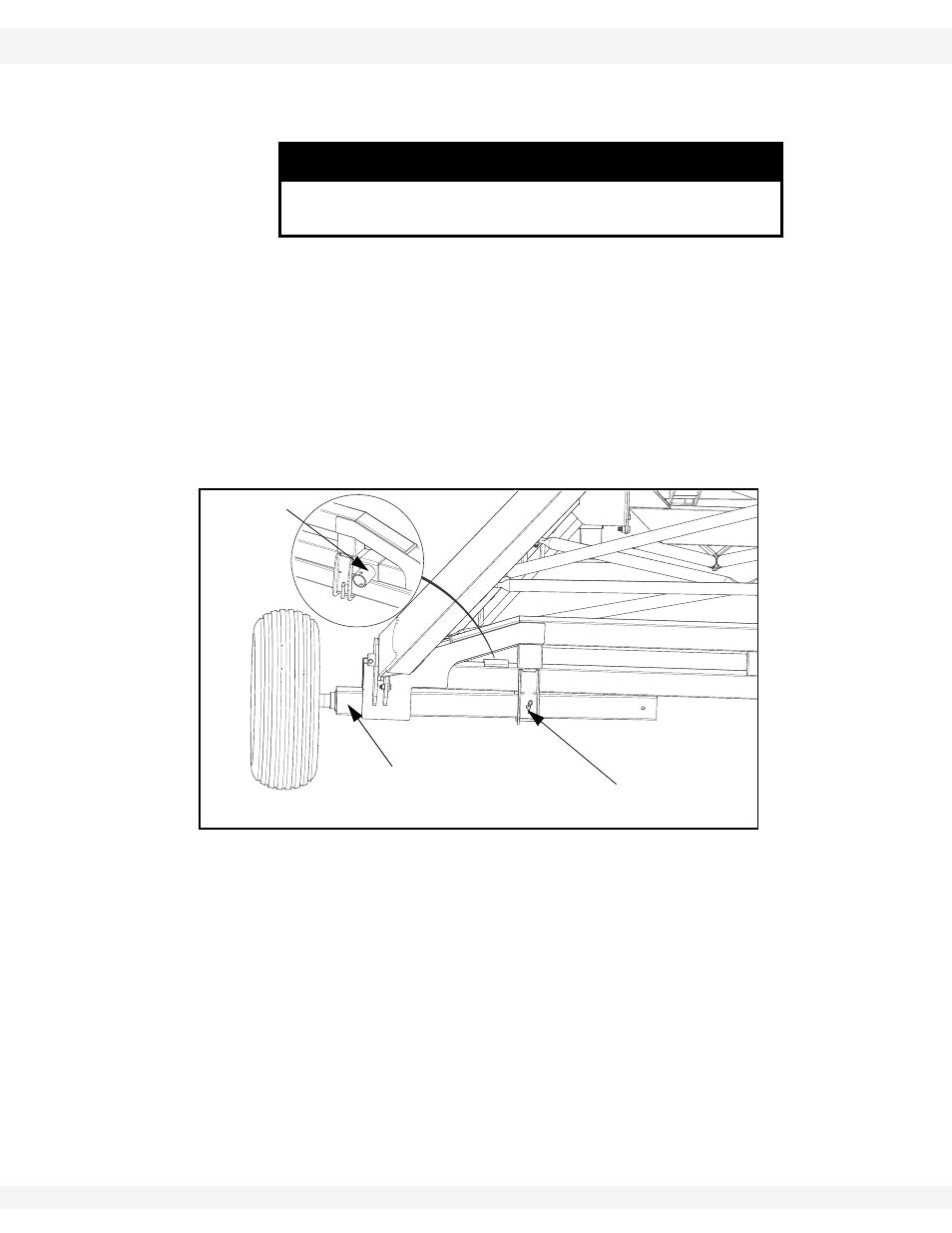

Figure 5.1 Jack Lug, Axle, and Axle Pin (Axle Retracted)
c. Raise one side at a time. Ensure that the jack is vertical. Turn the crank to
start raising the jack. Raise one side of the axle until the tire clears the
ground.
NOTICE
Replacement hose and hose ends must have a minimum
strength of 2500 psi (17200 kPa) working pressure.
AXLE
AXLE PIN
JACK LUG
