Wheatheart X160 Series - Manual (Page 54)

3. A SSEMBLY W HEATHEART - G RAIN A UGERS
X160-85, X160-105, X160-125
54 30875 R0
3.2.9. I
NSTALL THE
D
ISCHARGE
S
POUT
D ISCHARGE S POUT
1. Align the discharge spout over the opening in the upper tube.
2. Attach the discharge spout with two 5/8” x 3” GR5 bolts [17745] and 5/8”
locknuts [19600] on each side.

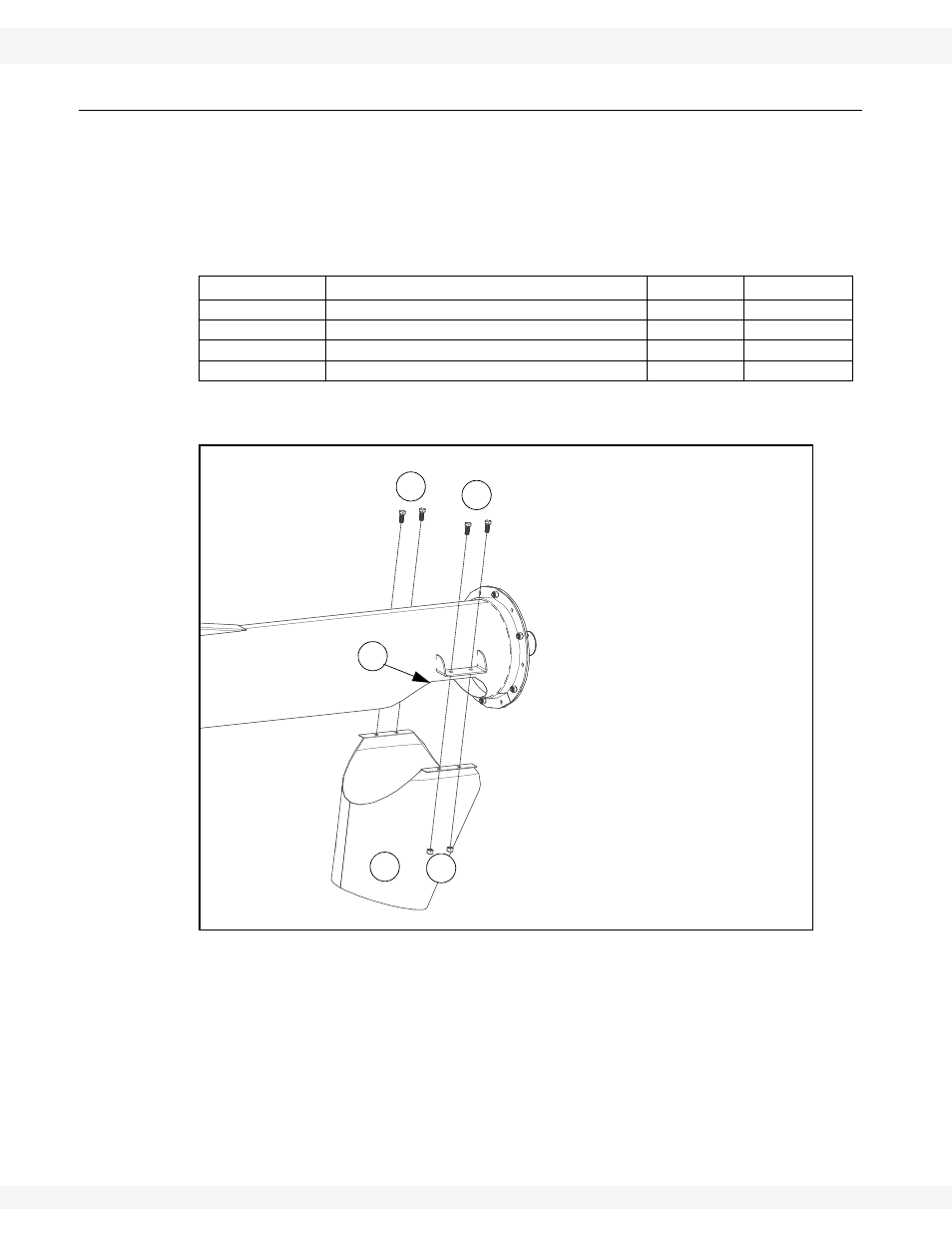

Figure 3.16 Installing the Discharge Spout
Table 3.10 Install the Boot Tow Bar
Diagram # Description Part # Quantity
1 Discharge spout 53090 1
2 Opening in upper tube n/a 1
3 5/8” x 3” GR5 bolts 17745 1
4 5/8” locknuts 19600 1
1
2
3
3
4
