d. Remove the axle pin from the axle and slide the axle outwards until the
second set of holes line up (Figure 5.2). Reinsert the axle pin and secure
with snap pin. Lower the jack.

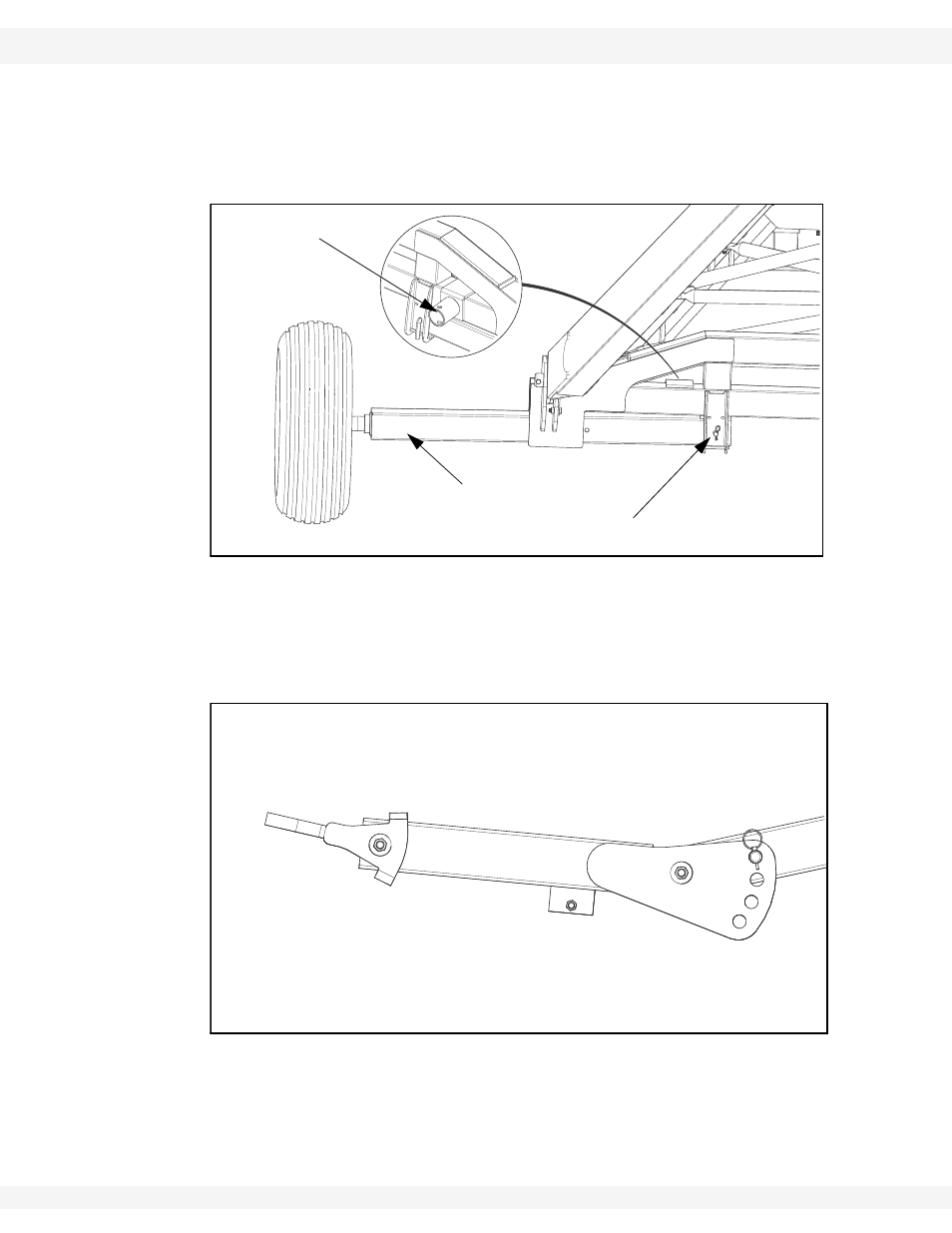

Figure 5.2 Extend Axle and Insert Axle Pin
e. Repeat the process on the other side of the axle to extend the other side.
7. Using the jack to support the boot and take pressure off of the hitch adjust,
place hitch adjust in operating position by moving the hitch adjust pin to the
top adjustment hole (See Figure 5.3).
Figure 5.3 Hitch Adjust in Operating Position
8. When the hitch adjustment is complete, move the jack into storage position.
9. Raise the main auger tube, if required:
a. Check that valve on hose to lift cylinder is open.
b. Raise auger to the desired height.
EXTEND AXLE
INSERT AXLE PIN
JACK LUG
