3. A SSEMBLY W HEATHEART - G RAIN A UGERS
X160-85, X160-105, X160-125
84 30875 R0
1. Secure the transition to the swing tube with twelve 5/8” x 1-1/2” bolts and 5/8”
locknuts.

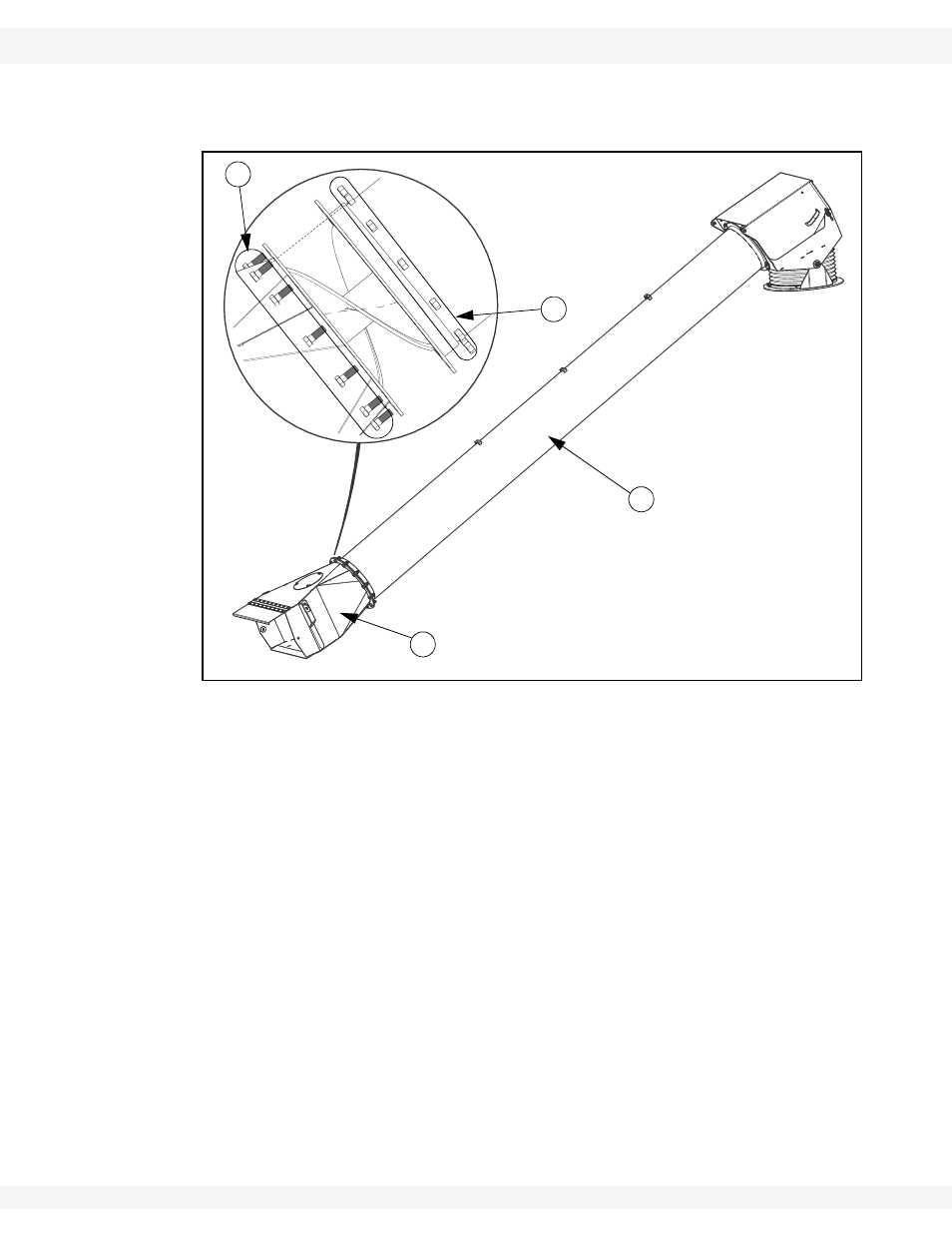

Figure 3.38 Installing the Transition to the Swing Tube
2. Thoroughly grease two 1-3/4” flat washers, then place them fully onto the
end of the swing flight shaft.
3. Place the bushing support onto the swing flight shaft and secure it in place
with two 3/8” x 1” bolts, 3/8” flat washers, and locknuts.
4. Insert a woodruff key into the swing flight shaft, then slide the U-joint onto the
swing flight shaft.
5. Secure the U-joint to the swing flight with a 3/8” set screw, a 5/16” x 2-3/4”
bolt, and a locknut.
6. Slide the transition flight shaft into the u-joint.
3
1
4
2
